(55.510.030) - CAB MAIN WIRE HARNESS

Запчасти Case CX145D SR LC W/BLADE (55.510.030) - CAB MAIN WIRE HARNESS (55) - ELECTRICAL SYSTEMS

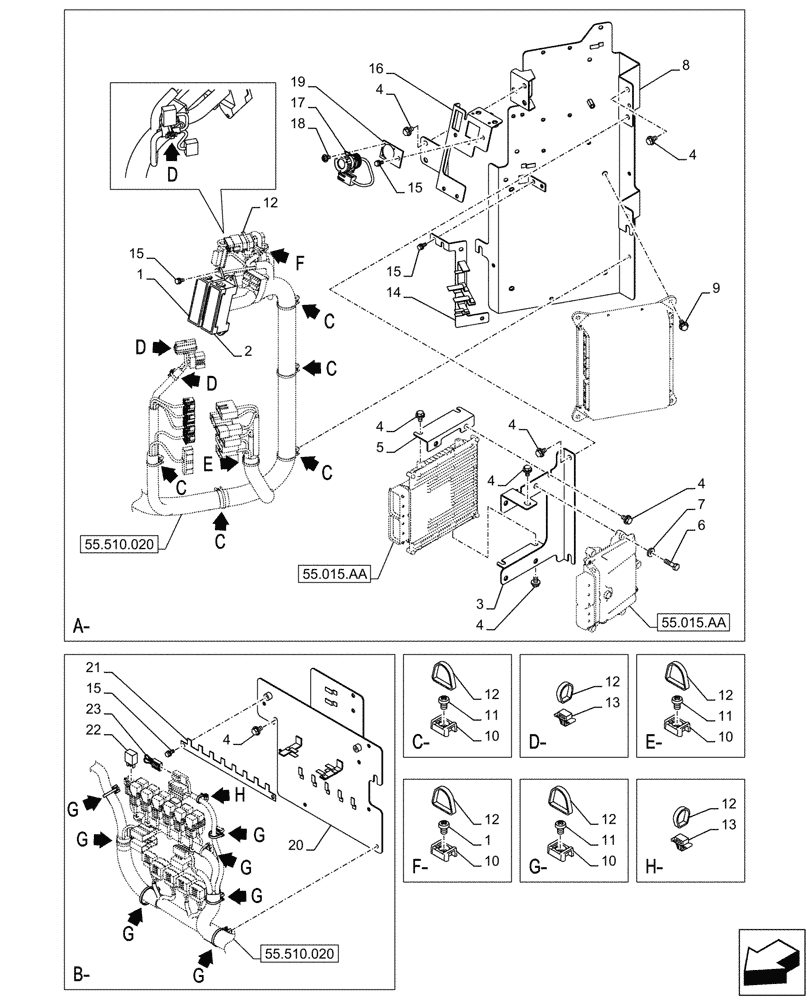

Схема запчастей Case CX145D SR LC W/BLADE - (55.510.030) - CAB MAIN WIRE HARNESS (55) - ELECTRICAL SYSTEMS
55.015.aa
15
10
1
4
2
4
4
9
6
23
10
12
13
12
4
15
15
20
19
10
17
4
7
22
21
10
11
3
12
18
5
12
11
11
12
4
1
14
4
12
15
16
8
12
4
13
55.510.020
55.510.020
55.015.aa
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHP32271

DECAL

1шт.

Parts is included in Cab Hrness Assembly PN KHR45722

1шт.

2

KHP32280

DECAL

1шт.

Parts is included in Cab Hrness Assembly PN KHR45722

1шт.

3

KHR46450

BRACKET

1шт.

4

166345A1

BOLT

M8 x 16mm

17шт.

5

KHR46460

BRACKET

1шт.

6

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

4шт.

7

153081A1

WASHER

4шт.

8

KHR46470

BRACKET

1шт.

9

166350A1

BOLT

M8 x 20mm

4шт.

10

150860A1

COLLAR

14шт.

11

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

14шт.

12

150496A1

MOUNTING CLIP

250mm

19шт.

13

KHR10220

MOUNTING CLIP

4шт.

14

KHR46480

BRACKET

1шт.

15

159602A1

BOLT,Sems, Hex, M6 x 16mm

9шт.

16

KHR46490

BRACKET

1шт.

17

KHR19970

WIRE HARNESS

1шт.

18

162061A1

SCREW,Pan Hd, M3 x 8mm

4шт.

19

KHR28580

BRACKET, SUPPORTING

1шт.

20

KHR50440

BRACKET

1шт.

21

KHR46520

BRACKET

1шт.

22

KHR3802

RELAY

24V

13шт.

23

KHR49990

WIRE HARNESS

1шт.
