(55.425.050) - VAR - 461865 - PRESSURE SENSOR, HAMMER CIRCUIT, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX145D SR LC W/BLADE (55.425.050) - VAR - 461865 - PRESSURE SENSOR, HAMMER CIRCUIT, W/ ELECTRICAL PROPORTIONAL CONTROL (55) - ELECTRICAL SYSTEMS

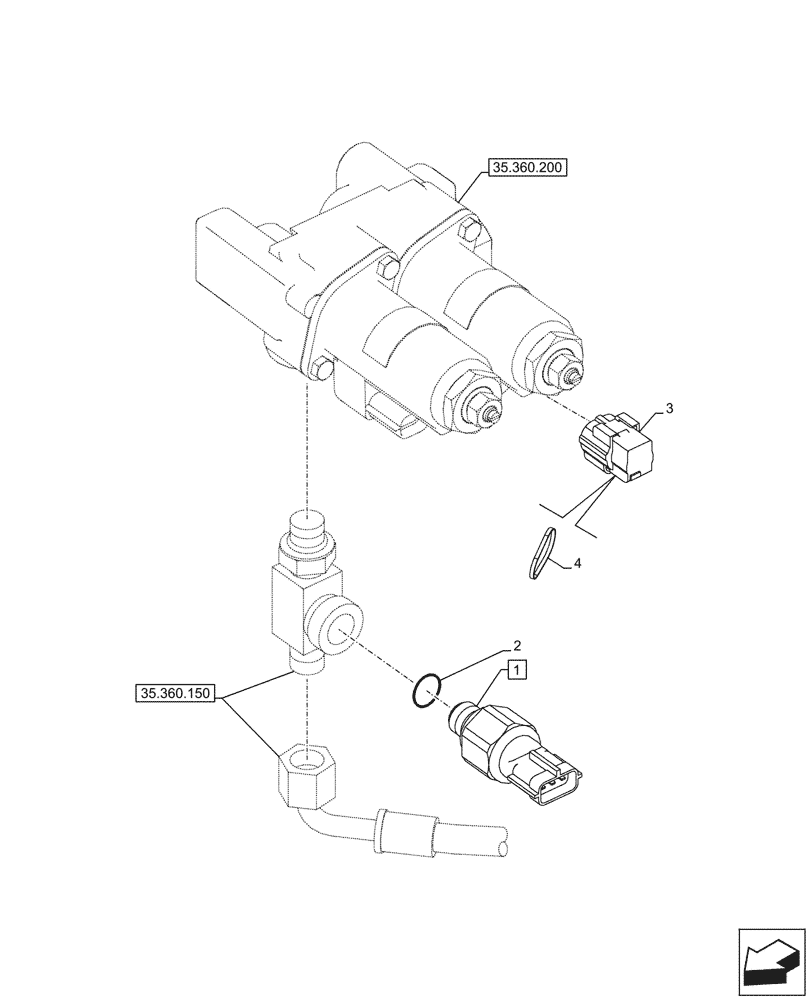

Схема запчастей Case CX145D SR LC W/BLADE - (55.425.050) - VAR - 461865 - PRESSURE SENSOR, HAMMER CIRCUIT, W/ ELECTRICAL PROPORTIONAL CONTROL (55) - ELECTRICAL SYSTEMS
35.360.200
4
2
1
3
35.360.150
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHR26940

SENSOR

ASSY, Pressure Sensore 5Mpa, Incl 2

1шт.

2

150960A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

3

KHR45330

ELEC CONNECTOR

1шт.

4

150496A1

MOUNTING CLIP

1шт.

Выбрано товаров: 4
