(55.408.030) - VAR - 481064 - PRESSURE SWITCH, BOOM, SAFETY VALVE

Запчасти Case CX145D SR LC W/BLADE (55.408.030) - VAR - 481064 - PRESSURE SWITCH, BOOM, SAFETY VALVE (55) - ELECTRICAL SYSTEMS

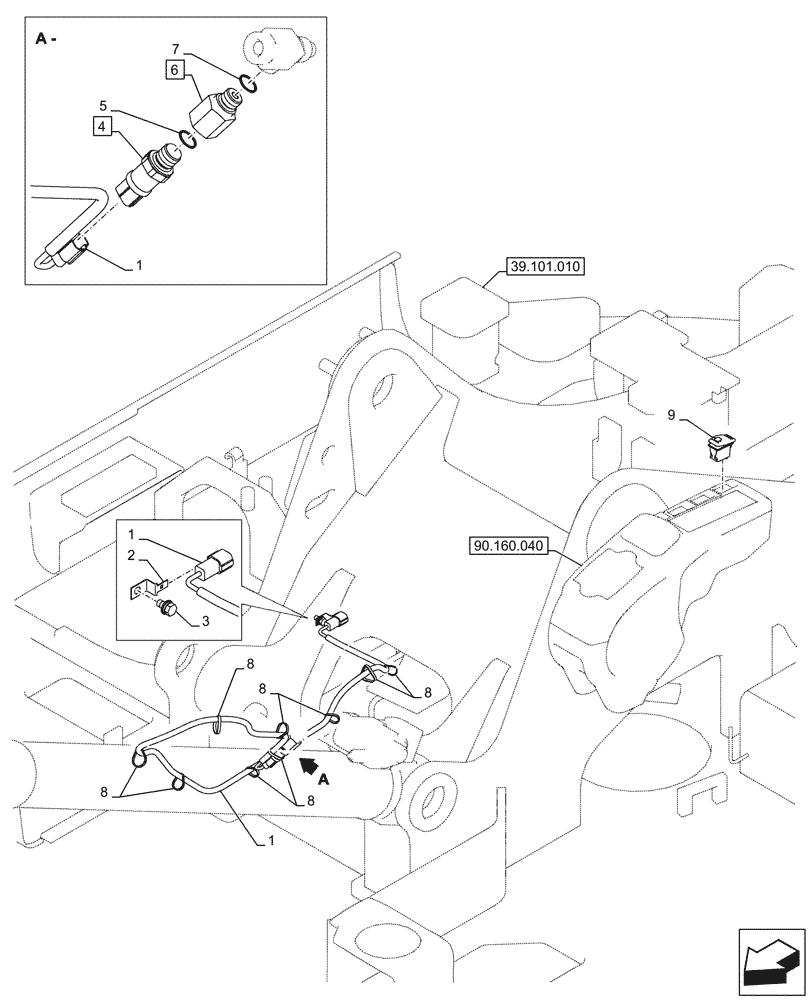

Схема запчастей Case CX145D SR LC W/BLADE - (55.408.030) - VAR - 481064 - PRESSURE SWITCH, BOOM, SAFETY VALVE (55) - ELECTRICAL SYSTEMS
39.101.010
8
1
1
4
1
3
9
2
6
8
7
8
8
5
8
90.160.040
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHR51150

WIRE HARNESS

1шт.

2

158962A1

CLIP

1шт.

3

167518A1

BOLT

M8 x 16mm

1шт.

4

KHR41950

SENSOR

ASSY, 50MPa x M18 x 1.5, Incl 5

1шт.

5

UCP0101

O-RING

1шт.

6

KHJ18190

STUD

ASSY, G3/8" x M18, Incl 7

1шт.

7

150031A1

O-RING,10mm ID x 24mm OD

1шт.

8

150496A1

MOUNTING CLIP

250mm

9шт.

9

KHR15490

TOGGLE SWITCH,Overload Warning

1шт.
