(55.404.040) - VAR - 488038 - REAR VIEW CAMERA, SIDE CAMERA, LIGHT

Запчасти Case CX145D SR LC W/BLADE (55.404.040) - VAR - 488038 - REAR VIEW CAMERA, SIDE CAMERA, LIGHT (55) - ELECTRICAL SYSTEMS

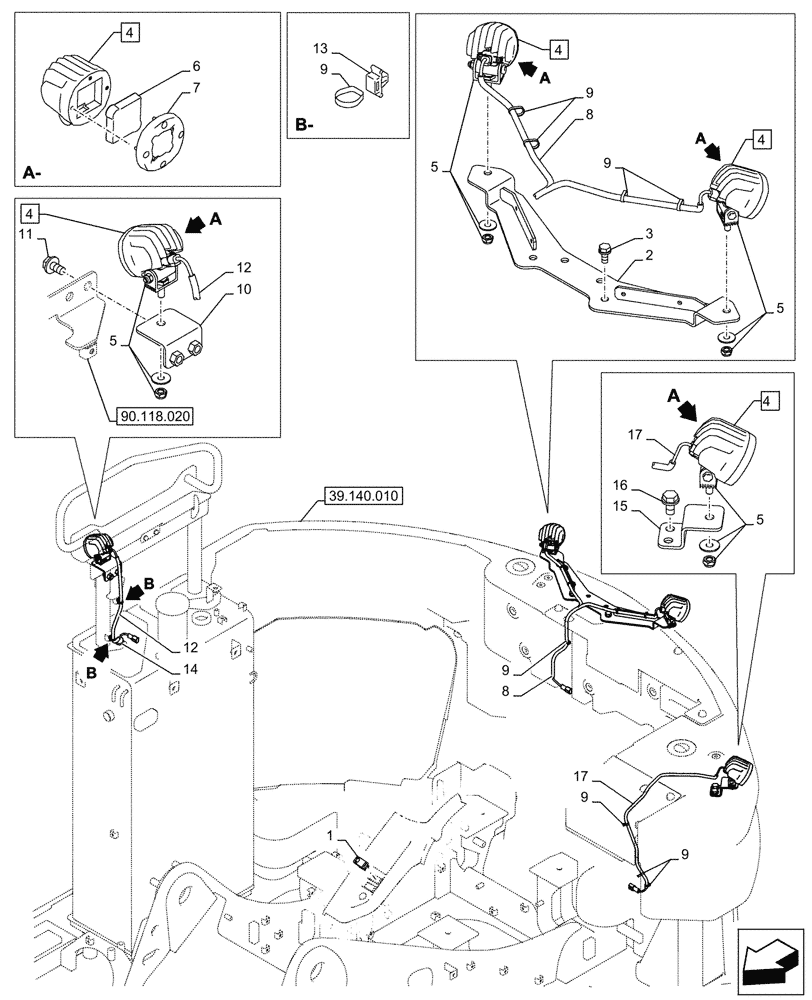

Схема запчастей Case CX145D SR LC W/BLADE - (55.404.040) - VAR - 488038 - REAR VIEW CAMERA, SIDE CAMERA, LIGHT (55) - ELECTRICAL SYSTEMS
39.140.010
11
4
16
10
2
5
12
9
8
5
13
7
4
14
9
6
4
8
4
9
5
9
9
17
15
9
5
3
4
1
12
17
90.118.020
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHR20490

MECHANICAL SWITCH

Dome Lamp

1шт.

2

KHR49030

BRACKET

1шт.

3

166052A1

BOLT

M10 x 25mm

2шт.

4

KHR37950

WORK LAMP

ASSY, Led, Incl 5 - 7

4шт.

5

KHR37960

BRACKET

4шт.

6

KHR37970

LENS

4шт.

7

KHR37980

COVER

4шт.

8

KRR22501

WIRE HARNESS

1шт.

9

150496A1

MOUNTING CLIP

250mm

10шт.

10

KMR13900

BRACKET

1шт.

11

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

12

KHR50900

WIRE HARNESS

1шт.

13

KHR10220

MOUNTING CLIP

2шт.

14

167795A1

CAP

1шт.

15

KHR49040

BRACKET

1шт.

16

105R012Y025R

BOLT

M12 x 25mm

2шт.

17

KHR47550

WIRE HARNESS

1шт.
