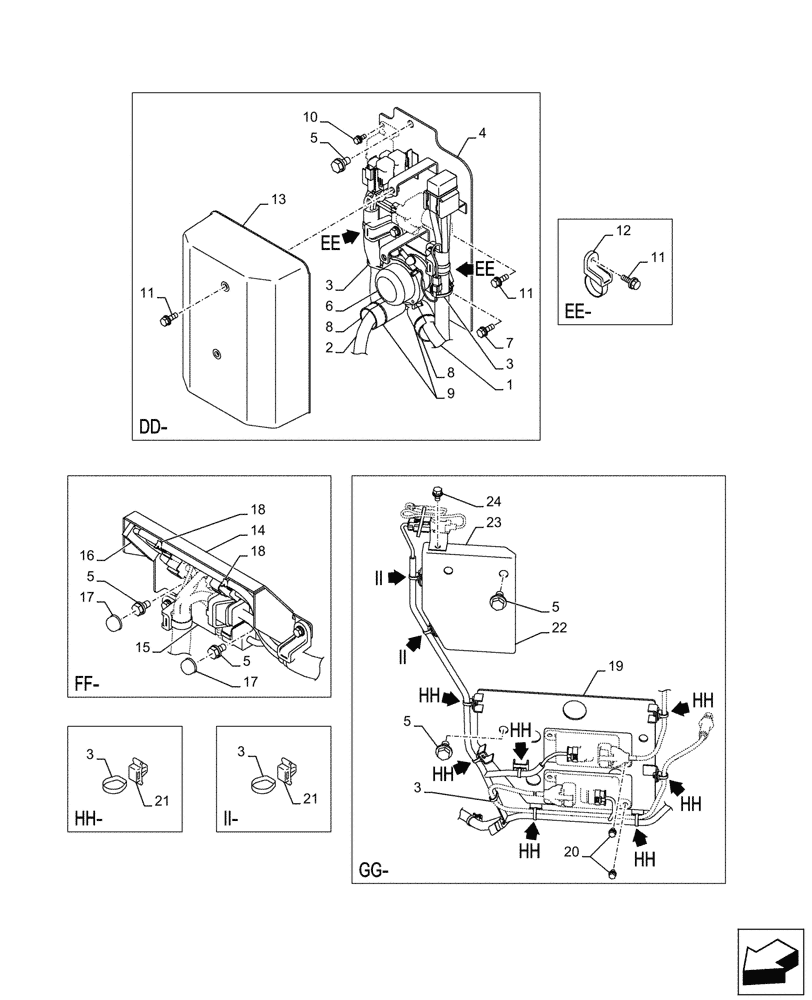

Запчасти Case CX145D SR LC W/BLADE (55.100.050) - MAIN, WIRE HARNESS (55) - ELECTRICAL SYSTEMS

1

KHR50910

POS BATTERY CABLE

1шт.

2

KHR51120

POS BATTERY CABLE

1шт.

3

150496A1

MOUNTING CLIP

250mm

1шт.

4

KRR24810

BRACKET

1шт.

5

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

M12 x 25mm

8шт.

6

159897A1

RELAY

1шт.

7

KHR2309

BOLT,Spcl

M8 x 30mm

2шт.

8

KHR42030

CAP

2шт.

9

150067A1

MOUNTING CLIP

150mm

2шт.

10

159602A1

BOLT,Sems, Hex, M6 x 16mm

M6 x 16mm

2шт.

11

KHJ1215

BOLT,Spcl

M8 x 25mm

6шт.

12

KHR2581

CLAMP

M8

2шт.

13

KHR39190

COVER

1шт.

14

KMR14410

BRACKET

1шт.

15

KNB13950

SEAL

1шт.

16

KMR14480

SEAL

1шт.

17

159489A1

CAP

2шт.

18

KHR2787

CLAMP

2шт.

19

KMR14460

BRACKET

1шт.

20

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

M6 x 12mm

4шт.

21

KHR10220

MOUNTING CLIP

9шт.

22

KMR14470

BRACKET

1шт.

23

KHR37570

CLIP

1шт.

24

167518A1

BOLT

M8 x 16mm

1шт.
