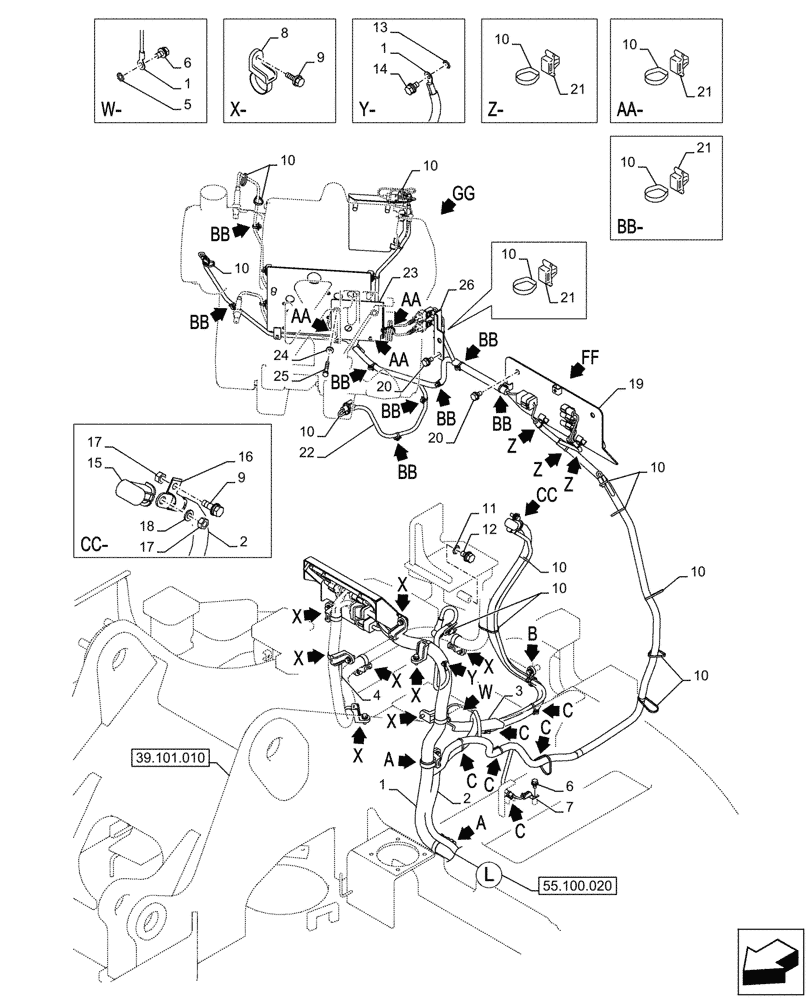

Запчасти Case CX145D SR LC W/BLADE (55.100.040) - MAIN, WIRE HARNESS (55) - ELECTRICAL SYSTEMS

1

KMR14100

WIRE HARNESS

1шт.

2

KHR50910

POS BATTERY CABLE

1шт.

3

164689A1

GROMMET

L=230mm

1шт.

4

KEJ0474

FLEXIBLE SHEATH

L=110mm

1шт.

5

893-11008

LOCK WASHER,Ext Tooth, M8

1шт.

6

167518A1

BOLT

M8 x 16mm

2шт.

7

158962A1

CLIP

1шт.

8

KHR2581

CLAMP

M8

8шт.

9

KHJ1215

BOLT,Spcl

M8 x 25mm

9шт.

10

150496A1

MOUNTING CLIP

250mm

29шт.

11

893-11010

LOCK WASHER,Ext Tooth, M10

1шт.

12

KHJ2298

BOLT,Spcl

M10 x 25mm

1шт.

13

893-11006

LOCK WASHER,Ext Tooth, M6

1шт.

14

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

M6 x 12mm

1шт.

15

KHR4114

PROTECTOR

1шт.

16

162150A1

CLAMP

1шт.

17

162R008VR

NUT

M8

2шт.

18

183-108VR

SPRING WASHER

1шт.

19

KMR14420

BRACKET

1шт.

20

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

M12 x 25mm

4шт.

21

KHR10220

MOUNTING CLIP

15шт.

22

KMR14430

WIRE HARNESS

1шт.

23

KMR14440

BRACKET

1шт.

24

153081A1

WASHER

2шт.

25

827-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 10.9

M8 x 50mm

2шт.

26

KMR14450

BRACKET

1шт.
