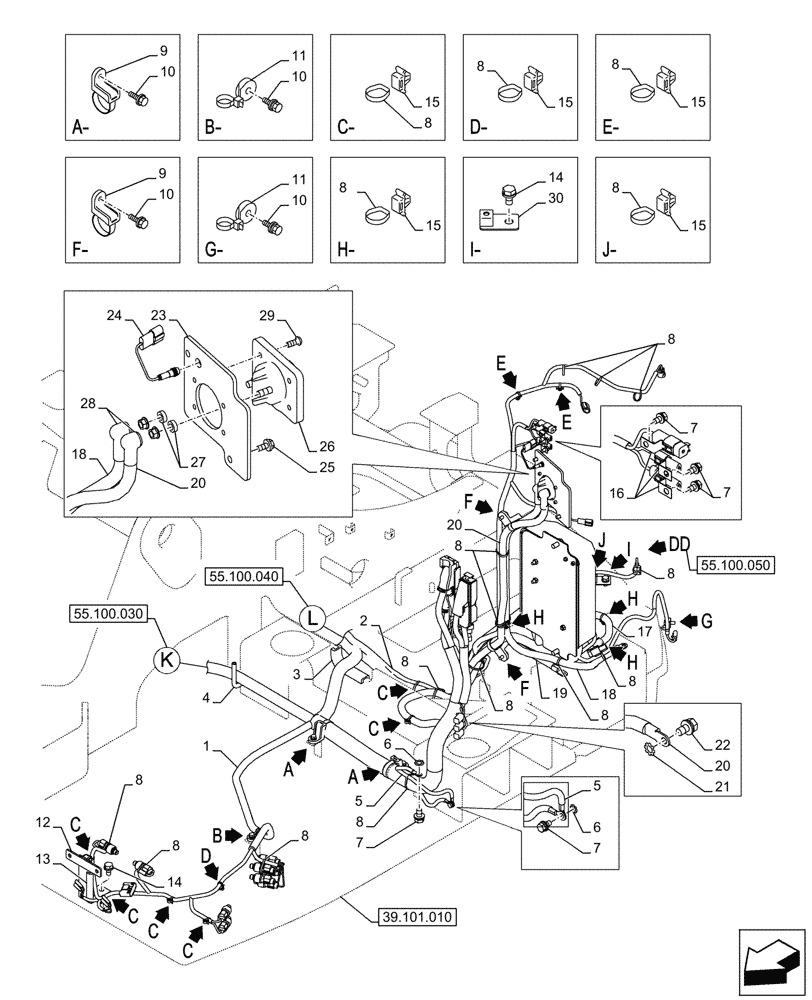

Запчасти Case CX145D SR LC W/BLADE (55.100.020) - MAIN, WIRE HARNESS (55) - ELECTRICAL SYSTEMS

1

KMR14100

WIRE HARNESS

1шт.

2

KHR50910

POS BATTERY CABLE

1шт.

3

163249A1

CUSHION

16mm x 150mm

1шт.

4

KHH0368

PLASTIC-RUBBER TUBE

1шт.

5

KHR11090

GROUND CABLE

1шт.

6

893-11008

LOCK WASHER,Ext Tooth, M8

2шт.

7

167518A1

BOLT

M8 x 16mm

5шт.

8

150496A1

MOUNTING CLIP

250mm

1шт.

9

KHR2581

CLAMP

M8

6шт.

10

KHJ1215

BOLT,Spcl

M8 x 25mm

9шт.

11

KHR2584

CLAMP

3шт.

12

KRR23220

BRACKET

1шт.

13

KHR43750

SEAL PROTECTION

1шт.

14

166351A1

BOLT,Sems, M10 x 20mm

M10 x 20mm

3шт.

15

KHR10220

MOUNTING CLIP

31шт.

16

158962A1

CLIP

3шт.

17

KHR51120

POS BATTERY CABLE

1шт.

18

KHR45570

POS BATTERY CABLE

1шт.

19

KHR39110

POS BATTERY CABLE

1шт.

20

KHR48680

POS BATTERY CABLE

1шт.

21

893-11010

LOCK WASHER,Ext Tooth, M10

1шт.

22

166346A1

BOLT,Sems, M10

M10 x 16mm

1шт.

23

KMR13740

BRACKET

1шт.

24

KHR47290

WORK LAMP

Led

1шт.

25

166350A1

BOLT

M8 x 20mm

2шт.

26

KHR34681

ROTARY SWITCH

ASSY, Incl 27

1шт.

27

KHR49150

SPACER

2шт.

28

KHR39760

CAP

2шт.

29

KHR37580

BOLT

M8 x 20mm

4шт.

30

KMR14400

BRACKET

1шт.
