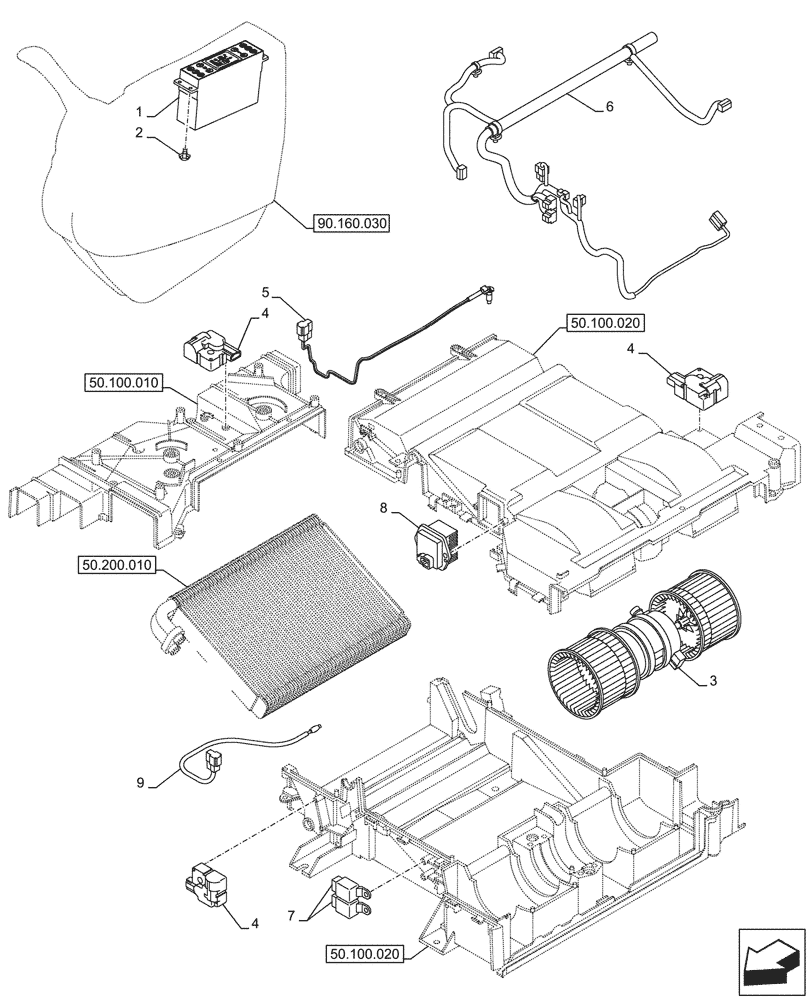

Запчасти Case CX145D SR LC W/BLADE (55.050.010) - AIR CONDITIONING, CONTROL (55) - ELECTRICAL SYSTEMS

1

KHR30920

PANEL

1шт.

2

KHR2737

SELF-TAP SCREW

4шт.

3

KHR31210

BLOWER

24V

1шт.

Parts is included in Unit Air Conditioner Assembly PN KHR30650, KHR30651

1шт.

4

KHR31220

ACTUATOR

3шт.

Parts is included in Unit Air Conditioner Assembly PN KHR30650, KHR30651

1шт.

5

KHR31240

SENSOR

1шт.

Parts is included in Unit Air Conditioner Assembly PN KHR30650, KHR30651

1шт.

6

KHR31250

WIRE HARNESS

1шт.

Parts is included in Unit Air Conditioner Assembly PN KHR30650, KHR30651

1шт.

7

KHR2836

RELAY

2шт.

Parts is included in Unit Air Conditioner Assembly PN KHR30650, KHR30651

1шт.

8

KHR27840

ECU

1шт.

Parts is included in Unit Air Conditioner Assembly PN KHR30650, KHR30651

1шт.

9

KHR31230

SENSOR

1шт.

Parts is included in Unit Air Conditioner Assembly PN KHR30650, KHR30651

1шт.
