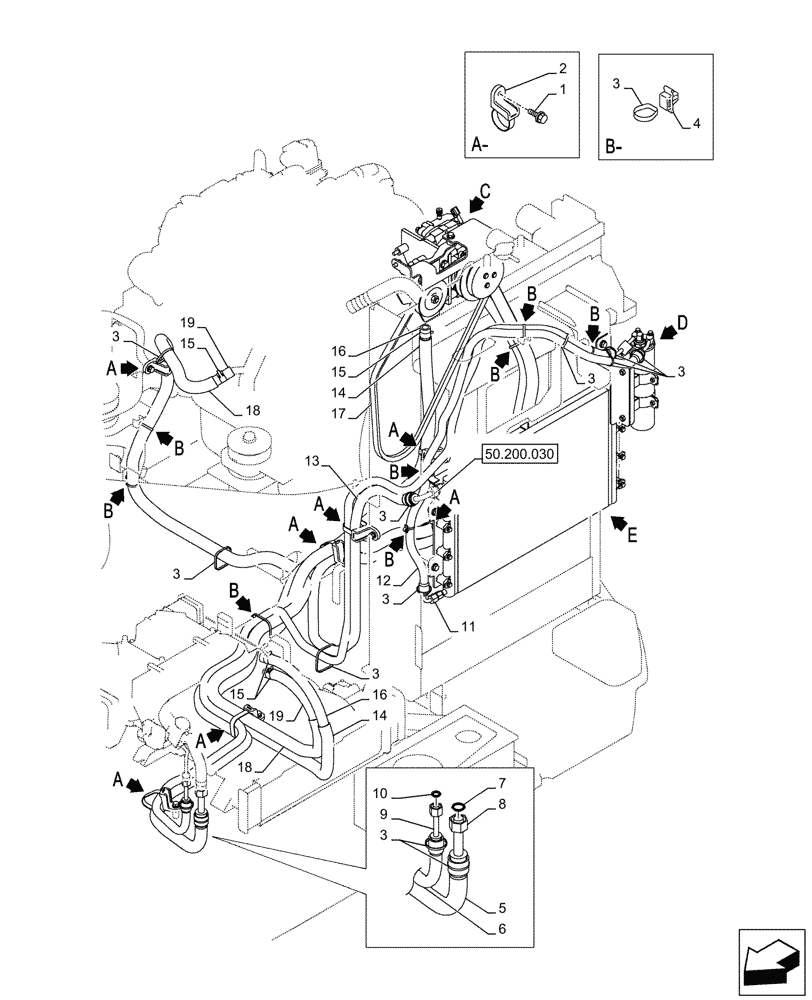

Запчасти Case CX145D SR LC W/BLADE (50.200.010) - AIR CONDITIONING, LINES (50) - CAB CLIMATE CONTROL

1

KHJ1215

BOLT,Spcl

M8 x 25mm

7шт.

2

KHR2581

CLAMP

M8

7шт.

3

150496A1

MOUNTING CLIP

250mm

12шт.

4

KHR10220

MOUNTING CLIP

10шт.

5

166130A1

PLASTIC-RUBBER TUBE

25mm ID x 3000mm

1шт.

6

KRH12160

PLASTIC-RUBBER TUBE

15mm ID x 3200mm

1шт.

7

169052A1

O-RING

2шт.

8

KHR48180

HOSE

ASSY, Incl 7

1шт.

9

KHR48210

HOSE

ASSY, Incl 10 (Qty 2)

1шт.

10

169054A1

O-RING

4шт.

11

KHR48200

HOSE

ASSY, Incl 10 (Qty 2)

1шт.

12

157768A1

PLASTIC-RUBBER TUBE

15mm ID x 1300mm

1шт.

13

KHR21050

PLASTIC-RUBBER TUBE

19mm ID x 2500mm

1шт.

14

166125A1

PLASTIC-RUBBER TUBE

25mm ID x 2000mm

1шт.

15

KHH10750

COLLAR

4шт.

16

KHR22840

HOSE

16mm x ID 2200mm

1шт.

17

KHR13570

BELT

1430mm

1шт.

18

166127A1

PLASTIC-RUBBER TUBE

25mm ID x 2400mm

1шт.

19

KHR21540

HOSE

16mm x ID 2700mm

1шт.
