(50.104.010) - AIR CONDITIONING, W/ HEATER, AIR DUCT

Запчасти Case CX145D SR LC W/BLADE (50.104.010) - AIR CONDITIONING, W/ HEATER, AIR DUCT (50) - CAB CLIMATE CONTROL

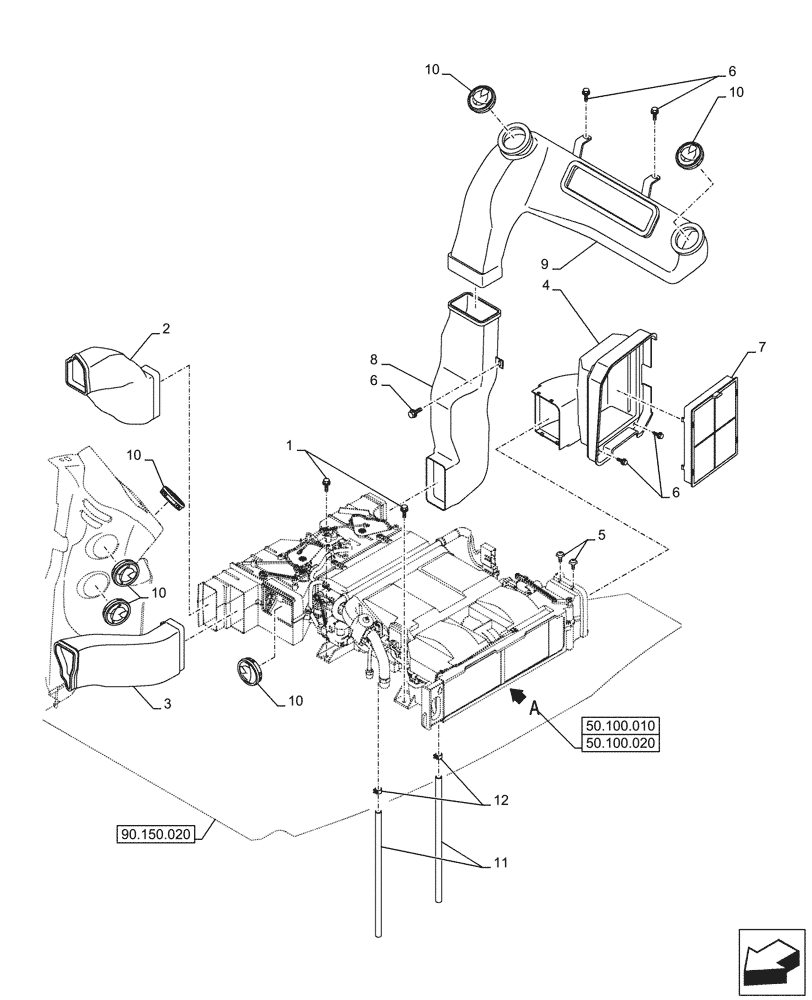

Схема запчастей Case CX145D SR LC W/BLADE - (50.104.010) - AIR CONDITIONING, W/ HEATER, AIR DUCT (50) - CAB CLIMATE CONTROL
50.100.010
10
10
5
9
8
12
4
10
11
1
10
6
10
3
7
6
6
2
90.150.020
50.100.020
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHN2309

BOLT,Spcl

M8 x 20mm

5шт.

2

KHR30530

DUCT

1шт.

3

KHR30540

DUCT

1шт.

4

KHR30571

DUCT

1шт.

5

KHR2737

SELF-TAP SCREW

2шт.

6

KHN2132

BOLT,Hex Flg Hd, M6 x 16

M6 x 16mm

7шт.

7

KHR27260

CAB FILTER

Fresh

1шт.

8

KHR30550

DUCT

1шт.

9

KHR30560

DUCT

1шт.

10

KHR21451

LOUVER

6шт.

11

KHR31940

HOSE

2шт.

12

159622A1

MOUNTING CLIP

2шт.

Выбрано товаров: 12
