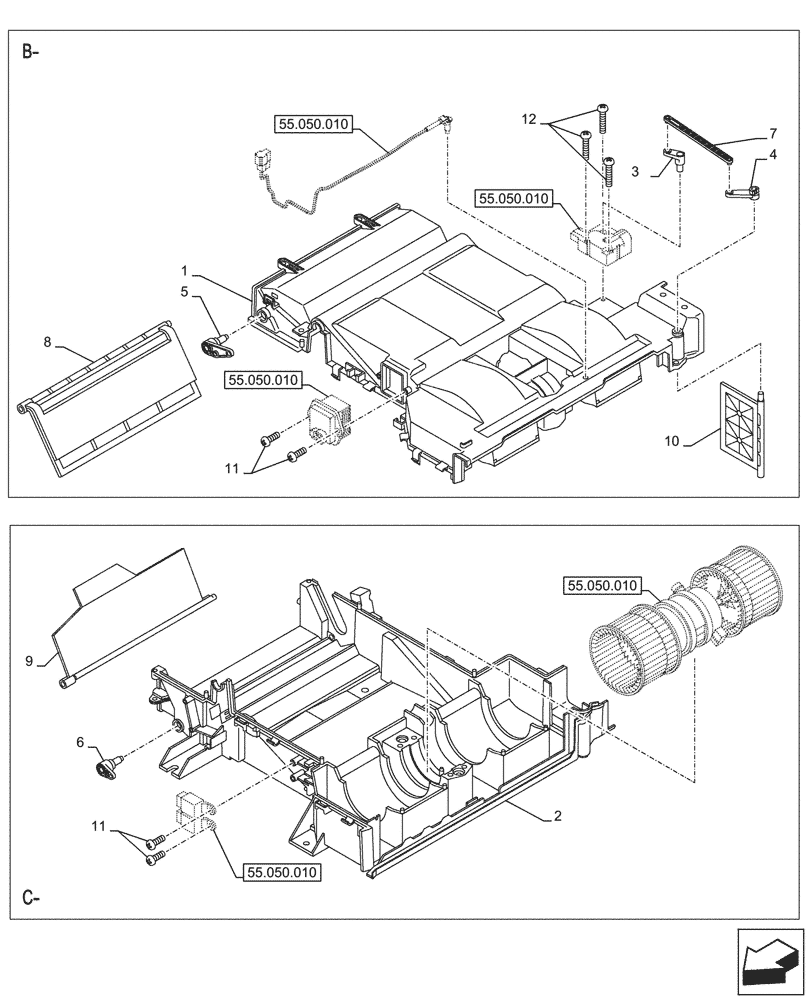

Запчасти Case CX145D SR LC W/BLADE (50.100.020) - AIR CONDITIONING, W/ HEATER, COMPONENTS (50) - CAB CLIMATE CONTROL

1

KHR46840

BOX

1шт.

Parts is included in Unit Air Conditioner Assembly PN KHR30651

1шт.

2

KHR46850

BOX

1шт.

Parts is included in Unit Air Conditioner Assembly PN KHR30651

1шт.

3

KHR46860

LEVER

1шт.

Parts is included in Unit Air Conditioner Assembly PN KHR30651

1шт.

4

KHR31270

LEVER

1шт.

Parts is included in Unit Air Conditioner Assembly PN KHR30650, KHR30651

1шт.

4

KHR46870

LEVER

1шт.

Parts is included in Unit Air Conditioner Assembly PN KHR30650, KHR30651

1шт.

5

KHR46890

LEVER

1шт.

Parts is included in Unit Air Conditioner Assembly PN KHR30651

1шт.

6

KHR46900

LEVER

1шт.

Parts is included in Unit Air Conditioner Assembly PN KHR30651

1шт.

7

KHR31310

ROD

1шт.

Parts is included in Unit Air Conditioner Assembly PN KHR30650, KHR30651

1шт.

7

KHR46910

ROD

1шт.

Parts is included in Unit Air Conditioner Assembly PN KHR30650, KHR30651

1шт.

8

KHR46940

DAMPER

1шт.

Parts is included in Unit Air Conditioner Assembly PN KHR30651

1шт.

9

KHR46950

DAMPER

1шт.

Parts is included in Unit Air Conditioner Assembly PN KHR30651

1шт.

10

KHR46960

DAMPER

1шт.

Parts is included in Unit Air Conditioner Assembly PN KHR30651

1шт.

11

KHR47090

SCREW

4шт.

Parts is included in Unit Air Conditioner Assembly PN KHR30650, KHR30651

1шт.

12

KHR31750

SCREW

9шт.

Parts is included in Unit Air Conditioner Assembly PN KHR30650, KHR30651

1шт.
