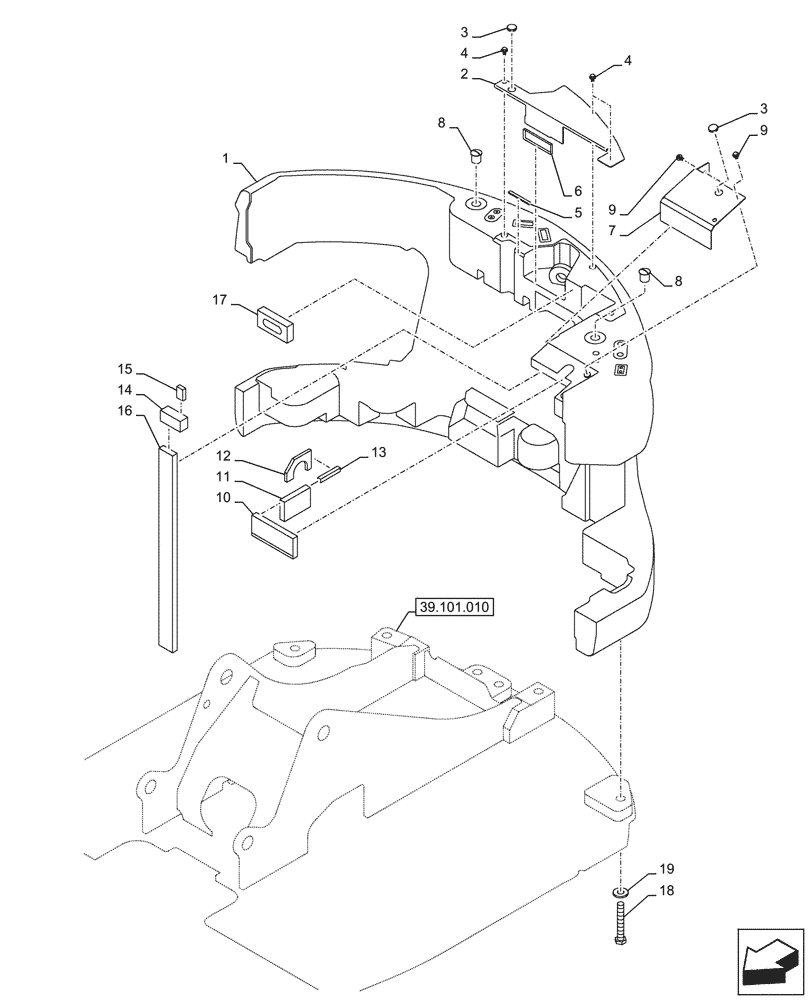

Запчасти Case CX145D SR LC W/BLADE (39.140.010) - VAR - 488141 - COUNTERWEIGHT, INSULATION (39) - FRAMES AND BALLASTING

1

KMB13560

COUNTERWEIGHT

3.55T

1шт.

2

KMB13620

COVER

1шт.

3

151409A1

GROMMET

2шт.

4

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

3шт.

5

KMB13670

SEAL

1шт.

6

KMB13680

SEAL

1шт.

7

KMB13172

COVER

1шт.

8

KHB13090

SCREW

2шт.

9

KHN39331

BOLT

M12 x 25mm

3шт.

10

KMB13191

SEAL

1шт.

11

KMB13200

SEAL

1шт.

12

KMB13210

SEAL

1шт.

13

KTN1224

SEAL

1шт.

14

KMB13220

SEAL

1шт.

15

KMB13230

SEAL

1шт.

16

KMB13640

SEAL

1шт.

17

KMB13650

SEAL

1шт.

18

102R030W200N

BOLT

M30 x 200mm

7шт.

19

163858A1

WASHER

7шт.
