(35.741.020) - DOZER BLADE, LIFT CYLINDER, LINES

Запчасти Case CX145D SR LC W/BLADE (35.741.020) - DOZER BLADE, LIFT CYLINDER, LINES (35) - HYDRAULIC SYSTEMS

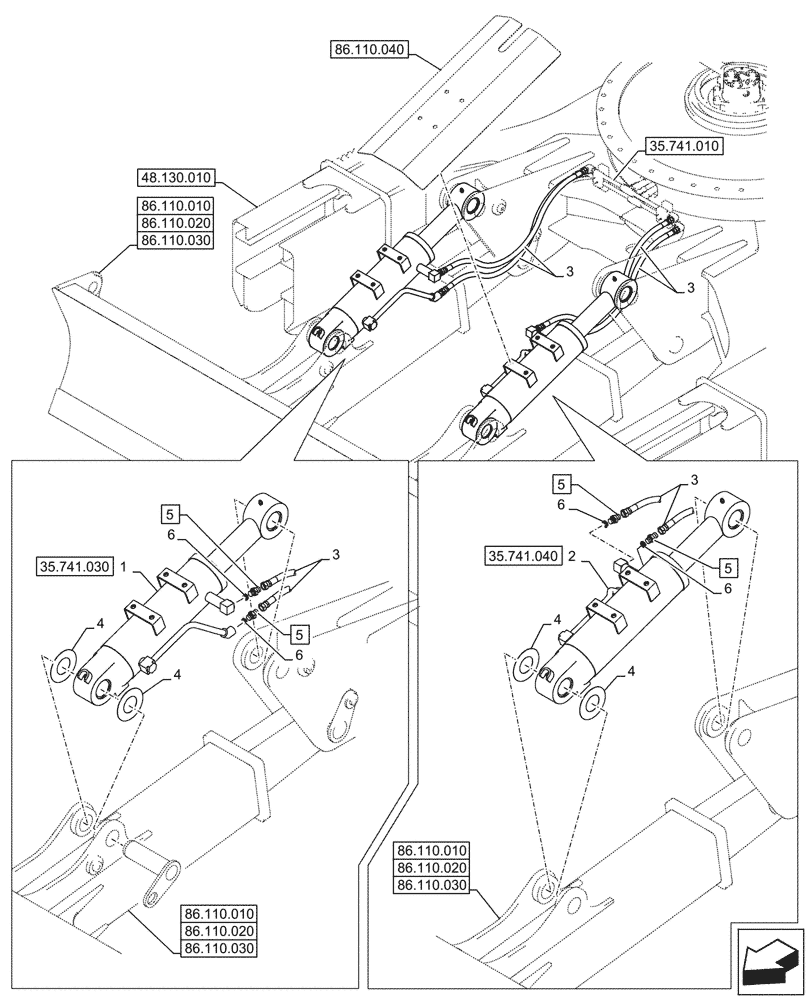

Схема запчастей Case CX145D SR LC W/BLADE - (35.741.020) - DOZER BLADE, LIFT CYLINDER, LINES (35) - HYDRAULIC SYSTEMS
48.130.010
3
5
3
4
5
6
6
4
4
1
4
6
5
3
2
3
5
6
86.110.030
86.110.030
86.110.030
86.110.010
86.110.010
86.110.010
86.110.040
35.741.010
35.741.030
86.110.020
86.110.020
86.110.020
35.741.040
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KMV23350

ASSY

HYDRAULIC CYLINDER

1шт.

2

KMV23360

ASSY

HYDRAULIC CYLINDER

1шт.

3

KMV23370

HYDRAULIC HOSE

L=850mm, From Hydraulic Swivel to Blade Cylinder

4шт.

4

KAV0395

SHIM

4шт.

5

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ASSY, G3/8" x G3/8", Incl 4

4шт.

6

150031A1

O-RING,10mm ID x 24mm OD

4шт.

Выбрано товаров: 6
