(35.741.010) - DOZER BLADE, LIFT CYLINDER, LINES

Запчасти Case CX145D SR LC W/BLADE (35.741.010) - DOZER BLADE, LIFT CYLINDER, LINES (35) - HYDRAULIC SYSTEMS

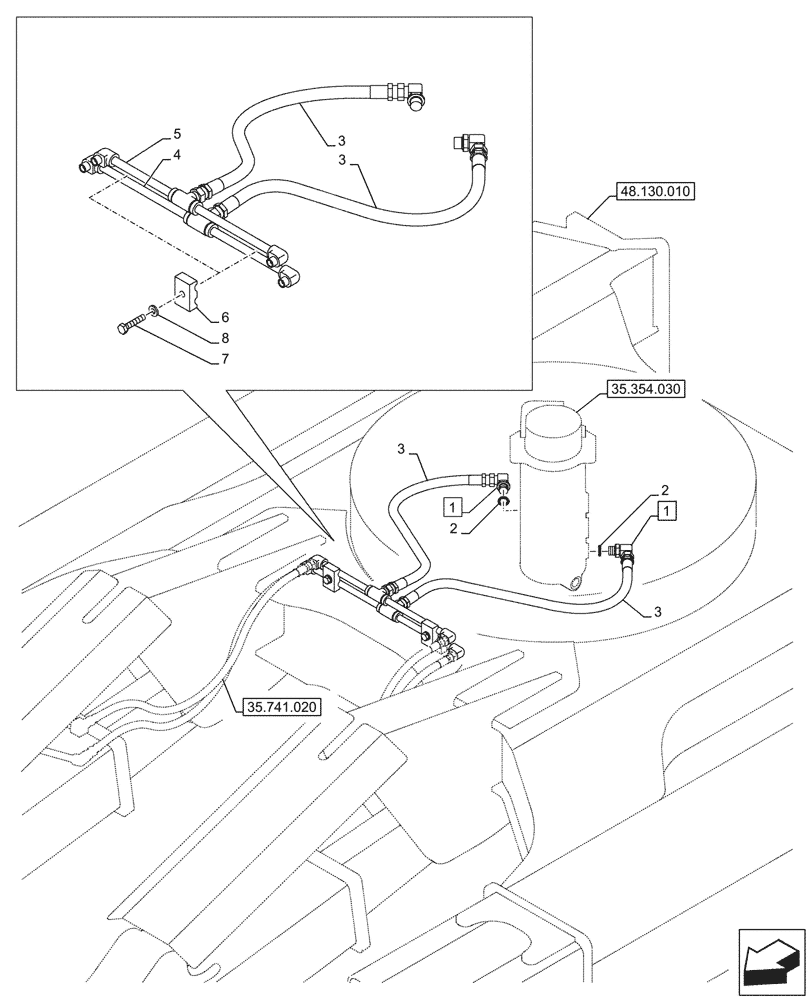

Схема запчастей Case CX145D SR LC W/BLADE - (35.741.010) - DOZER BLADE, LIFT CYLINDER, LINES (35) - HYDRAULIC SYSTEMS
48.130.010
1
4
3
6
7
3
3
2
2
8
5
1
3
35.354.030
35.741.020
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

150919A1

ELBOW,90 Degree, 1/2" O-Ring x 1/2"

ASSY, G1/2" x G1/2", Incl 2

2шт.

2

150539A1

O-RING

2шт.

3

KAV0390

HYDRAULIC HOSE,12.70 mm ID x 750.00 mm

From Hydraulic Swivel to Blade Cylinder

2шт.

4

KMA11300

PIPE

From Hydraulic Swivel to Blade Cylinder

1шт.

5

KMA11310

PIPE

From Hydraulic Swivel to Blade Cylinder

1шт.

6

168674A1

COLLAR

15mm x 2mm

2шт.

7

827-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 10.9

M10 x 50mm

2шт.

8

150409A1

WASHER

M12

2шт.
