(35.738.040) - VAR - 781178 - BUCKET CYLINDER, LINES

Запчасти Case CX145D SR LC W/BLADE (35.738.040) - VAR - 781178 - BUCKET CYLINDER, LINES (35) - HYDRAULIC SYSTEMS

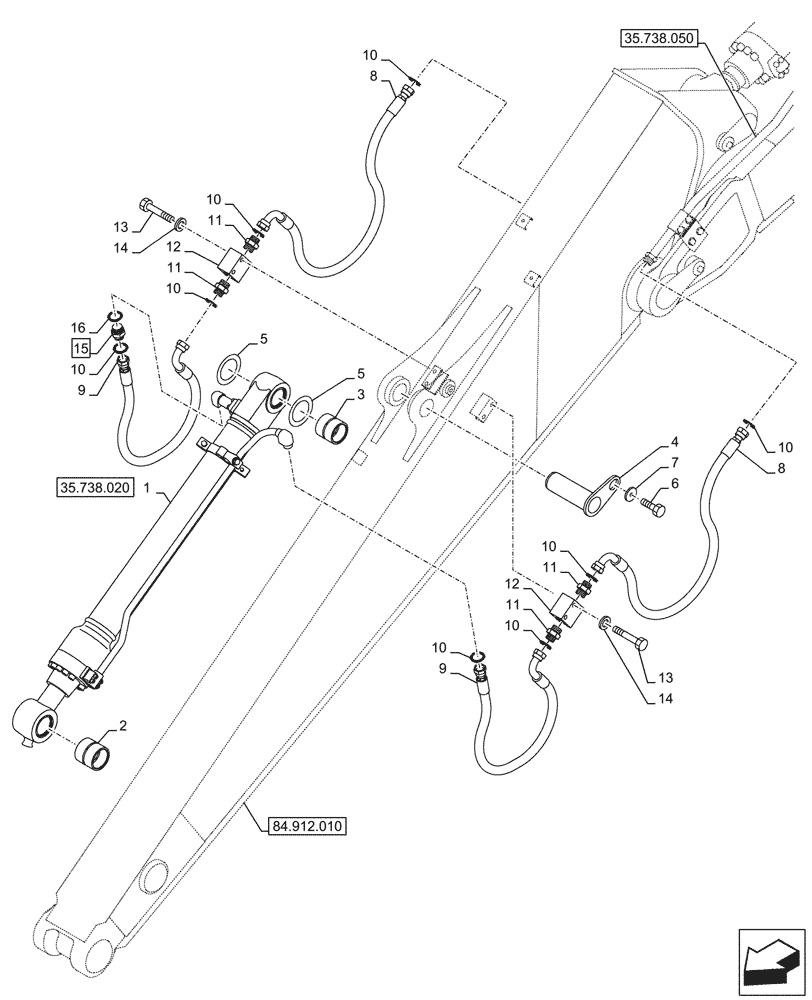

Схема запчастей Case CX145D SR LC W/BLADE - (35.738.040) - VAR - 781178 - BUCKET CYLINDER, LINES (35) - HYDRAULIC SYSTEMS
84.912.010
4
8
7
10
10
11
10
5
12
9
10
13
11
14
12
11
9
10
6
13
10
2
8
15
1
3
10
5
11
14
10
16
35.738.020
35.738.050
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KNV12541

BUCKET CYLINDER

ASSY, Incl 2, 3

1шт.

2

KNV1139

SELF LUB RING

1шт.

3

KNV1141

SELF LUB RING

1шт.

4

KNV13460

PIN

1шт.

5

160734A1

SHIM

2шт.

6

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

M12 x 25mm

1шт.

7

157141A1

WASHER

M12

1шт.

8

KRV14220

HYDRAULIC HOSE

1300mm From Cylinder to bucket lines

2шт.

9

KRV25390

HYDRAULIC HOSE

1100mm From Cylinder to bucket lines

2шт.

10

KHJ1360

O-RING,0.07" Thk x 0.739" ID

8шт.

11

KHJ1941

FITTING

4шт.

12

KNJ19690

MANIFOLD VALVE

2шт.

13

827-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

M12 x 80mm

4шт.

14

150811A1

WASHER

4шт.

15

KHJ1348

ADAPTER

ASSY, Incl 16

1шт.

16

150542A1

O-RING

1шт.
