(35.738.010) - VAR - 781174 - BUCKET CYLINDER, LINES (ARM L=2.1M)

Запчасти Case CX145D SR LC W/BLADE (35.738.010) - VAR - 781174 - BUCKET CYLINDER, LINES (ARM L=2.1M) (35) - HYDRAULIC SYSTEMS

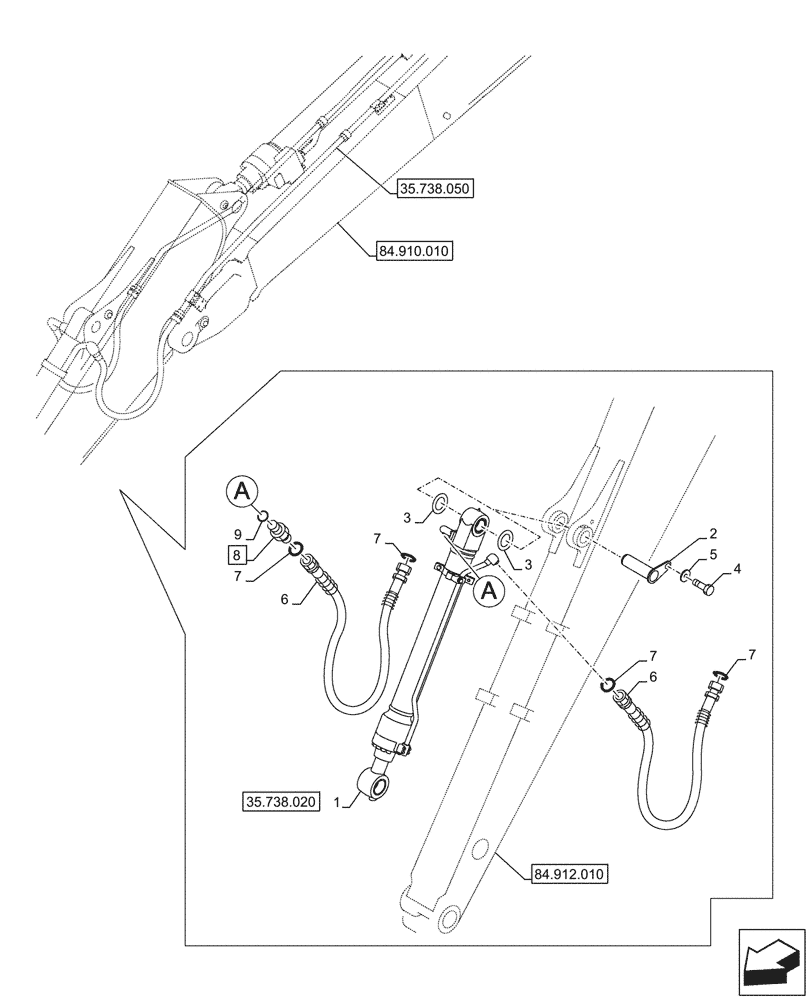

Схема запчастей Case CX145D SR LC W/BLADE - (35.738.010) - VAR - 781174 - BUCKET CYLINDER, LINES (ARM L=2.1M) (35) - HYDRAULIC SYSTEMS
84.912.010
3
3
7
2
1
8
7
7
6
4
9
5
7
6
35.738.020
35.738.050
84.910.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KNV12541

BUCKET CYLINDER

1шт.

2

KNV13460

PIN

1шт.

3

160734A1

SHIM

2шт.

4

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

M12 x 25mm

1шт.

5

157141A1

WASHER

M12

1шт.

6

KNV18870

HYDRAULIC HOSE

1350mm From Cylinder to bucket lines

2шт.

7

KHJ1360

O-RING,0.07" Thk x 0.739" ID

4шт.

8

KHJ1348

ADAPTER

ASSY, Incl 9

1шт.

9

150542A1

O-RING

1шт.
