(35.737.100) - VAR - 481064 - ARM, CYLINDER, LINES

Запчасти Case CX145D SR LC W/BLADE (35.737.100) - VAR - 481064 - ARM, CYLINDER, LINES (35) - HYDRAULIC SYSTEMS

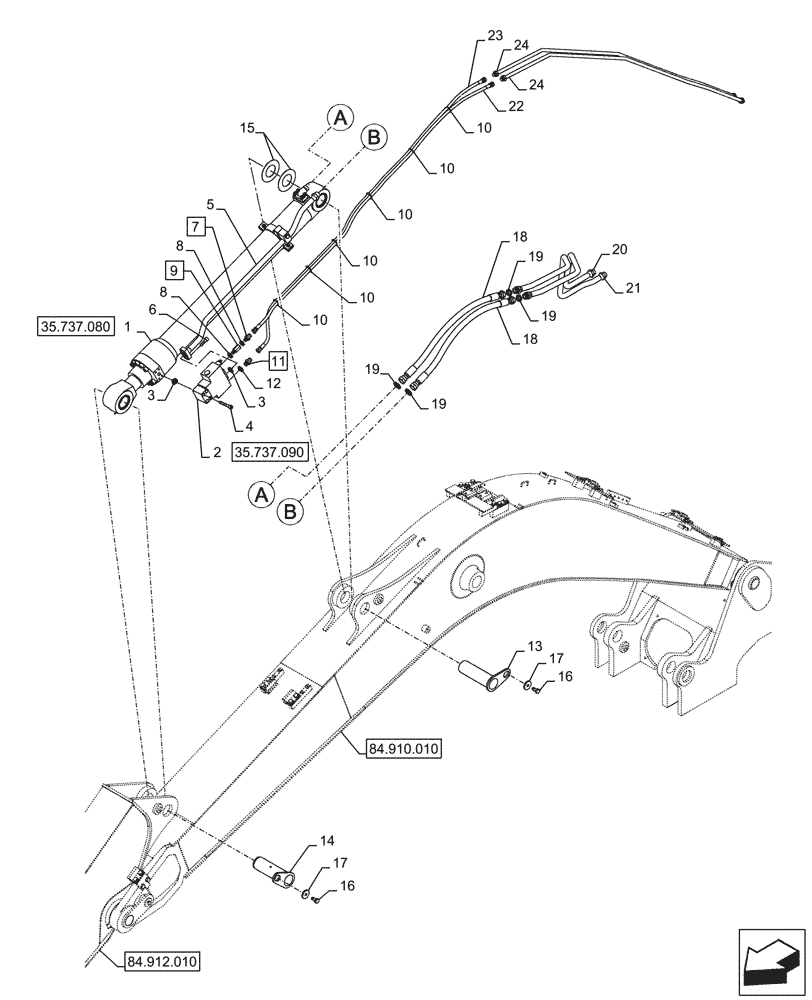

Схема запчастей Case CX145D SR LC W/BLADE - (35.737.100) - VAR - 481064 - ARM, CYLINDER, LINES (35) - HYDRAULIC SYSTEMS
84.912.010
17
3
19
6
15
23
24
17
8
1
12
5
19
10
3
16
21
13
20
18
9
2
22
16
10
20
10
7
24
14
8
10
18
10
19
11
4
10
35.737.080
19
35.737.090
84.910.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KNV16290

HYDRAULIC CYLINDER

1шт.

2

KNV26480

VALVE

1шт.

3

161097A1

O-RING

2шт.

4

862-10070

HEX SOC SCREW,M10 x 70mm, Cl 12.9

4шт.

5

KNV14720

HYD TUBE

1шт.

6

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

4шт.

7

152747A1

ADAPTER

ASSY, G1/4XG3/8, Incl 8

1шт.

8

150960A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

9

162525A1

STUD

ASSY, G1/4XG1/4, Incl 8

1шт.

10

150067A1

MOUNTING CLIP

6шт.

11

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ASSY, G3/8XG3/8, Incl 12

1шт.

12

150031A1

O-RING,10mm ID x 24mm OD

1шт.

13

KNV13440

PIN

1шт.

14

KNV17621

PIN

1шт.

15

160735A1

ADJUSTING PLATE

2шт.

16

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

2шт.

17

157141A1

WASHER

2шт.

18

KRV19720

HYDRAULIC HOSE,19.00 mm ID x 850.00 mm

2шт.

19

KHJ1360

O-RING,0.07" Thk x 0.739" ID

4шт.

20

KMV25570

PIPE

1шт.

21

KMV25580

PIPE

L=850mm, From Main Control Valve to Cylinder

1шт.

22

KHJ35420

HYDRAULIC HOSE

9mm ID x 2150mm, From Main Control Valve to Safety Valve

1шт.

23

KHJ16830

HYDRAULIC HOSE

L=2200mm, From Main Control Valve to Safety Valve

1шт.

24

KMV23500

PIPE

2шт.
