(35.737.070) - VAR - 481064 - ARM, CYLINDER, LINES

Запчасти Case CX145D SR LC W/BLADE (35.737.070) - VAR - 481064 - ARM, CYLINDER, LINES (35) - HYDRAULIC SYSTEMS

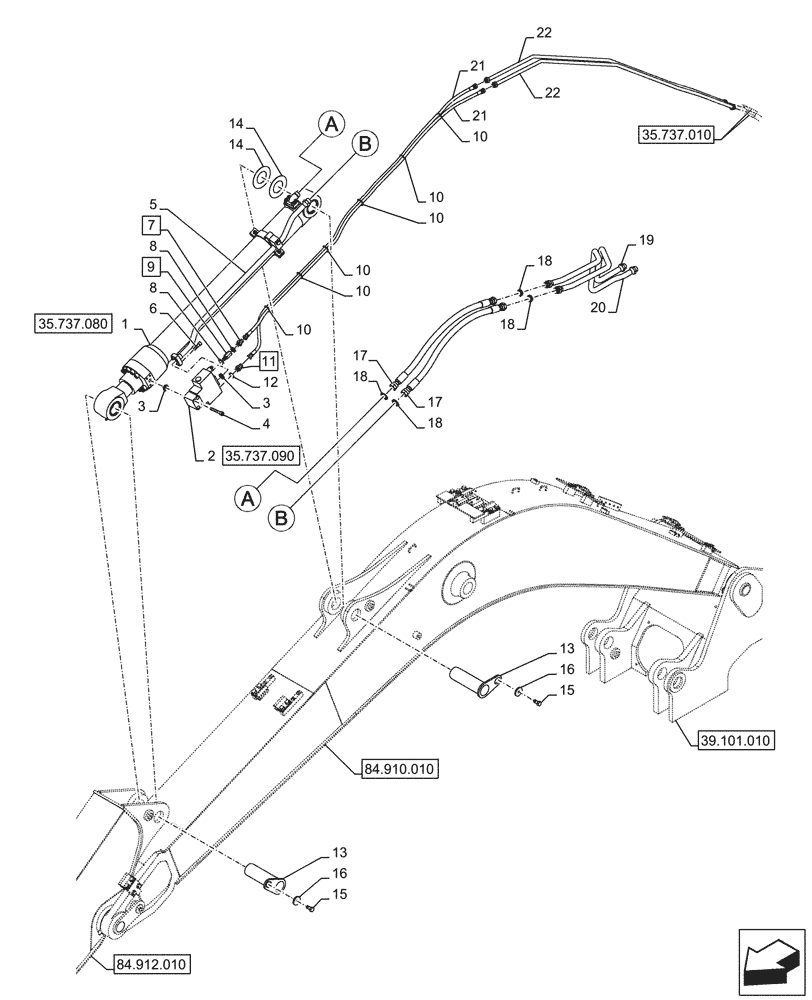

Схема запчастей Case CX145D SR LC W/BLADE - (35.737.070) - VAR - 481064 - ARM, CYLINDER, LINES (35) - HYDRAULIC SYSTEMS
84.912.010
3
16
5
21
4
17
18
1
13
17
18
8
16
18
22
14
8
3
11
22
15
15
19
21
14
7
20
10
2
10
9
10
10
18
10
13
10
6
12
35.737.010
35.737.090
35.737.080
39.101.010
84.910.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KNV16290

HYDRAULIC CYLINDER

1шт.

2

KNV26480

VALVE

2шт.

3

161097A1

O-RING

2шт.

4

862-10070

HEX SOC SCREW,M10 x 70mm, Cl 12.9

4шт.

5

KNV14720

HYD TUBE

1шт.

6

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

4шт.

7

152747A1

ADAPTER

ASSY, G1/4XG3/8, Incl 8

1шт.

8

150960A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

9

162525A1

STUD

ASSY, G1/4XG1/4, Incl 8

1шт.

10

150067A1

MOUNTING CLIP

6шт.

11

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ASSY, G3/8XG3/8, Incl 12

1шт.

12

150031A1

O-RING,10mm ID x 24mm OD

1шт.

13

KNV13440

PIN

2шт.

14

160735A1

ADJUSTING PLATE

2шт.

15

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

2шт.

16

157141A1

WASHER

2шт.

17

KRV19720

HYDRAULIC HOSE,19.00 mm ID x 850.00 mm

2шт.

18

KHJ1360

O-RING,0.07" Thk x 0.739" ID

4шт.

19

KMV25570

PIPE

1шт.

20

KMV25580

PIPE

1шт.

21

KNV17110

HYDRAULIC HOSE

1шт.

22

KMV23500

PIPE

2шт.
