(35.737.060) - VAR - 781178 - ARM, CYLINDER, LINES

Запчасти Case CX145D SR LC W/BLADE (35.737.060) - VAR - 781178 - ARM, CYLINDER, LINES (35) - HYDRAULIC SYSTEMS

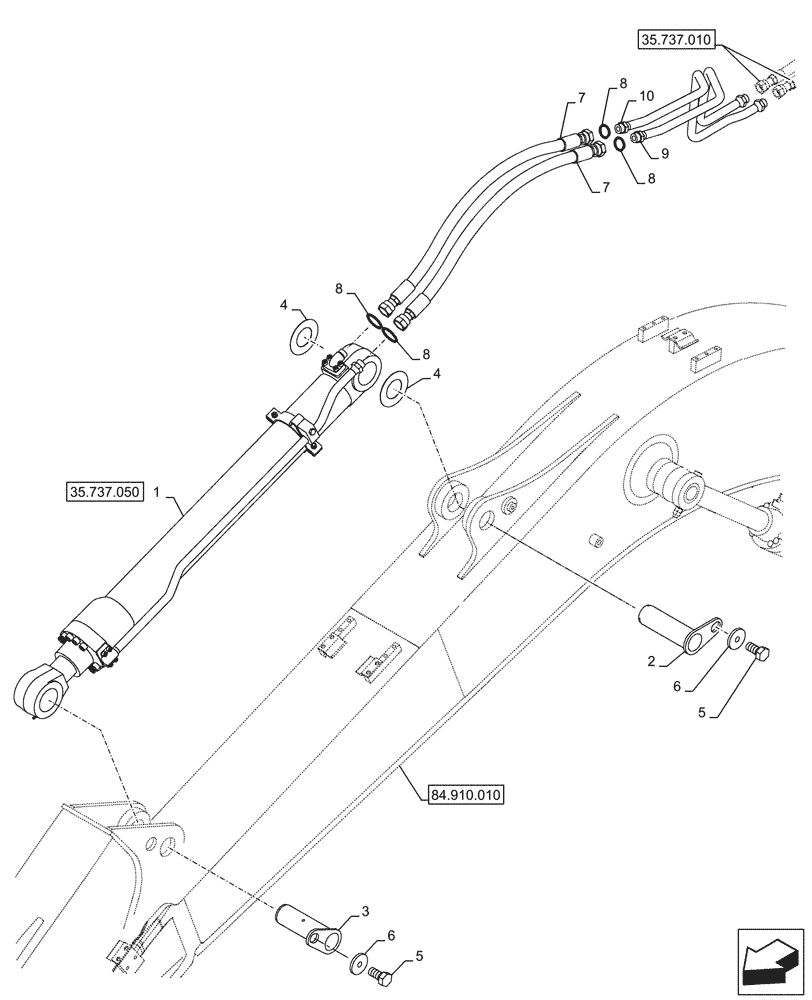

Схема запчастей Case CX145D SR LC W/BLADE - (35.737.060) - VAR - 781178 - ARM, CYLINDER, LINES (35) - HYDRAULIC SYSTEMS
84.910.010
5
6
7
9
7
4
2
8
4
8
3
10
8
5
8
6
1
35.737.050
35.737.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KNV14350

HYDRAULIC CYLINDER

1шт.

2

KNV13440

PIN

1шт.

3

KNV17621

PIN

1шт.

4

160735A1

ADJUSTING PLATE

2шт.

5

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

2шт.

6

157141A1

WASHER

2шт.

7

KRV19720

HYDRAULIC HOSE,19.00 mm ID x 850.00 mm

From Cylinder lines to Arm lines

2шт.

8

KHJ1360

O-RING,0.07" Thk x 0.739" ID

4шт.

9

KMV25570

PIPE

From Cylinder lines to Arm lines

1шт.

10

KMV25580

PIPE

From Cylinder lines to Arm lines

1шт.
