(35.737.020) - ARM, CYLINDER, LINES

Запчасти Case CX145D SR LC W/BLADE (35.737.020) - ARM, CYLINDER, LINES (35) - HYDRAULIC SYSTEMS

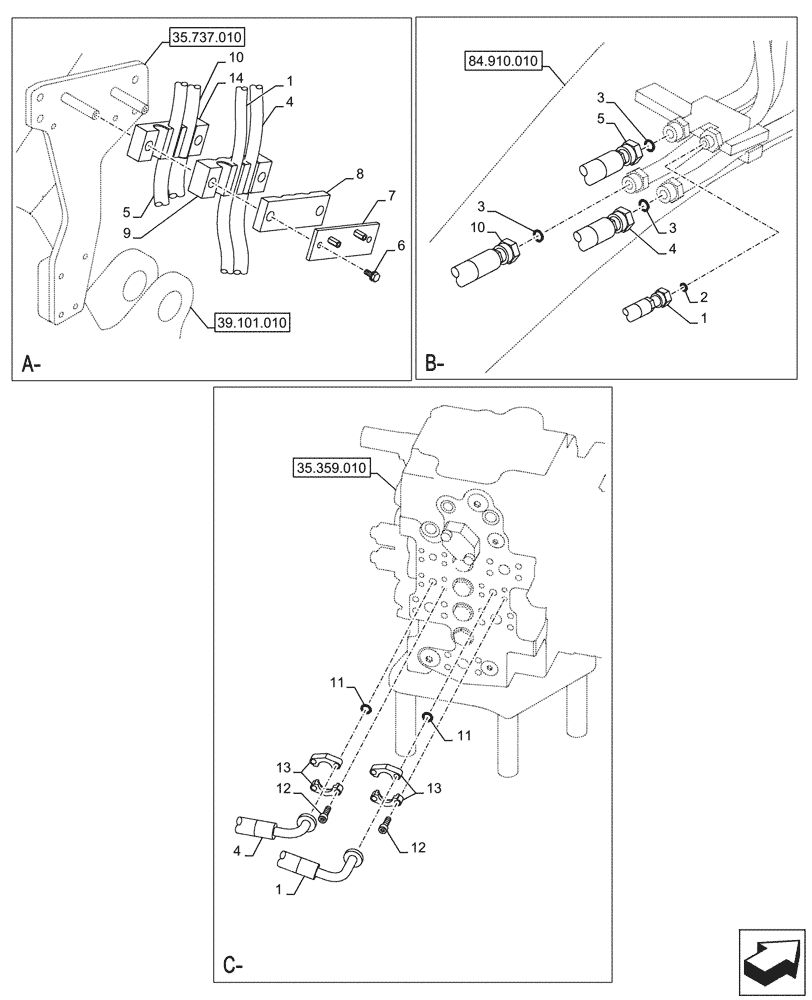

Схема запчастей Case CX145D SR LC W/BLADE - (35.737.020) - ARM, CYLINDER, LINES (35) - HYDRAULIC SYSTEMS
84.910.010
3
2
1
12
14
9
3
11
4
13
1
5
4
3
13
8
10
10
12
6
4
7
11
5
1
35.737.010
35.359.010
39.101.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KMJ22100

HYDRAULIC HOSE

From Control Valve to Arm lines

1шт.

2

KHJ2587

O-RING

1шт.

3

KHJ1360

O-RING,0.07" Thk x 0.739" ID

3шт.

4

KMJ22110

HYDRAULIC HOSE

From Control Valve to Arm lines

1шт.

5

KMJ22080

HYDRAULIC HOSE

From Control Valve to Arm lines

1шт.

6

166052A1

BOLT

M10 x 25mm

2шт.

7

KMJ22140

PLATE

1шт.

8

KMJ22440

CLAMP

1шт.

9

KMJ22450

CLAMP

1шт.

10

KMJ20180

HYDRAULIC HOSE

From Control Valve to Arm lines

1шт.

11

161096A1

O-RING

2шт.

12

862-8025

HEX SOC SCREW,M8 x 25mm, Cl 12.9

8шт.

13

161080A1

FLANGE

4шт.

14

KMJ20200

CLAMP

1шт.
