(35.736.100) - VAR - 481064 - LIFT CYLINDER, BOOM, LINE

Запчасти Case CX145D SR LC W/BLADE (35.736.100) - VAR - 481064 - LIFT CYLINDER, BOOM, LINE (35) - HYDRAULIC SYSTEMS

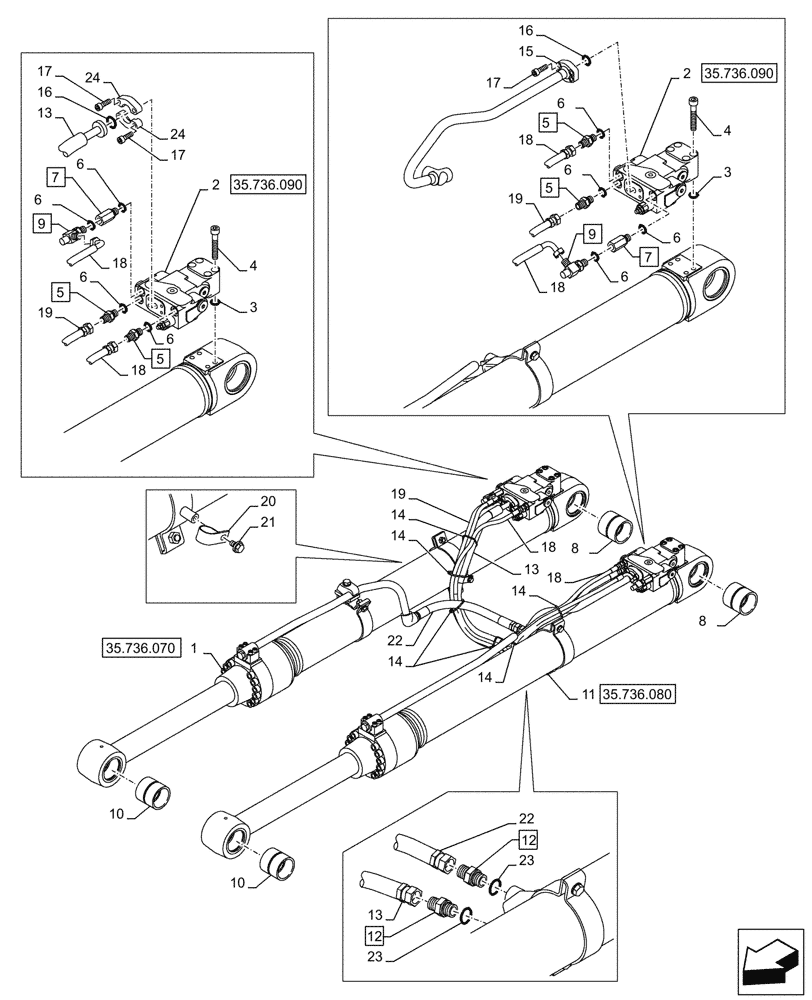

Схема запчастей Case CX145D SR LC W/BLADE - (35.736.100) - VAR - 481064 - LIFT CYLINDER, BOOM, LINE (35) - HYDRAULIC SYSTEMS
24
16
14
9
23
12
6
19
5
6
6
13
23
8
18
4
17
22
19
18
5
2
14
14
6
16
5
3
13
7
10
6
10
14
17
21
8
6
22
2
6
15
11
3
1
17
19
18
18
5
13
6
14
24
20
12
9
18
4
18
7
35.736.080
35.736.090
35.736.070
35.736.090
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KMV17900

HYDRAULIC CYLINDER

ASSY, RH, Incl 10 (Qty 1), 8 (Qty 1)

1шт.

2

KNV12850

VALVE SECTION

1шт.

3

161097A1

O-RING

1шт.

4

862-10060

HEX SOC SCREW,M10 x 60mm, Cl 12.9

M10 x 60mm

8шт.

5

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, G1/4" x G1/4", Incl 6 (Qty 4)

4шт.

6

150960A1

O-RING,10.8mm ID x 2.4mm Width

4шт.

7

162525A1

STUD

ASSY, G1/4" x G1/4", Incl 6 (Qty 2)

1шт.

8

KNV1143

SELF LUB RING

1шт.

9

159497A1

TEE

ASSY, G1/4" x G1/4" x G1/4", Incl 6 (Qty 2)

1шт.

10

KNV1139

SELF LUB RING

1шт.

11

KMV17920

HYDRAULIC CYLINDER

ASSY, LH, Incl 10 (Qty 1), 8 (Qty 1)

1шт.

12

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

ASSY, G1/2" x G1/2", Incl 23

1шт.

13

KMV18060

HYDRAULIC HOSE

12mm x ID 730mm

1шт.

14

150071A1

MOUNTING CLIP

380mm

6шт.

15

KMV18041

PIPE

1шт.

16

161096A1

O-RING

1шт.

17

862-8025

HEX SOC SCREW,M8 x 25mm, Cl 12.9

M8 x 25mm

8шт.

18

KHJ17070

HYDRAULIC HOSE

6mm ID x 1400mm

1шт.

19

KLV13680

HOSE ASSY.

1450mm

1шт.

20

KHV0472

HOSE CLAMP

1шт.

21

166345A1

BOLT

M8 x 16mm

1шт.

22

KMV18050

HYDRAULIC HOSE

12mm x ID 400mm

1шт.

23

150539A1

O-RING

1шт.

24

KHV11140

FLANGE

4шт.
