(35.736.030) - VAR - 481858 - LIFT CYLINDER, BOOM

Запчасти Case CX145D SR LC W/BLADE (35.736.030) - VAR - 481858 - LIFT CYLINDER, BOOM (35) - HYDRAULIC SYSTEMS

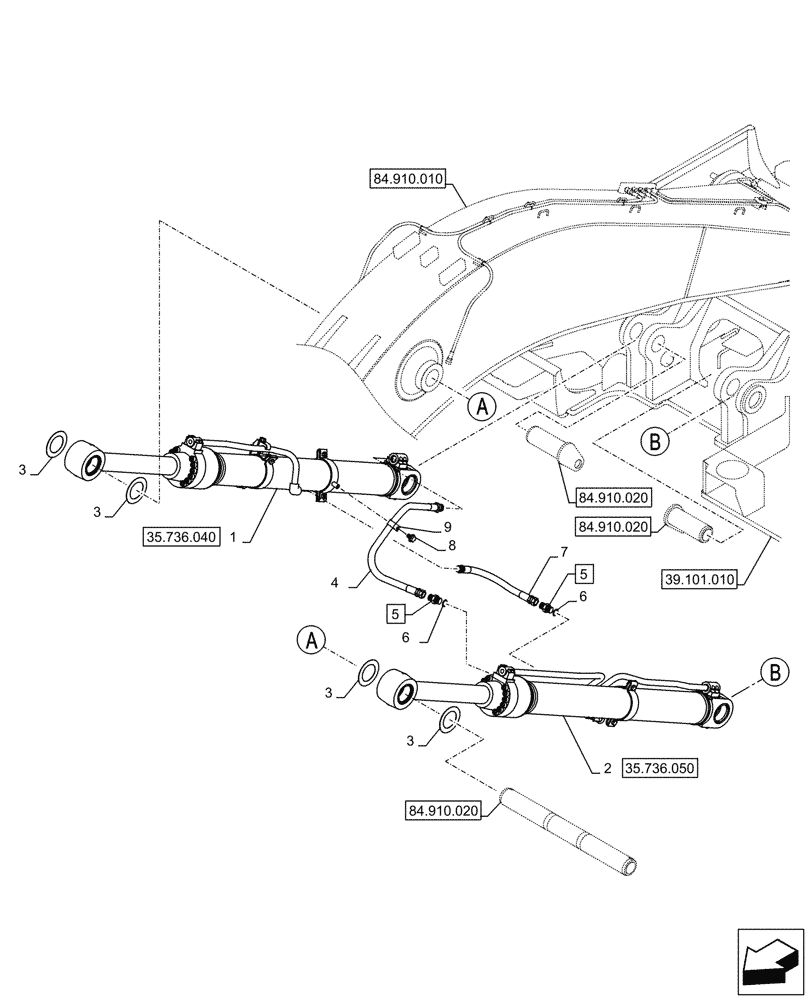

Схема запчастей Case CX145D SR LC W/BLADE - (35.736.030) - VAR - 481858 - LIFT CYLINDER, BOOM (35) - HYDRAULIC SYSTEMS
84.910.010
9
7
5
1
2
6
6
8
3
3
3
5
3
4
35.736.040
84.910.020
84.910.020
84.910.020
39.101.010
35.736.050
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KMV17860

HYDRAULIC CYLINDER

1шт.

2

KMV17880

HYDRAULIC CYLINDER

1шт.

3

160745A1

ADJUSTING PLATE

4шт.

4

KMV18250

HYDRAULIC HOSE

12mm x ID 880mm

1шт.

5

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

ASSY, G1/2" x G1/2", Incl 6 (Qty 1)

2шт.

6

150539A1

O-RING

2шт.

7

KMV18050

HYDRAULIC HOSE

12mm x ID 400mm

1шт.

8

166345A1

BOLT

M8 x 16mm

1шт.

9

KHV0472

HOSE CLAMP

1шт.
