(35.736.020) - VAR - 481064 - LIFT CYLINDER, BOOM, LINE, SAFETY VALVE

Запчасти Case CX145D SR LC W/BLADE (35.736.020) - VAR - 481064 - LIFT CYLINDER, BOOM, LINE, SAFETY VALVE (35) - HYDRAULIC SYSTEMS

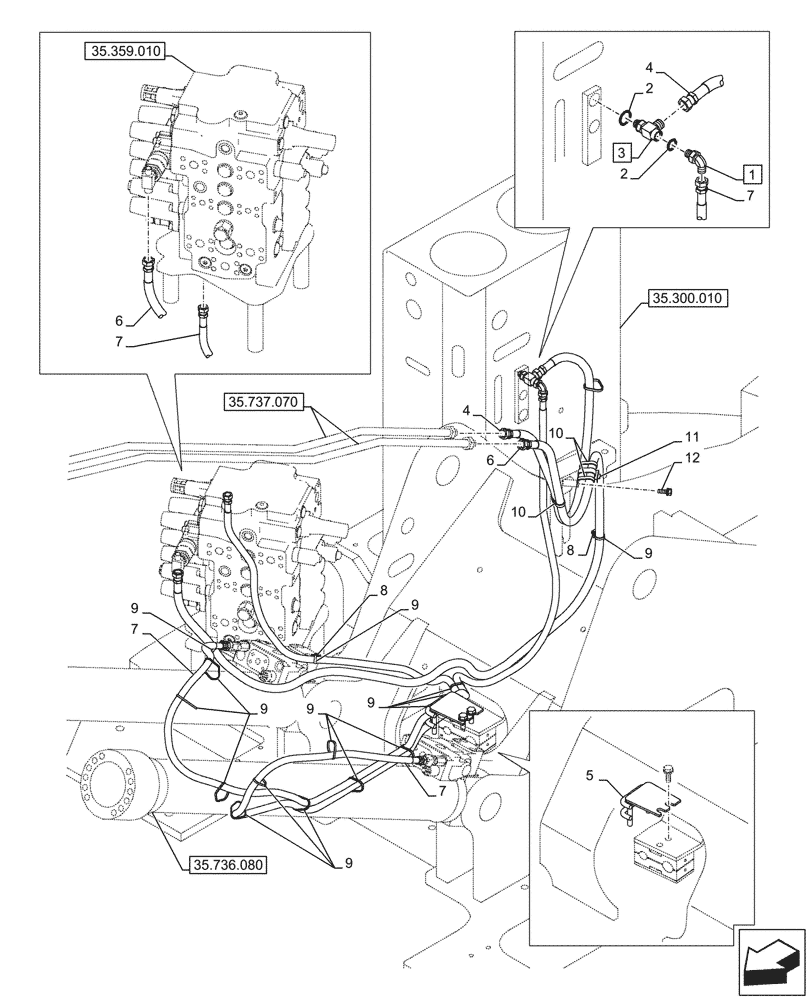

Схема запчастей Case CX145D SR LC W/BLADE - (35.736.020) - VAR - 481064 - LIFT CYLINDER, BOOM, LINE, SAFETY VALVE (35) - HYDRAULIC SYSTEMS
35.737.070
2
9
3
12
6
2
9
11
8
4
9
1
5
9
7
10
6
9
8
7
10
9
9
7
4
7
35.300.010
35.359.010
35.736.080
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ28580

ELBOW

ASSY, G1/4" x G1/4", Incl 2 (Qty 1)

1шт.

2

150960A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

3

KHJ11560

TEE

ASSY, G1/4" x G3/8" x G1/4", Incl 2 (Qty 1)

1шт.

4

KHJ37000

HYDRAULIC HOSE

9mm ID x 1050mm

1шт.

5

KMJ16830

BRACKET

1шт.

6

KHJ35390

HYDRAULIC HOSE

9mm ID x 2400mm

1шт.

7

KHJ23790

HYDRAULIC HOSE

2800mm

2шт.

8

KHR10220

MOUNTING CLIP

2шт.

9

150496A1

MOUNTING CLIP

250mm

18шт.

10

150071A1

MOUNTING CLIP

380mm

3шт.

11

KHR2581

CLAMP

M8

1шт.

12

KHJ1215

BOLT,Spcl

M8 x 25mm

1шт.
