(35.736.010) - LIFT CYLINDER, BOOM, LINE

Запчасти Case CX145D SR LC W/BLADE (35.736.010) - LIFT CYLINDER, BOOM, LINE (35) - HYDRAULIC SYSTEMS

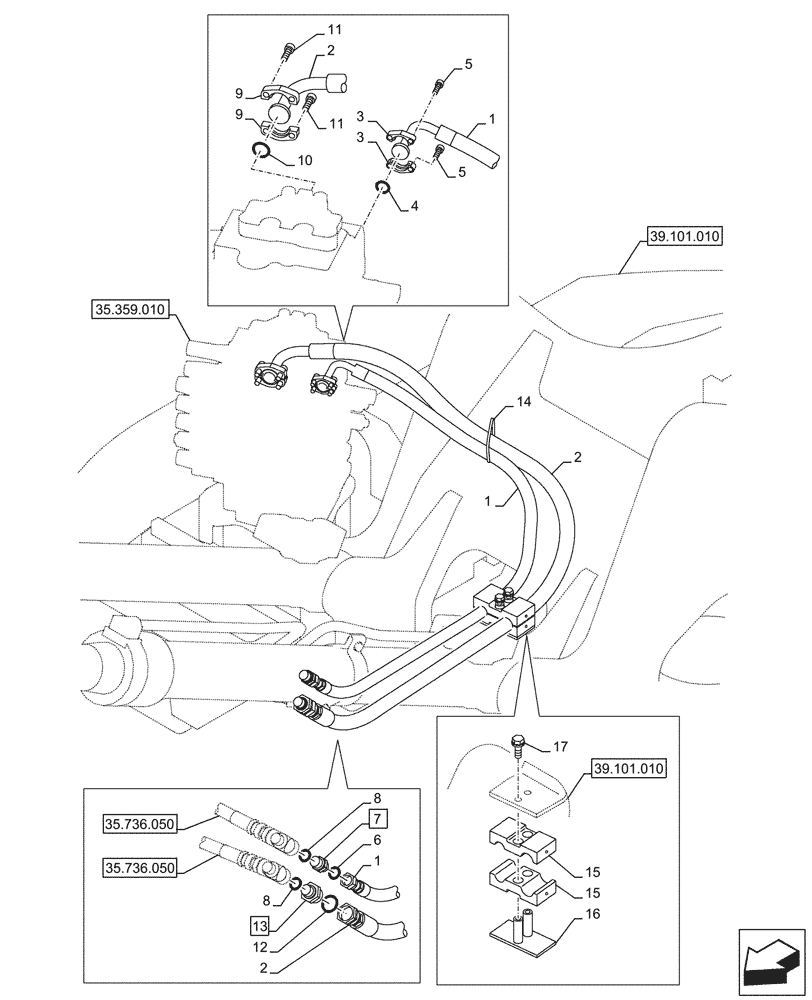

Схема запчастей Case CX145D SR LC W/BLADE - (35.736.010) - LIFT CYLINDER, BOOM, LINE (35) - HYDRAULIC SYSTEMS
39.101.010
1
14
9
15
9
17
11
16
5
8
4
10
6
2
2
1
5
12
2
1
15
7
3
3
11
8
13
35.359.010
35.736.050
35.736.050
39.101.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KMJ19990

HYDRAULIC HOSE

1шт.

2

KMJ20050

HYDRAULIC HOSE

1шт.

3

161080A1

FLANGE

2шт.

4

161096A1

O-RING

1шт.

5

862-8025

HEX SOC SCREW,M8 x 25mm, Cl 12.9

M8 x 25mm

4шт.

6

KHJ2587

O-RING

1шт.

7

KHJ14710

ADAPTER

ASSY, Incl 8

1шт.

8

150539A1

O-RING

2шт.

9

153458A1

FLANGE

3/4"

2шт.

10

161097A1

O-RING

1шт.

11

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

M10 x 30mm

4шт.

12

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

13

KHJ1765

ADAPTER

ASSY, Incl 8

1шт.

14

150498A1

MOUNTING CLIP

300mm

1шт.

15

KMJ14820

CLAMP

2шт.

16

KMJ16140

BRACKET

1шт.

17

166347A1

BOLT,Sems, M10 x 30mm

M10 x 30mm

2шт.
