(35.734.050) - VAR - 781128 - QUICK COUPLER, HYDRAULIC LINE, (ARM L=3.0M)

Запчасти Case CX145D SR LC W/BLADE (35.734.050) - VAR - 781128 - QUICK COUPLER, HYDRAULIC LINE, (ARM L=3.0M) (35) - HYDRAULIC SYSTEMS

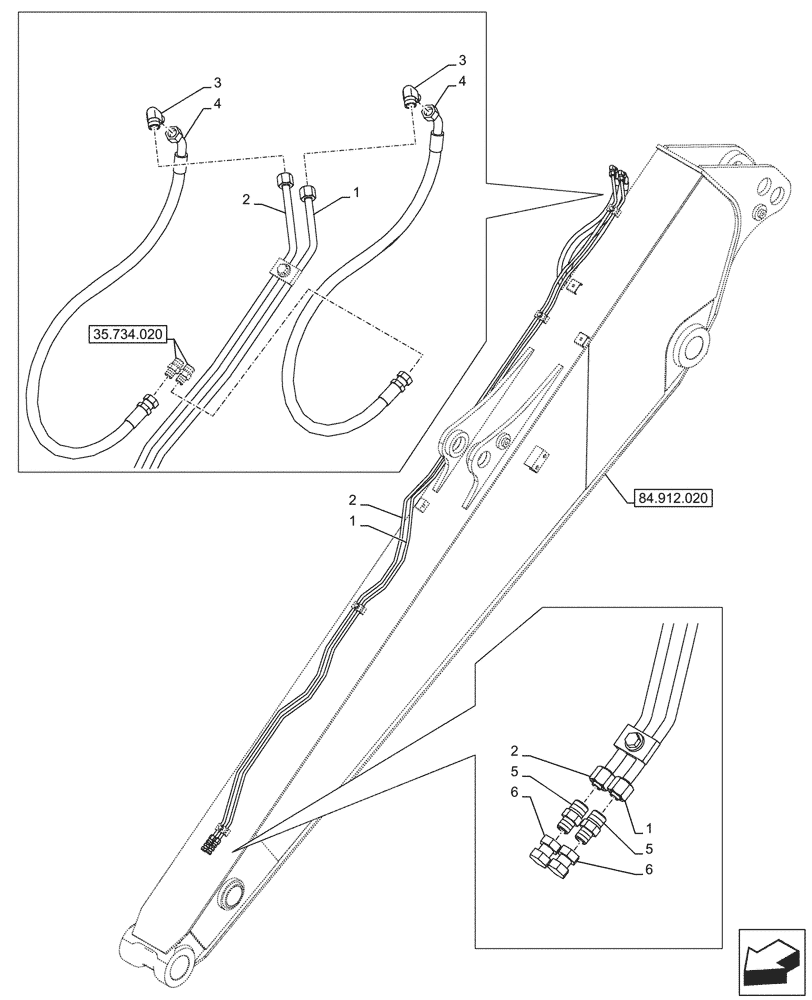

Схема запчастей Case CX145D SR LC W/BLADE - (35.734.050) - VAR - 781128 - QUICK COUPLER, HYDRAULIC LINE, (ARM L=3.0M) (35) - HYDRAULIC SYSTEMS
84.912.020
5
1
3
3
2
5
1
6
6
4
1
4
2
2
35.734.020
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KNV29380

PIPE

From Solenoid Valve

1шт.

2

KNV29390

PIPE

From Solenoid Valve

1шт.

3

KMJ0766

ELBOW

2шт.

4

KHV13870

HYDRAULIC HOSE

6mm ID x 820mm, From Solenoid Valve

2шт.

5

163065A1

UNION

2шт.

6

158842A1

PLUG

G1/4"

2шт.
