(35.734.020) - VAR - 781128 - QUICK COUPLER, HYDRAULIC LINE, BOOM

Запчасти Case CX145D SR LC W/BLADE (35.734.020) - VAR - 781128 - QUICK COUPLER, HYDRAULIC LINE, BOOM (35) - HYDRAULIC SYSTEMS

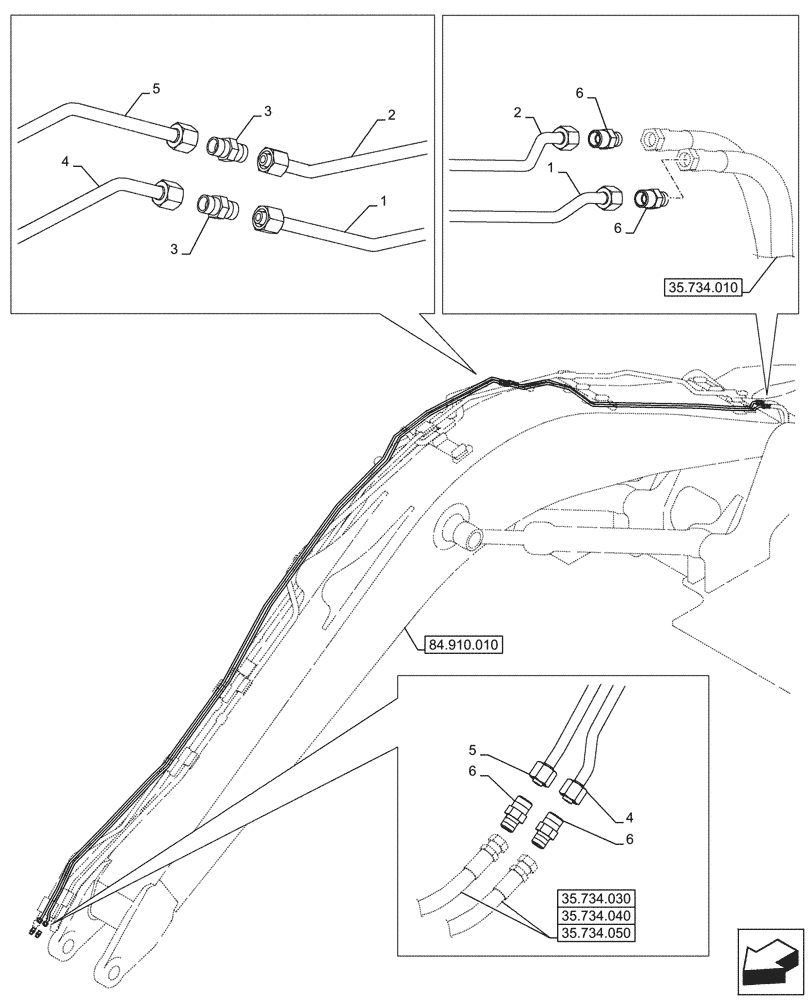

Схема запчастей Case CX145D SR LC W/BLADE - (35.734.020) - VAR - 781128 - QUICK COUPLER, HYDRAULIC LINE, BOOM (35) - HYDRAULIC SYSTEMS
84.910.010
4
2
5
5
6
4
6
1
6
1
3
3
2
6
35.734.050
35.734.010
35.734.030
35.734.040
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KMV23560

PIPE

From Solenoid Valve to Arm QuiK Coupler

1шт.

2

KMV23570

PIPE

From Solenoid Valve to Arm QuiK Coupler

1шт.

3

163029A1

UNION

2шт.

4

KMV23580

PIPE

From Solenoid Valve to Arm QuiK Coupler

1шт.

5

KMV23590

PIPE

From Solenoid Valve to Arm QuiK Coupler

1шт.

6

163065A1

UNION

4шт.

Выбрано товаров: 6
