(35.734.010) - VAR - 781128 - QUICK COUPLER, SOLENOID VALVE, HYDRAULIC LINE

Запчасти Case CX145D SR LC W/BLADE (35.734.010) - VAR - 781128 - QUICK COUPLER, SOLENOID VALVE, HYDRAULIC LINE (35) - HYDRAULIC SYSTEMS

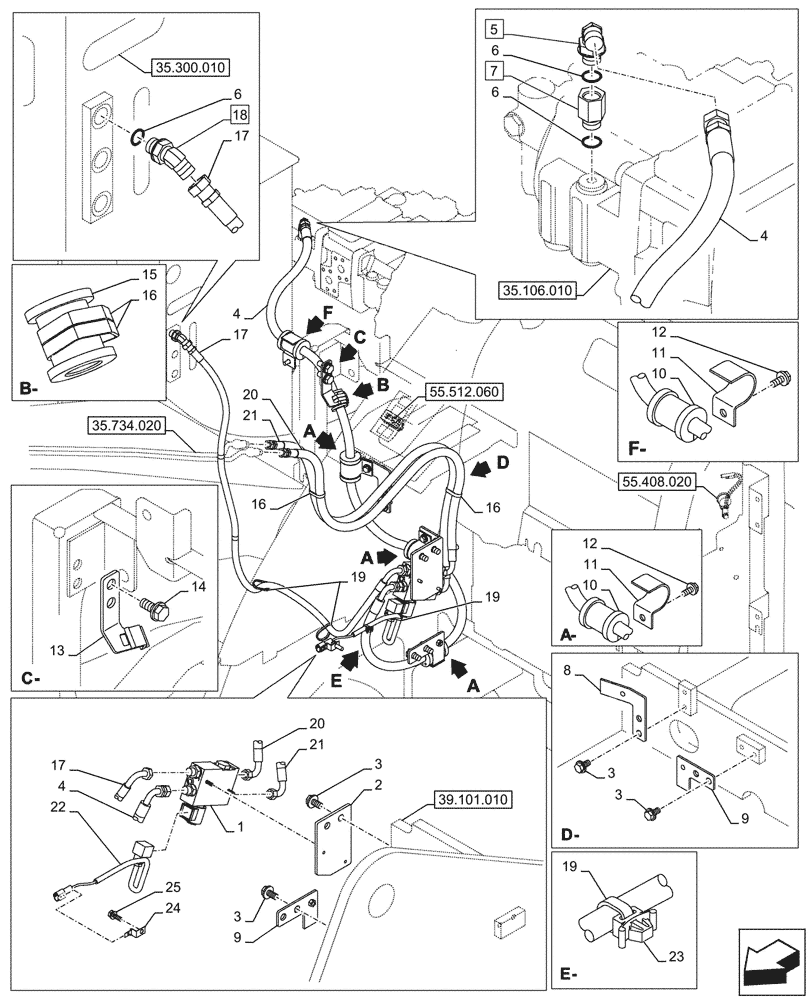

Схема запчастей Case CX145D SR LC W/BLADE - (35.734.010) - VAR - 781128 - QUICK COUPLER, SOLENOID VALVE, HYDRAULIC LINE (35) - HYDRAULIC SYSTEMS
39.101.010
9
21
12
19
3
18
8
3
12
6
4
5
9
23
19
7
13
22
20
24
2
17
19
25
14
17
1
17
16
6
20
4
16
16
6
11
11
10
21
3
15
10
4
3
55.408.020
55.512.060
35.734.020
35.300.010
35.106.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ29790

VALVE

1шт.

2

KMJ20780

BRACKET

1шт.

3

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

M12 x 25mm

8шт.

4

KHJ38550

HYDRAULIC HOSE

09mm ID x 1900mm, From hydraulic Pump to Solenoid Valve

1шт.

5

KHJ28590

ELBOW

ASSY, G3/8" x G3/8", Incl 6 (Qty 1)

1шт.

6

150031A1

O-RING,10mm ID x 24mm OD

3шт.

7

KHJ13790

STUD

ASSY, G3/8" x G3/8", Incl 6 (Qty 1)

1шт.

8

KMJ20850

BRACKET

1шт.

9

KMJ20790

BRACKET

2шт.

10

KHJ33450

HOSE CLAMP

4шт.

11

KHJ2025

CLAMP

40mm

4шт.

12

166350A1

BOLT

M8 x 20mm

4шт.

13

KMJ21640

BRACKET

1шт.

14

166352A1

BOLT

M12 x 30mm

2шт.

15

169268A1

CLAMP

1шт.

16

150071A1

MOUNTING CLIP

380mm

4шт.

17

KHJ38590

HYDRAULIC HOSE

From Oil Tank to Solenoid Valve

1шт.

18

KHJ28640

ELBOW

ASSY, G3/8" x G3/8", Incl 6 (Qty 1)

1шт.

19

150496A1

MOUNTING CLIP

250mm

4шт.

20

KHJ37070

HYDRAULIC HOSE

6mm ID x 1100mm, From Solenoid Valve to Arm QuiK Coupler

1шт.

21

KHJ31860

HYDRAULIC HOSE

6mm ID x 1150mm, From Solenoid Valve to Arm QuiK Coupler

1шт.

22

KHR39410

WIRE HARNESS

1шт.

23

KHR10220

MOUNTING CLIP

1шт.

24

158962A1

CLIP

1шт.

25

KHJ1215

BOLT,Spcl

M8 x 25mm

1шт.
