(35.360.240) - VAR - 461561, 461865, 461868, 461869, 461871 - ARM, LINES, HAMMER, SHEARS, HIGH FLOW (ARM L=2.5M)

Запчасти Case CX145D SR LC W/BLADE (35.360.240) - VAR - 461561, 461865, 461868, 461869, 461871 - ARM, LINES, HAMMER, SHEARS, HIGH FLOW (ARM L=2.5M) (35) - HYDRAULIC SYSTEMS

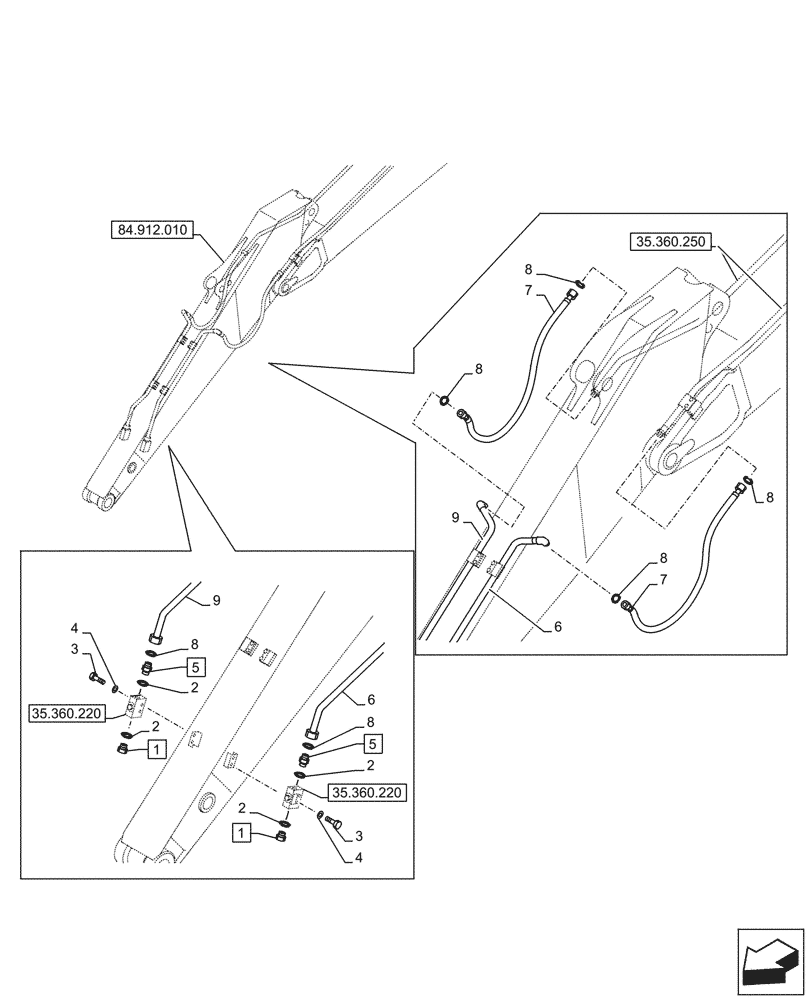

Схема запчастей Case CX145D SR LC W/BLADE - (35.360.240) - VAR - 461561, 461865, 461868, 461869, 461871 - ARM, LINES, HAMMER, SHEARS, HIGH FLOW (ARM L=2.5M) (35) - HYDRAULIC SYSTEMS
84.912.010
2
7
6
8
8
8
2
5
8
7
9
4
2
5
1
2
8
1
3
3
6
9
8
4
35.360.220
35.360.220
35.360.250
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

152924A1

PLUG

ASSY, G3/4", Incl 2 (Qty 1)

2шт.

2

150542A1

O-RING

4шт.

3

827-12075

BOLT,Hex, M12 x 1.75 x 75mm, Cl 10.9

M12 x 75mm

4шт.

4

150811A1

WASHER

4шт.

5

KHJ1348

ADAPTER

ASSY, G3/4", Incl 2 (Qty 1)

2шт.

6

KNV16840Y2

HYD TUBE

1шт.

7

KNV18870

HYDRAULIC HOSE

1350mm

1шт.

8

KHJ1360

O-RING,0.07" Thk x 0.739" ID

6шт.

9

KNV16850Y2

HYD TUBE

1шт.
