(35.360.230) - VAR - 461561, 461865, 461868, 461869, 461871 - ARM, LINES, HAMMER, SHEARS, HIGH FLOW (ARM L=3.0M)

Запчасти Case CX145D SR LC W/BLADE (35.360.230) - VAR - 461561, 461865, 461868, 461869, 461871 - ARM, LINES, HAMMER, SHEARS, HIGH FLOW (ARM L=3.0M) (35) - HYDRAULIC SYSTEMS

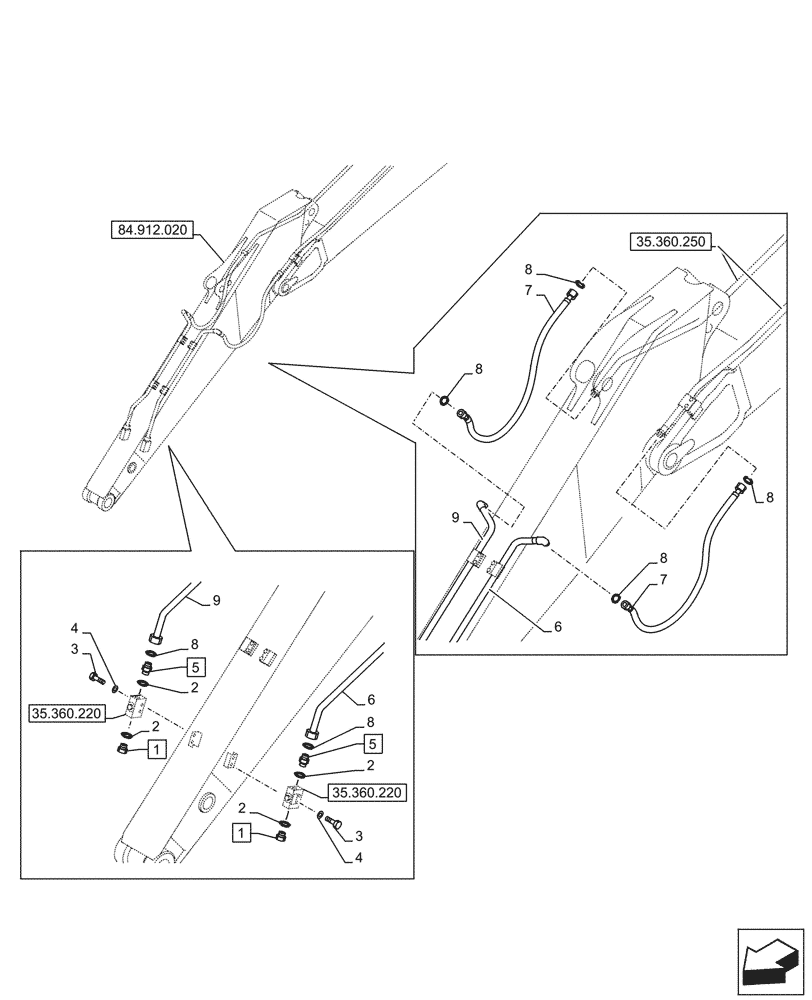

Схема запчастей Case CX145D SR LC W/BLADE - (35.360.230) - VAR - 461561, 461865, 461868, 461869, 461871 - ARM, LINES, HAMMER, SHEARS, HIGH FLOW (ARM L=3.0M) (35) - HYDRAULIC SYSTEMS
35.360.250
2
8
7
7
6
2
2
9
3
5
9
8
8
8
5
4
4
3
2
1
8
1
8
6
35.360.220
35.360.220
84.912.020
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

152924A1

PLUG

ASSY, G3/4", Incl 2 (Qty 1)

2шт.

2

150542A1

O-RING

4шт.

3

827-12075

BOLT,Hex, M12 x 1.75 x 75mm, Cl 10.9

M12 x 75mm

4шт.

4

150811A1

WASHER

4шт.

5

KHJ1348

ADAPTER

ASSY, G3/4", Incl 2 (Qty 1)

2шт.

6

KNV16840Y2

HYD TUBE

1шт.

7

KNV17310

HYDRAULIC HOSE,1800.00 mm

1800mm

2шт.

8

KHJ1360

O-RING,0.07" Thk x 0.739" ID

6шт.

9

KNV16850Y2

HYD TUBE

1шт.
