(35.360.210) - VAR - 461561, 461865, 461868, 461869, 461871 - ARM, LINES, HAMMER, SHEARS, HIGH FLOW (ARM L=2.1M)

Запчасти Case CX145D SR LC W/BLADE (35.360.210) - VAR - 461561, 461865, 461868, 461869, 461871 - ARM, LINES, HAMMER, SHEARS, HIGH FLOW (ARM L=2.1M) (35) - HYDRAULIC SYSTEMS

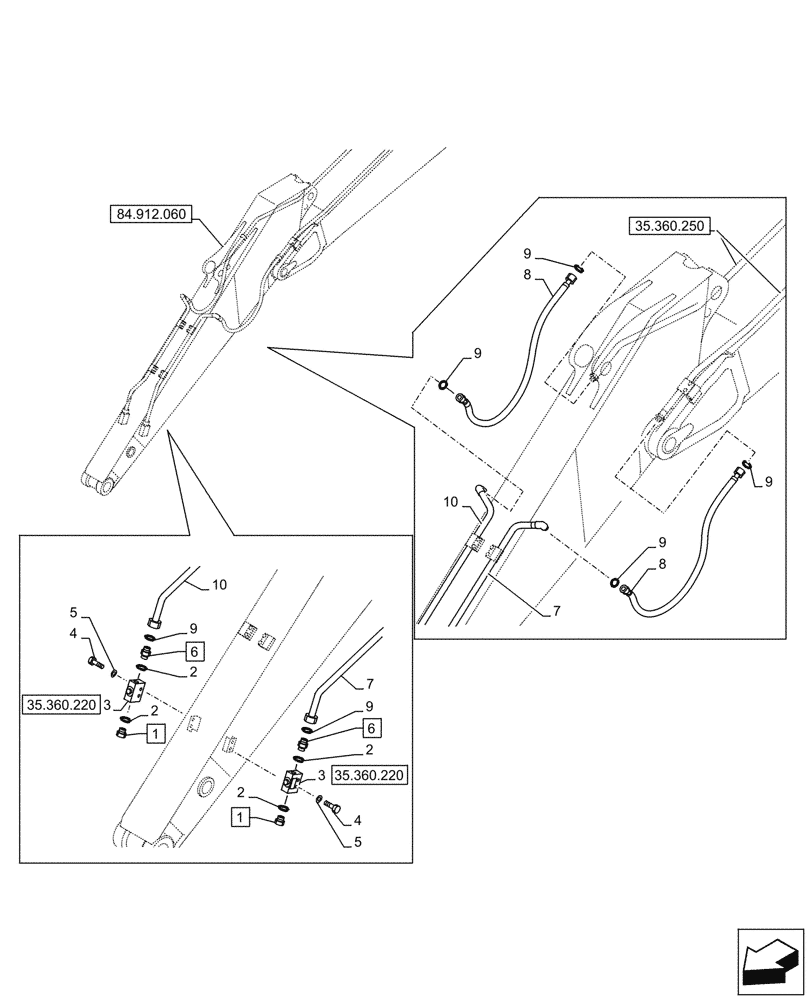

Схема запчастей Case CX145D SR LC W/BLADE - (35.360.210) - VAR - 461561, 461865, 461868, 461869, 461871 - ARM, LINES, HAMMER, SHEARS, HIGH FLOW (ARM L=2.1M) (35) - HYDRAULIC SYSTEMS
84.912.060
2
2
1
5
2
8
4
3
4
10
1
9
7
7
6
9
5
9
8
2
3
9
10
6
9
9
35.360.220
35.360.220
35.360.250
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

152924A1

PLUG

ASSY, G3/4", Incl 2 (Qty 1)

2шт.

2

150542A1

O-RING

4шт.

3

KHV10710

VALVE

ASSY, G3/4"

2шт.

4

827-12075

BOLT,Hex, M12 x 1.75 x 75mm, Cl 10.9

M12 x 75mm

4шт.

5

150811A1

WASHER

4шт.

6

KHJ1348

ADAPTER

ASSY, G3/4", Incl 2 (Qty 1)

2шт.

7

KNV15740Y2

HYD TUBE

1шт.

8

MFJ5048

HYDRAULIC HOSE

1400mm

2шт.

9

KHJ1360

O-RING,0.07" Thk x 0.739" ID

6шт.

10

KNV15750Y2

HYD TUBE

1шт.
