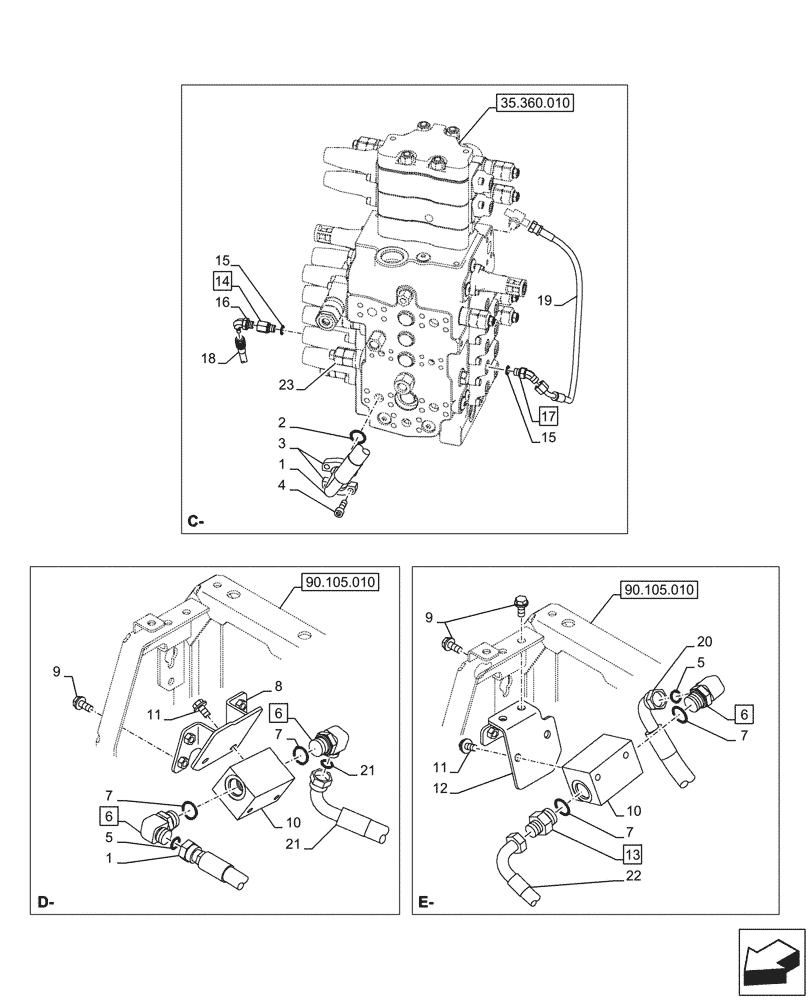

Запчасти Case CX145D SR LC W/BLADE (35.360.160) - VAR - 461865 - HAMMER CIRCUIT, LINES, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

1

KMJ20510

HYDRAULIC HOSE

19mm ID x 900mm

1шт.

2

161097A1

O-RING

1шт.

3

153458A1

FLANGE

2шт.

4

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

4шт.

5

KHJ1360

O-RING,0.07" Thk x 0.739" ID

2шт.

6

KHJ14700

ELBOW

ASSY, G1", Incl 7 (Qty 1)

2шт.

7

152211A1

O-RING

4шт.

8

KMJ20810

BRACKET

1шт.

9

166352A1

BOLT

6шт.

10

KRJ12170

MANIFOLD VALVE

2шт.

11

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

12

KMJ20820

BRACKET

1шт.

13

169040A1

ADAPTER

ASSY, G1" x G3/4", Incl 7 (Qty 1)

1шт.

14

KHJ13640

STUD

ASSY, G1/4", Incl 15(Qty 1)

1шт.

15

150960A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

16

KHJ38230

ELBOW

1шт.

17

KHJ28630

ELBOW

ASSY, G1/4" x G1/4", Incl 15(Qty 1)

1шт.

18

KHJ38730

HYDRAULIC HOSE

6mmID x 2450mm, from Solenoid Valve to Control Valve

1шт.

19

KHJ12100

HYDRAULIC HOSE

6mm ID x 520mm

1шт.

20

KMJ22570

HYDRAULIC HOSE

19mm ID x 2270mm, from Mandifold to Boom Line

1шт.

21

KMJ23260

19mm ID x 2280mm, from Mandifold to Boom Line

HYDRAULIC HOSE

1шт.

22

KMJ20580

HYDRAULIC HOSE

19mm ID x 590mm, from Manifold to Sump Tank

1шт.

23

KMJ2917

VALVE PRESSURE RELIE

1шт.
