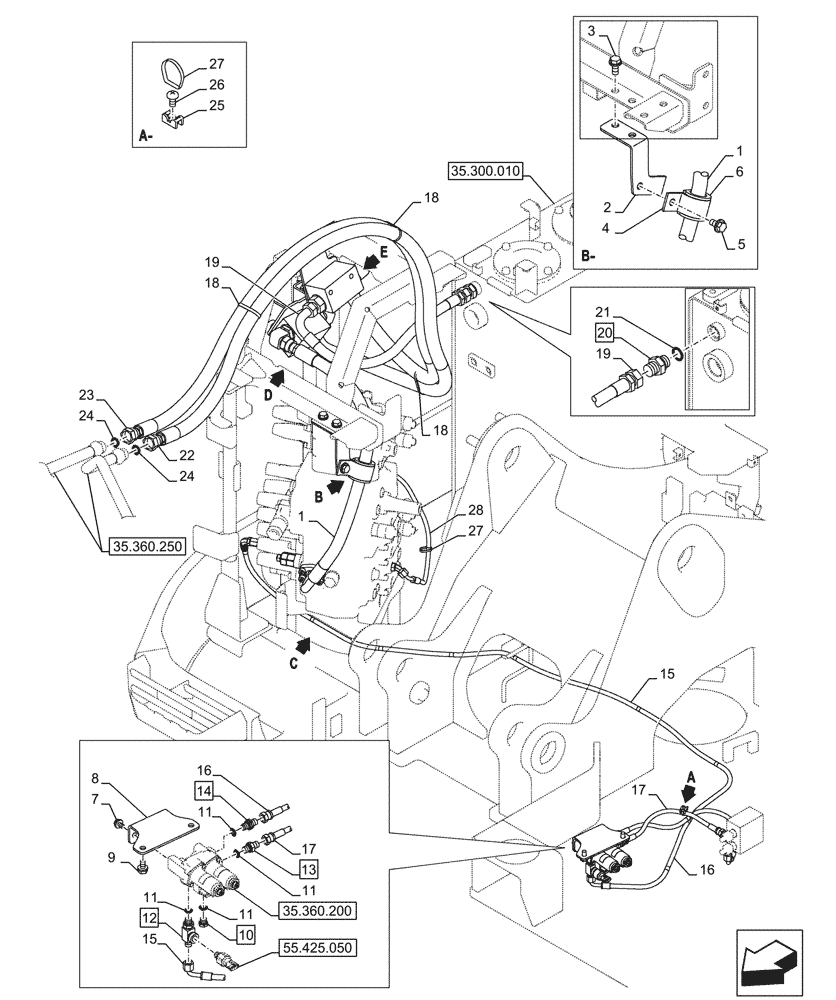

Запчасти Case CX145D SR LC W/BLADE (35.360.150) - VAR - 461865 - HAMMER CIRCUIT, LINES, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

1

KMJ20510

HYDRAULIC HOSE

1шт.

2

KMJ20830

BRACKET

1шт.

3

166352A1

BOLT

2шт.

4

KBJ11860

SUPPORT

1шт.

5

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

1шт.

6

KHJ2680

COLLAR CLAMP

1шт.

7

166345A1

BOLT

2шт.

8

KHJ28770

BRACKET

1шт.

9

166351A1

BOLT,Sems, M10 x 20mm

2шт.

10

159002A1

PLUG

ASSY, G1/4" , Incl 11 (Qty 1)

1шт.

11

150960A1

O-RING,10.8mm ID x 2.4mm Width

4шт.

12

167666A1

FITTING

ASSY, G1/4" x G1/4" x G1/4", Incl 11 (Qty 1)

1шт.

13

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, G1/4" x G1/4", Incl 11 (Qty 1)

1шт.

14

161841A1

HYD CONNECTOR

ASSY, G1/4" x G1/4", Incl 11 (Qty 1)

1шт.

15

KHJ38730

HYDRAULIC HOSE

1шт.

16

KHJ2181

HOSE

1шт.

17

KHJ2044

HOSE,6.3mm ID x 350mm L

1шт.

18

150071A1

MOUNTING CLIP

3шт.

19

KMJ20580

HYDRAULIC HOSE

19mm ID x 590mm, from Manifold to Sump Tank

1шт.

20

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

ASSY, G3/4" x G3/4", Incl 21

1шт.

21

150542A1

O-RING

1шт.

22

KMJ23260

19mm ID x 2280mm, from Mandifold to Boom Line

HYDRAULIC HOSE

1шт.

23

KMJ22570

HYDRAULIC HOSE

19mm ID x 2270mm, from Mandifold to Boom Line

1шт.

24

KHJ1360

O-RING,0.07" Thk x 0.739" ID

2шт.

25

150860A1

COLLAR

1шт.

26

145N006S008R

SCREW,Pan Hd, M6 x 8mm, Cl 10.9

1шт.

27

150496A1

MOUNTING CLIP

1шт.

28

KHJ12100

HYDRAULIC HOSE

1шт.
