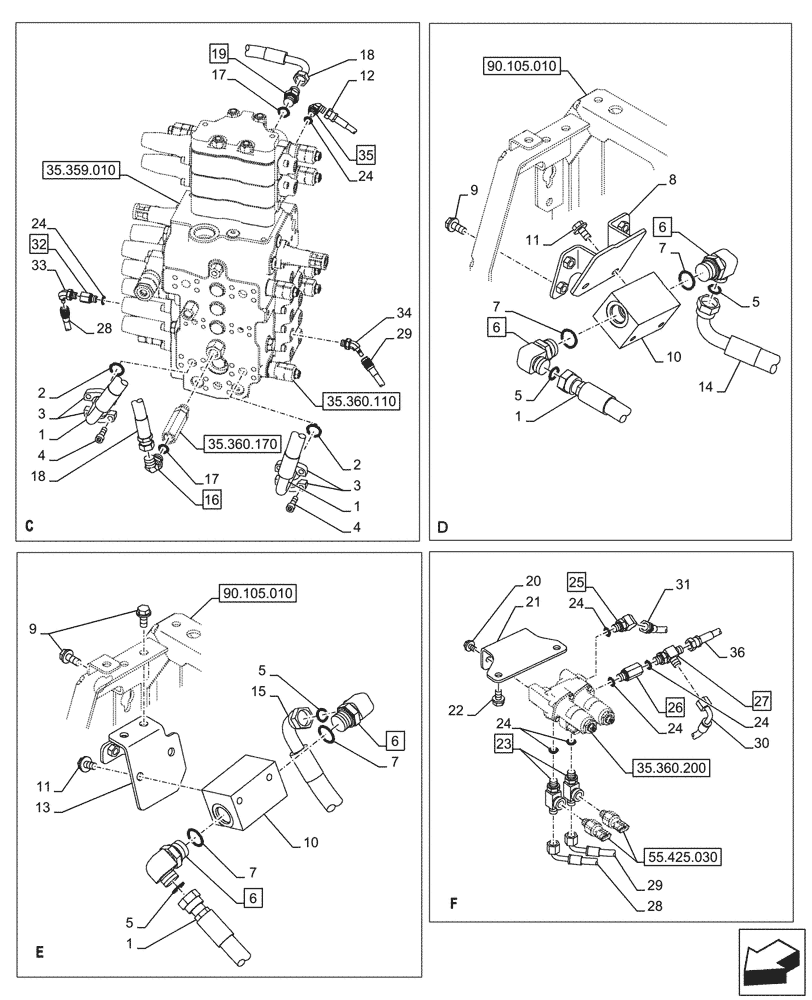

Запчасти Case CX145D SR LC W/BLADE (35.360.140) - VAR - 461871 - HAMMER CIRCUIT, LINES, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

1

KMJ20510

HYDRAULIC HOSE

From Control Valve to Manifold

2шт.

2

161097A1

O-RING

2шт.

3

153458A1

FLANGE

3/4"

4шт.

4

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

M10 x 30mm

8шт.

5

KHJ1360

O-RING,0.07" Thk x 0.739" ID

6шт.

6

KHJ14700

ELBOW

ASSY, G1" x 13/16" Incl 7 (Qty 1)

4шт.

7

152211A1

O-RING

4шт.

8

KMJ20810

BRACKET

1шт.

9

166352A1

BOLT

M12 x 30mm

7шт.

10

KRJ12170

MANIFOLD VALVE

1шт.

11

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

M12 x 25mm

4шт.

12

KHJ2380

HOSE ASSY.

6mm ID x 2100mm, From Control Valve to Solenoid Valve

1шт.

13

KMJ20820

BRACKET

1шт.

14

KMJ23260

From Bom Line to Manifold

HYDRAULIC HOSE

1шт.

15

KMJ22570

HYDRAULIC HOSE

From Bom Line to Manifold

1шт.

16

KHJ28600

ELBOW

ASSY, G1/2" x G1/2" Incl 17 (Qty 1)

1шт.

17

150539A1

O-RING

2шт.

18

KMJ20590

HYDRAULIC HOSE

From Valve Check to Control Valve

1шт.

19

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

ASSY, G1/2" x G1/2" Incl 17 (Qty 1)

1шт.

20

166345A1

BOLT

M8 x 16mm

2шт.

21

KHJ28770

BRACKET

1шт.

22

166351A1

BOLT,Sems, M10 x 20mm

M10 x 20mm

2шт.

23

167666A1

FITTING

ASSY, G1/4" x G1/4" x G1/4" Incl 24 (Qty 1)

2шт.

24

150960A1

O-RING,10.8mm ID x 2.4mm Width

7шт.

25

KHJ0994

ADAPTER

ASSY, Incl 24 (Qty 1)

1шт.

26

162525A1

STUD

ASSY, G1/4" x G1/4" Incl 24 (Qty 1)

1шт.

27

159497A1

TEE

ASSY, G1/4" x G1/4" x G1/4" Incl 24 (Qty 1)

1шт.

28

KHJ38730

HYDRAULIC HOSE

From Control Valve to Valve Reducing

1шт.

29

KHJ38740

HYDRAULIC HOSE

From Control Valve to Valve Reducing

1шт.

30

KHJ20460

FLEXIBLE HOSE

From Valve Solenoid to Valve Reducing

1шт.

31

KHJ38290

From Valve Solenoid to Control Valve

HYDRAULIC HOSE

1шт.

32

KHJ13640

STUD

ASSY, G1/4" Incl 24 (Qty 1)

1шт.

33

KHJ38230

ELBOW

G1/4" x 1/4"

1шт.

34

KHJ38260

ELBOW

G1/4" x 1/4"

1шт.

35

KHJ28580

ELBOW

ASSY, G1/4" x G1/4" Incl 24 (Qty 1)

1шт.

36

KHJ2189

HOSE ASSY.

6mm ID x 280mm, From Cushion Valve to Valve Reducing

1шт.
