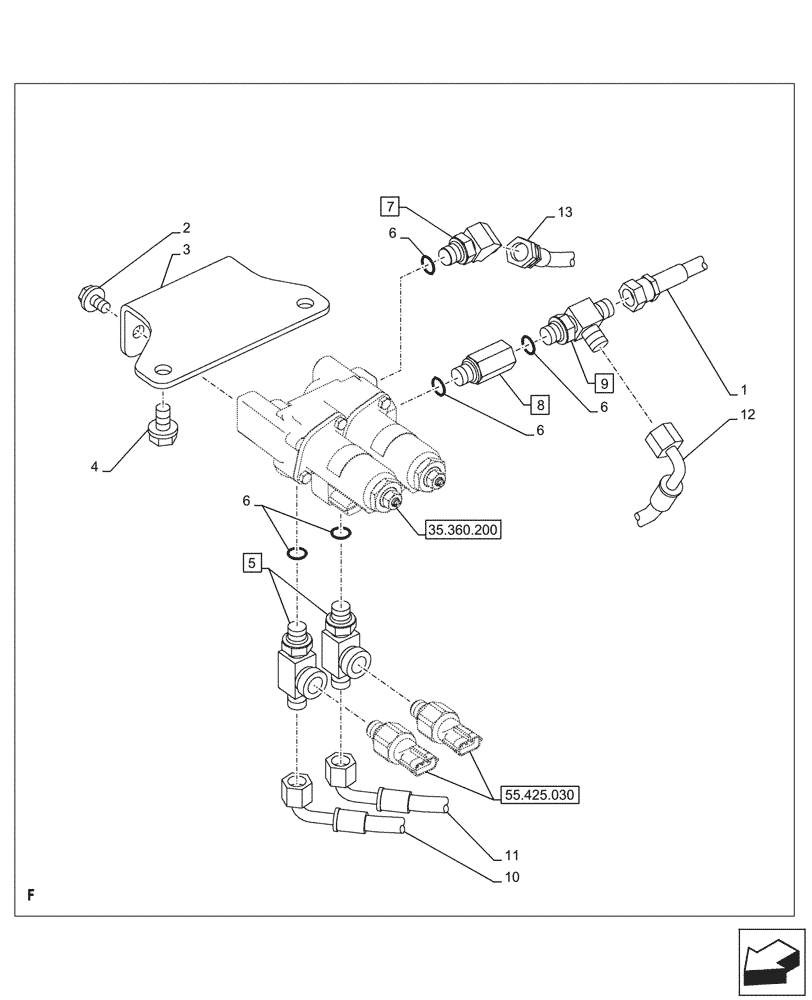

Запчасти Case CX145D SR LC W/BLADE (35.360.120) - VAR - 461868 - HAMMER CIRCUIT, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

1

KHJ2189

HOSE ASSY.

6mm ID x 280mm, From Valve Reducing to Cushion Valve

1шт.

2

166345A1

BOLT

M8 x 16mm

2шт.

3

KHJ28770

BRACKET

1шт.

4

166351A1

BOLT,Sems, M10 x 20mm

M10 x 20mm

2шт.

5

167666A1

FITTING

ASSY, G1/4" x G1/4" x G1/4" Incl 6 (Qty 1)

2шт.

6

150960A1

O-RING,10.8mm ID x 2.4mm Width

5шт.

7

KHJ0994

ADAPTER

ASSY, Incl 6 (Qty 1)

1шт.

8

162525A1

STUD

ASSY, G1/4" x G1/4" Incl 6 (Qty 1)

1шт.

9

159497A1

TEE

ASSY, G1/4" x G1/4" x G1/4" Incl 6 (Qty 1)

1шт.

10

KHJ38730

HYDRAULIC HOSE

From Valve Reducing to Control Valve

1шт.

11

KHJ38740

HYDRAULIC HOSE

From Valve Reducing to Control Valve

1шт.

12

KHJ2292

HOSE

6mm ID x 280mm, From Valve Solenoid to Valve Reducing

1шт.

13

KHJ2238

HOSE

6mm ID x 320mm, From Valve Solenoid to Valve Reducing

1шт.
