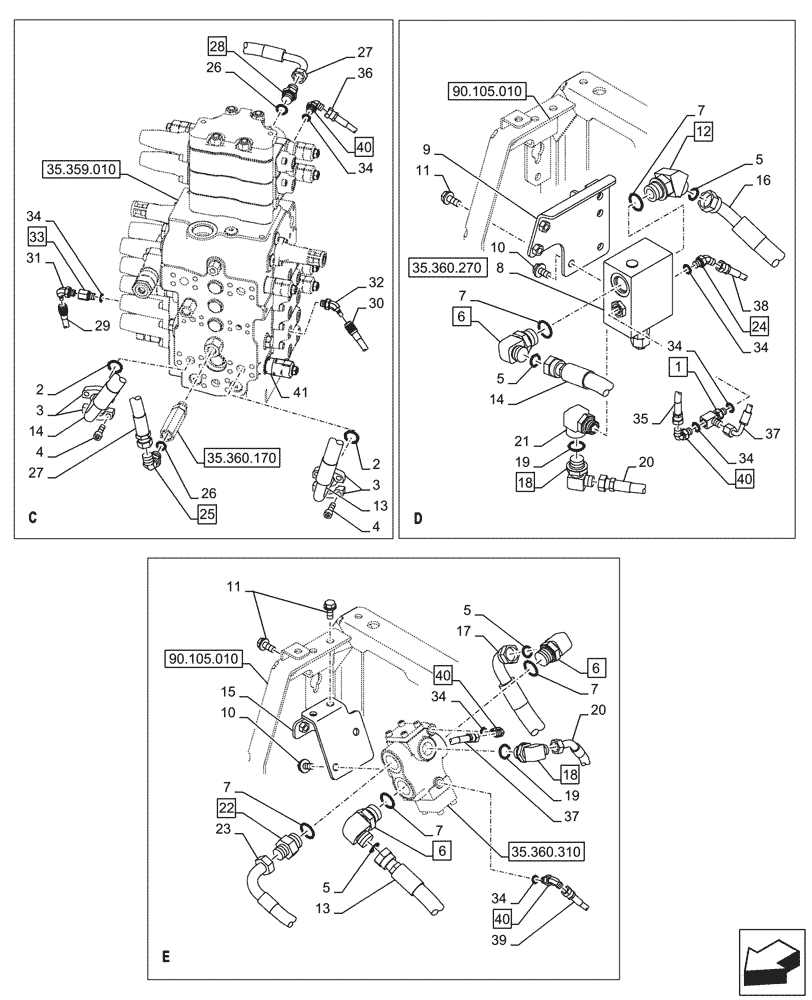

Запчасти Case CX145D SR LC W/BLADE (35.360.110) - VAR - 461868 - HAMMER CIRCUIT, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

1

KHJ2773

TEE

ASSY, G1/4" Incl 34 (Qty 1)

1шт.

2

161097A1

O-RING

2шт.

3

153458A1

FLANGE

3/4"

4шт.

4

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

M10 x 30mm

8шт.

5

KHJ1360

O-RING,0.07" Thk x 0.739" ID

6шт.

6

KHJ14700

ELBOW

ASSY, G1" x 13/16" Incl 7 (Qty 1)

3шт.

7

152211A1

O-RING

5шт.

8

KHJ10410

VALVE SECTION

1шт.

9

KMJ23200

BRACKET

1шт.

10

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

M12 x 25mm

4шт.

11

166352A1

BOLT

M12 x 30mm

7шт.

12

KHJ16290

ELBOW

ASSY, Incl 7 (Qty 1)

1шт.

13

KMJ23030

HYDRAULIC HOSE

From Valve Direction ti Control Valve

1шт.

14

KMJ23210

From Valve Shut off to Control Valve

HYDRAULIC HOSE

1шт.

15

KMJ20630

BRACKET

1шт.

16

KMJ23230

From Valve Shut off to Bom Line

HYDRAULIC HOSE

1шт.

17

KMJ22570

HYDRAULIC HOSE

From Valve Direction to Bom Line

1шт.

18

157936A1

ELBOW

ASSY, G3/4" x G1/2" Incl 19 (Qty 1)

2шт.

19

150542A1

O-RING

2шт.

20

KAJ2970

From Valve Direction to Valve Shut off

HYDRAULIC HOSE

1шт.

21

KHJ27450

ELBOW

1шт.

22

169040A1

ADAPTER

ASSY, G1" x G3/4" Incl 7 (Qty 1)

1шт.

23

KMJ20580

HYDRAULIC HOSE

From Valve Direction to Sump Tank

1шт.

24

KHJ28630

ELBOW

ASSY, G1/4" x G1/4" Incl 34 (Qty 1)

1шт.

25

KHJ28600

ELBOW

ASSY, G1/2" x G1/2" Incl 26 (Qty 1)

1шт.

26

150539A1

O-RING

2шт.

27

KMJ20590

HYDRAULIC HOSE

From Valve Check to Control Valve

1шт.

28

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

ASSY, G1/2" x G1/2"Incl 26 (Qty 1)

1шт.

29

KHJ38730

HYDRAULIC HOSE

From Valve Reducing to Control Valve

1шт.

30

KHJ38740

HYDRAULIC HOSE

From Valve Reducing to Control Valve

1шт.

31

KHJ38230

ELBOW

G1/4" x 1/4"

1шт.

32

KHJ38260

ELBOW

G1/4" x 1/4"

1шт.

33

KHJ13640

STUD

ASSY, G1/4" Incl 34 (Qty 1)

1шт.

34

150960A1

O-RING,10.8mm ID x 2.4mm Width

7шт.

35

KHJ38980

From Valve Solenoid to Valve Shut off

HYDRAULIC HOSE

1шт.

36

KHJ2255

HOSE

6mm ID x 2100mm, From Solenoid Valve to Conrol Valve

1шт.

37

KHJ2343

HOSE

6mm ID x 480mm

1шт.

38

KHJ2237

HOSE

6mm ID x 400mm, From Valve Shut off to Sump Tank

1шт.

39

KHJ2044

HOSE,6.3mm ID x 350mm L

6mm ID x 350mm, From Valve Reducing to Sump Tank

1шт.

40

KHJ28580

ELBOW

ASSY, G1/4" x G1/4" Incl 34 (Qty 1)

4шт.

41

KMJ2914

VALVE PRESSURE RELIE

ASSY

2шт.
