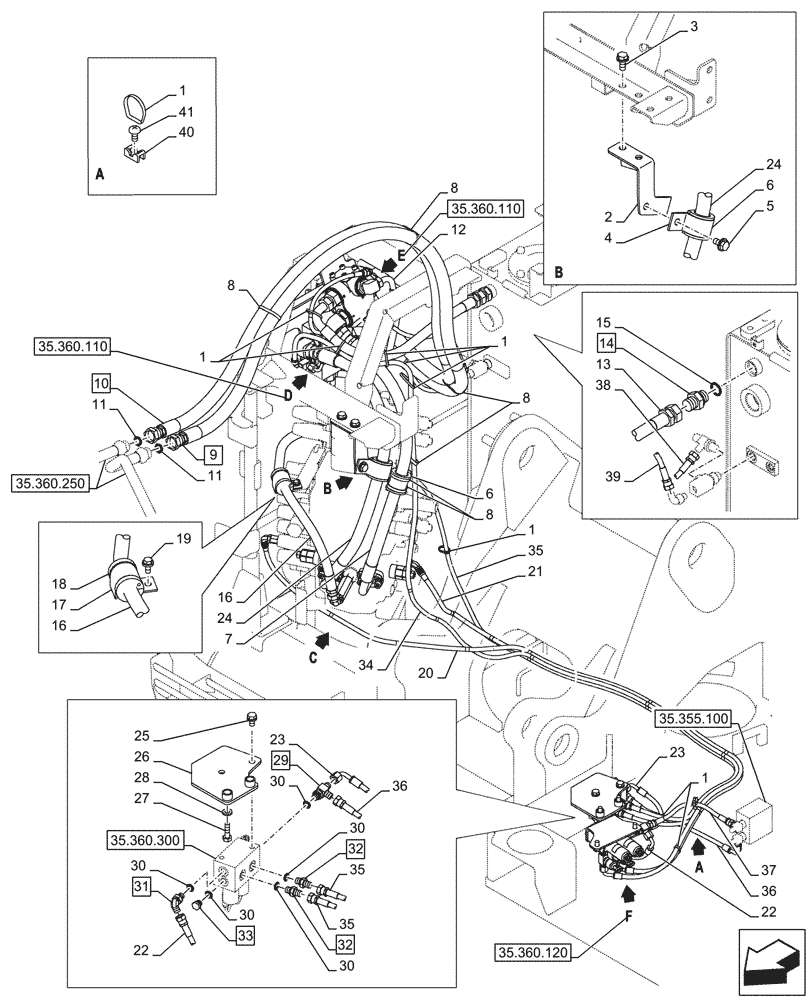

Запчасти Case CX145D SR LC W/BLADE (35.360.100) - VAR - 461868 - HAMMER CIRCUIT, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

1

150496A1

MOUNTING CLIP

250mm

9шт.

2

KMJ20830

BRACKET

1шт.

3

166352A1

BOLT

M12 x 30mm

2шт.

4

KBJ11860

SUPPORT

1шт.

5

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

M12 x 25mm

1шт.

6

KHJ2680

COLLAR CLAMP

2шт.

7

KMJ23030

HYDRAULIC HOSE

From Valve Direction ti Control Valve

1шт.

8

150071A1

MOUNTING CLIP

380mm

6шт.

9

KMJ23230

From Valve Shut off to Bom Line

HYDRAULIC HOSE

1шт.

10

KMJ22570

HYDRAULIC HOSE

From Valve Direction to Bom Line

1шт.

11

KHJ1360

O-RING,0.07" Thk x 0.739" ID

4шт.

12

KAJ2970

From Valve Direction to Valve Shut off

HYDRAULIC HOSE

1шт.

13

KMJ20580

HYDRAULIC HOSE

From Valve Direction to Sump Tank

1шт.

14

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

ASSY, G3/4" x G3/4" Incl 15

1шт.

15

150542A1

O-RING

1шт.

16

KMJ20590

HYDRAULIC HOSE

From Valve Check to Control Valve

1шт.

17

KHJ2025

CLAMP

40mm

1шт.

18

KHJ2021

HOSE CLAMP

1шт.

19

166350A1

BOLT

M8 x 20mm

1шт.

20

KHJ38730

HYDRAULIC HOSE

From Valve Reducing to Control Valve

1шт.

21

KHJ38740

HYDRAULIC HOSE

From Valve Reducing to Control Valve

1шт.

22

KHJ2292

HOSE

6mm ID x 280mm, From Valve Solenoid to Valve Reducing

1шт.

23

KHJ2238

HOSE

6mm ID x 320mm, From Valve Solenoid to Valve Reducing

1шт.

24

KMJ23210

From Valve Shut off to Control Valve

HYDRAULIC HOSE

1шт.

25

166351A1

BOLT,Sems, M10 x 20mm

M10 x 20mm

2шт.

26

KMJ22890

BRACKET

1шт.

27

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

M10 x 35mm

2шт.

28

150409A1

WASHER

M12

2шт.

29

159497A1

TEE

ASSY, G1/4" x G1/4" x G1/4" Incl 30 (Qty 1)

1шт.

30

150960A1

O-RING,10.8mm ID x 2.4mm Width

5шт.

31

KHJ28580

ELBOW

ASSY, G1/4" x G1/4" Incl 30 (Qty 1)

1шт.

32

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, G1/4" x G1/4" Incl 30 (Qty 1)

2шт.

33

159002A1

PLUG

ASSY, G1/4" Incl 30 (Qty 1)

1шт.

34

KHJ38980

From Valve Solenoid to Valve Shut off

HYDRAULIC HOSE

1шт.

35

KHJ2255

HOSE

6mm ID x 2100mm, From Solenoid Valve to Conrol Valve

1шт.

36

KHJ2342

HOSE

6mm ID x 380mm, From Solenoid Valve to Cushion Valve

1шт.

37

KHJ2189

HOSE ASSY.

6mm ID x 280mm, From Valve Reducing to Cushion Valve

1шт.

38

KHJ2237

HOSE

6mm ID x 400mm, From Valve Shut off to Sump Tank

1шт.

39

KHJ2044

HOSE,6.3mm ID x 350mm L

6mm ID x 350mm, From Valve Reducing to Sump Tank

1шт.

40

150860A1

COLLAR

1шт.

41

145N006S008R

SCREW,Pan Hd, M6 x 8mm, Cl 10.9

M6 x 8mm

1шт.
