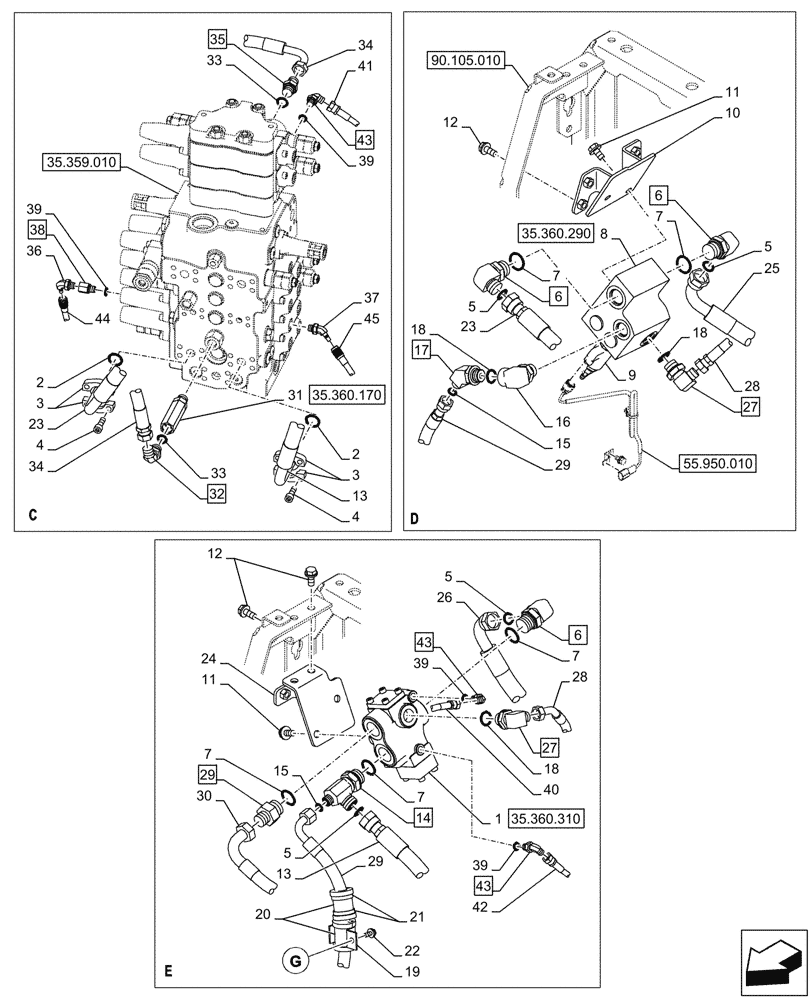

Запчасти Case CX145D SR LC W/BLADE (35.360.080) - VAR - 461869 - HAMMER CIRCUIT, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

1

KHJ10420

VALVE SECTION

ASSY

1шт.

2

161097A1

O-RING

2шт.

3

153458A1

FLANGE

3/4"

4шт.

4

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

M10 x 30mm

8шт.

5

KHJ1360

O-RING,0.07" Thk x 0.739" ID

6шт.

6

KHJ14700

ELBOW

ASSY, G1" x 13/16" Incl 7 (Qty 1)

3шт.

7

152211A1

O-RING

5шт.

8

KHJ27370

VALVE

ASSY, Incl 9

1шт.

9

KHJ27380

VALVE

1шт.

10

KMJ20610

BRACKET

1шт.

11

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

M12 x 25mm

4шт.

12

166352A1

BOLT

M12 x 30mm

7шт.

13

KMJ23030

HYDRAULIC HOSE

From Control Valve to Valve Section

1шт.

14

KHJ34830

TEE

ASSY, Incl 7 (Qty 1)

1шт.

15

KHJ2587

O-RING

2шт.

16

KHJ27450

ELBOW

1шт.

17

KHJ32301

ELBOW

ASSY, G3/4" x 13/16" Incl 18

1шт.

18

150542A1

O-RING

3шт.

19

KHJ2025

CLAMP

40mm

3шт.

20

KHJ2021

HOSE CLAMP

4шт.

21

150071A1

MOUNTING CLIP

380mm

2шт.

22

166350A1

BOLT

M8 x 20mm

3шт.

23

KMJ20510

HYDRAULIC HOSE

From Control Valve to Valve Section

1шт.

24

KMJ20630

BRACKET

1шт.

25

KMJ22560

HYDRAULIC HOSE

From Valve Relief to Bom Line

1шт.

26

KMJ22570

HYDRAULIC HOSE

From Valve Direction to Bom Line

1шт.

27

157936A1

ELBOW

ASSY, G3/4" x G1/2" Incl 18 (Qty 1)

2шт.

28

KHJ37200

HYDRAULIC HOSE

From Valve Direction to Valve Relief

1шт.

29

169040A1

ADAPTER

ASSY, G1" x G3/4" Incl 7 (Qty 1)

1шт.

30

KMJ20580

HYDRAULIC HOSE

From Valve Direction to Sump Tank

1шт.

31

KHJ20590

VALVE

ASSY

1шт.

32

KHJ28600

ELBOW

ASSY, G1/2" x G1/2" Incl 33 (Qty 1)

1шт.

33

150539A1

O-RING

2шт.

34

KMJ20590

HYDRAULIC HOSE

1шт.

35

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

ASSY, G1/2" x G1/2" Incl 33 (Qty 1)

1шт.

36

KHJ38230

ELBOW

G1/4" x 1/4"

1шт.

37

KHJ38260

ELBOW

G1/4" x 1/4"

1шт.

38

KHJ13640

STUD

ASSY, G1/4" Incl 40 (Qty 1)

1шт.

39

150960A1

O-RING,10.8mm ID x 2.4mm Width

4шт.

40

KHJ38680

HOSE

From Solenoid Valve to Valve Reducing

1шт.

41

KHJ2255

HOSE

6mm ID x 2100mm, From Solenoid Valve to Control Valve

1шт.

42

KHJ2044

HOSE,6.3mm ID x 350mm L

6mm ID x 350mm, From Valve Direction to Sump Tank

1шт.

43

KHJ28580

ELBOW

ASSY, G1/4" x G1/4" Incl 40 (Qty 1)

3шт.

44

KHJ38730

HYDRAULIC HOSE

From Control Valve to Valve Reducing

1шт.

45

KHJ38740

HYDRAULIC HOSE

From Control Valve to Valve Reducing

1шт.
