(35.360.040) - VAR - 461863 - ARM LINE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX145D SR LC W/BLADE (35.360.040) - VAR - 461863 - ARM LINE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

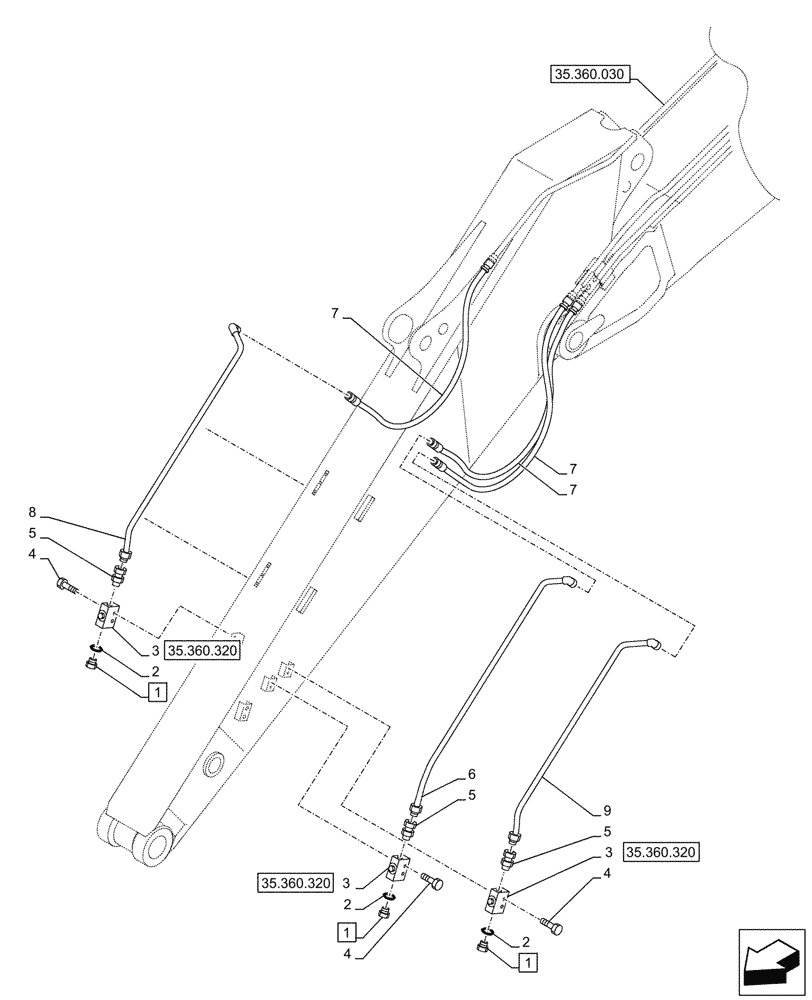

Схема запчастей Case CX145D SR LC W/BLADE - (35.360.040) - VAR - 461863 - ARM LINE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS
35.360.030
1
1
1
4
8
4
5
3
5
3
2
7
7
6
9
2
4
2
5
7
3
35.360.320
35.360.320
35.360.320
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

159085A1

PLUG

ASSY, 1/2" Incl 2

3шт.

2

150539A1

O-RING

3шт.

3

KHV10440

VALVE

ASSY G1/2"

3шт.

4

167183A1

BOLT,Sems, M12 x 60mm, Cl 10.9

6шт.

5

KHJ1939

FITTING

G1/2" x G1/2"

3шт.

6

KNV16890Y2

HYD TUBE

1шт.

7

KNV14100

HYDRAULIC HOSE,12.70 mm ID x 1400.00 mm

3шт.

8

KNV16900Y2

HYD TUBE

1шт.

9

KNV16910Y2

HYD TUBE

1шт.
