(35.360.030) - VAR - 461863 - BOOM LINE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX145D SR LC W/BLADE (35.360.030) - VAR - 461863 - BOOM LINE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

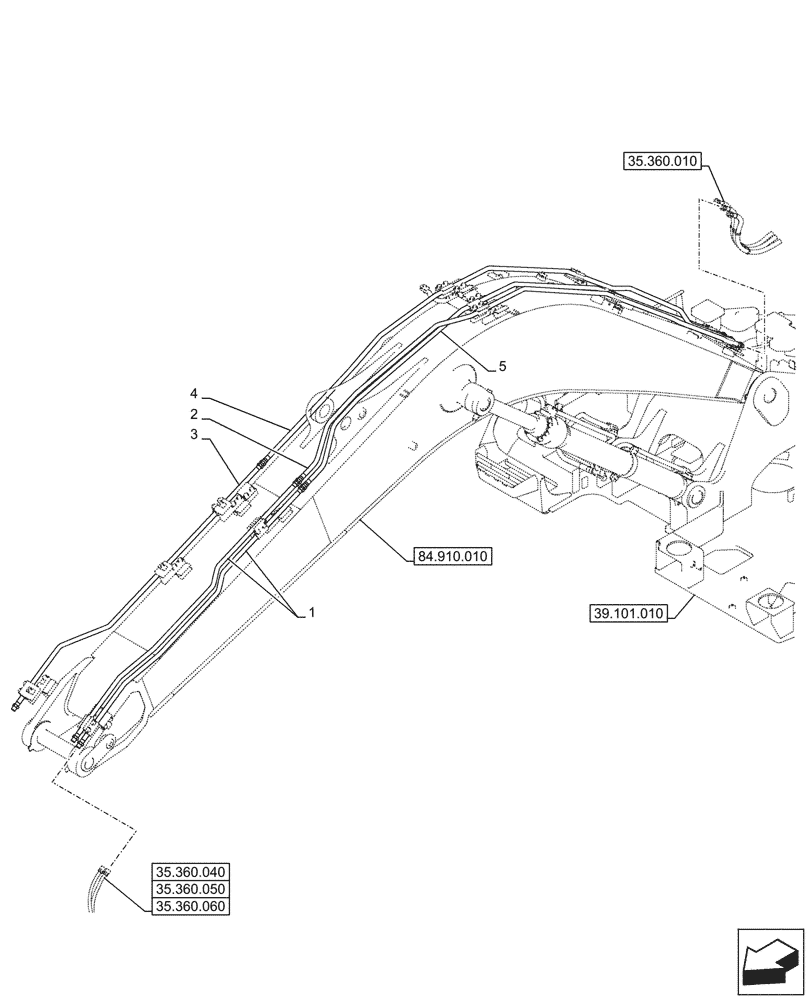

Схема запчастей Case CX145D SR LC W/BLADE - (35.360.030) - VAR - 461863 - BOOM LINE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS
39.101.010
3
2
4
5
1
84.910.010
35.360.010
35.360.050
35.360.040
35.360.060
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KNV13970Y2

HYD TUBE

2шт.

2

KMV23530

PIPE

1шт.

3

KNV13980Y2

HYD TUBE

1шт.

4

KMV23540

PIPE

1шт.

5

KMV23551

PIPE

1шт.
