(35.360.010) - VAR - 461863 - HYDRAULIC LINE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX145D SR LC W/BLADE (35.360.010) - VAR - 461863 - HYDRAULIC LINE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

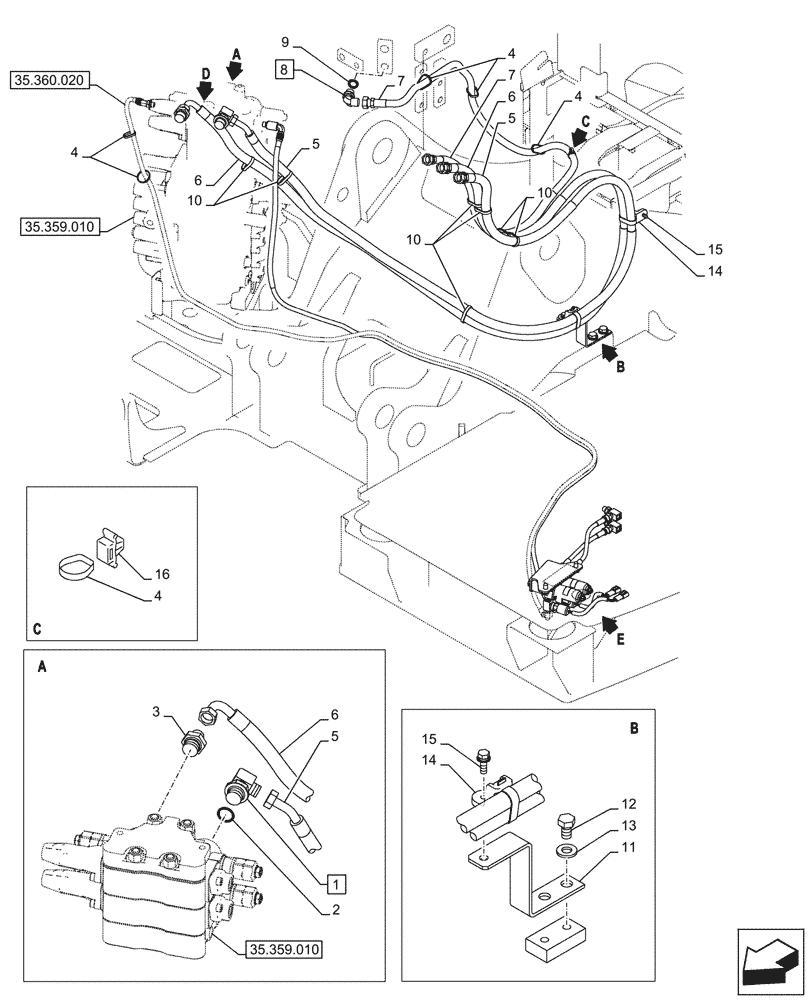

Схема запчастей Case CX145D SR LC W/BLADE - (35.360.010) - VAR - 461863 - HYDRAULIC LINE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS
35.360.020
3
2
8
10
6
6
9
13
4
4
14
4
1
4
5
11
7
7
5
5
6
15
10
10
16
15
14
12
35.359.010
35.359.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

157936A1

ELBOW

ASSY, G3/4" x G1/2" Incl 2

1шт.

2

150542A1

O-RING

1шт.

3

168988A1

ADAPTER

G1/2" x G3/4"

1шт.

4

150496A1

MOUNTING CLIP

250mm

6шт.

5

KMJ22370

HYDRAULIC HOSE

1шт.

6

KMJ22380

HYDRAULIC HOSE

1шт.

7

KMJ20490

HYDRAULIC HOSE

1шт.

8

KHJ28600

ELBOW

ASSY, G1/2" x G1/2" Incl 9

1шт.

9

150539A1

O-RING

1шт.

10

150071A1

MOUNTING CLIP

380mm

7шт.

11

KMJ22390

BRACKET

1шт.

12

627-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 10.9, Full Thd

M12 x 20mm

2шт.

13

150811A1

WASHER

2шт.

14

KHR2581

CLAMP

M8

2шт.

15

KHJ1215

BOLT,Spcl

M8 x 25mm

2шт.

16

KHR10220

MOUNTING CLIP

1шт.
