(35.359.100) - VAR - 461863 - CONTROL VALVE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, COMPONENTS

Запчасти Case CX145D SR LC W/BLADE (35.359.100) - VAR - 461863 - CONTROL VALVE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, COMPONENTS (35) - HYDRAULIC SYSTEMS

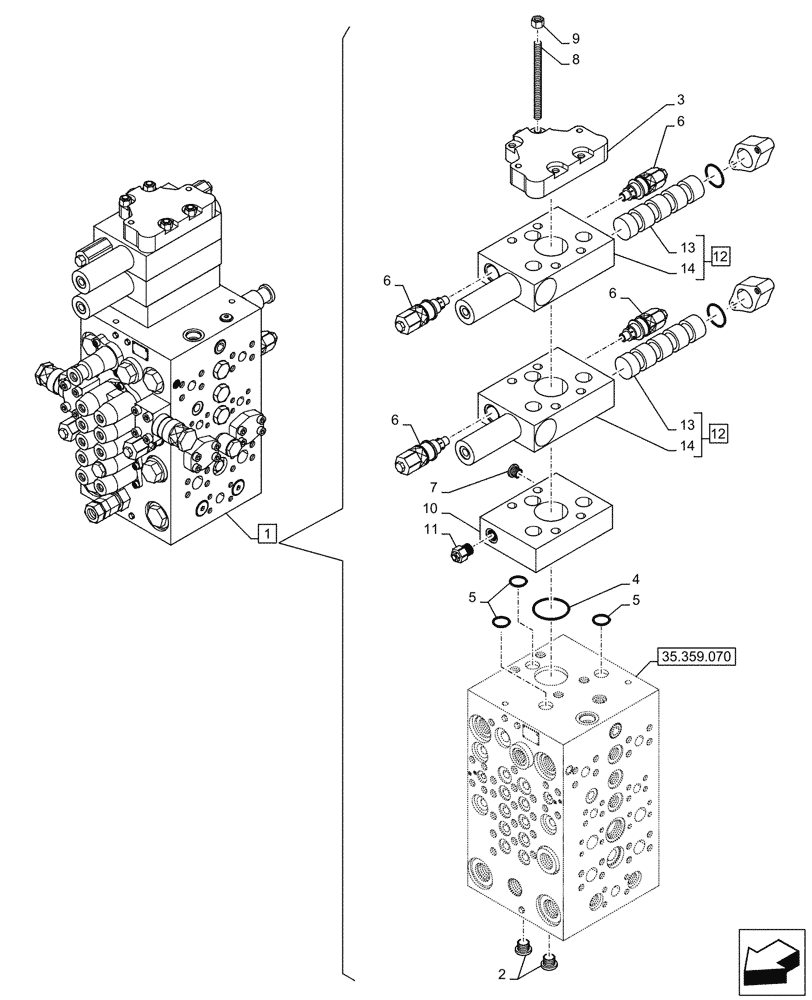

Схема запчастей Case CX145D SR LC W/BLADE - (35.359.100) - VAR - 461863 - CONTROL VALVE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, COMPONENTS (35) - HYDRAULIC SYSTEMS
12
6
13
3
12
13
10
4
14
11
6
6
1
7
2
6
14
5
5
9
8
35.359.070
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KMJ21980

CONTROL VALVE

ASSY, Incl 2 - 14

1шт.

See also Figure 35.359.070, 35.359.080, 35.359.090

1шт.

2

163369A1

PLUG

1шт.

3

LT002550

HOUSING

1шт.

4

LE027200

O-RING

1шт.

5

LE012520

O-RING

3шт.

6

LJ01007

VALVE, PRESSURE RELI

4шт.

7

163370A1

PLUG

1шт.

8

LB012110

TIE-ROD

4шт.

9

LUC0094

SPECIAL NUT

4шт.

10

LJ014770

CONNECTING BLOCK

4шт.

11

LJ014780

CHECK VALVE

1шт.

12

LJ014760

HYD VALVE SECTION

ASSY, Incl 13, 14

2шт.

13

NSS

NOT SOLD SEPARAT

Spool, Incl in 12

1шт.

14

NSS

NOT SOLD SEPARAT

Body , Incl in 12

1шт.
