(35.359.060) - VAR - 461863 - CONTROL VALVE, MOUNTING, BRACKET, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX145D SR LC W/BLADE (35.359.060) - VAR - 461863 - CONTROL VALVE, MOUNTING, BRACKET, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

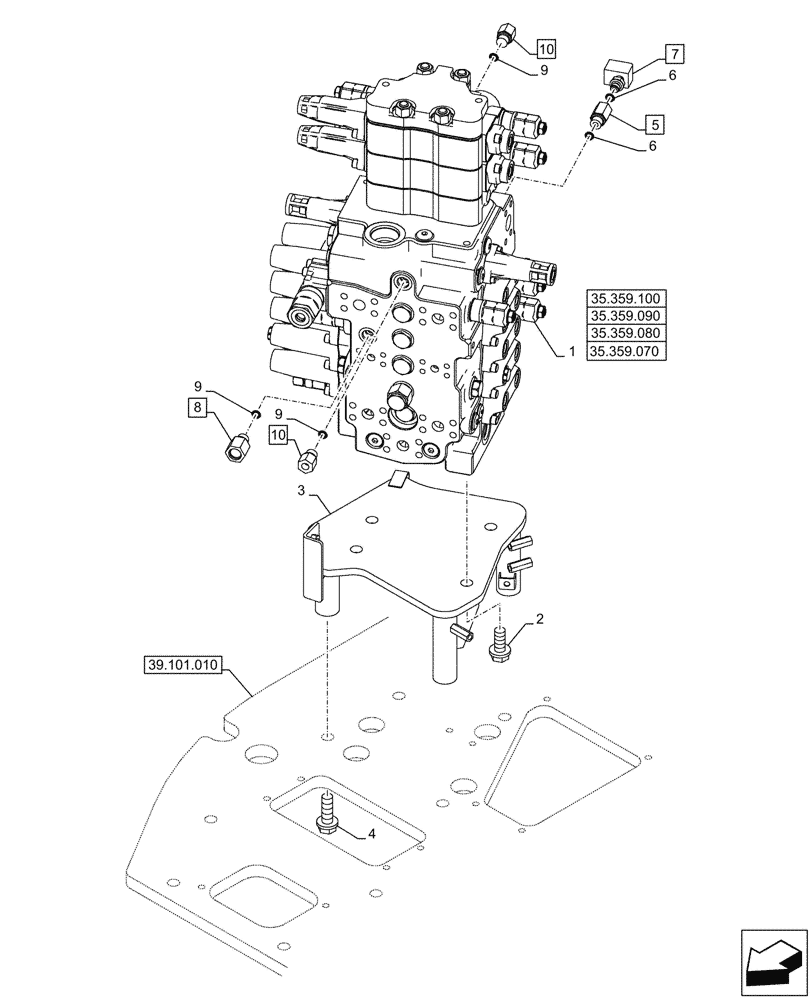

Схема запчастей Case CX145D SR LC W/BLADE - (35.359.060) - VAR - 461863 - CONTROL VALVE, MOUNTING, BRACKET, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS
39.101.010
1
10
3
9
4
2
9
6
6
9
5
8
7
10
35.359.080
35.359.070
35.359.100
35.359.090
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KMJ21980

CONTROL VALVE

ASSY

1шт.

2

166373A1

BOLT,Sems, M16 x 40mm

4шт.

3

KMJ22161

BRACKET

1шт.

4

165929A1

BOLT,Sems, M16

M16 x 50mm

4шт.

5

KHJ1212

STUD

ASSY, G3/8" x G1/4"Incl 6 (Qty 1)

1шт.

6

150960A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

7

KHJ31800

ELBOW

ASSY, G1/4" x M18, Incl 6 (Qty 1)

1шт.

8

KHJ18190

STUD

ASSY, G3/8" x M18, Incl 9 (Qty 1)

1шт.

9

150031A1

O-RING,10mm ID x 24mm OD

3шт.

10

168855A1

STUD

ASSY, G3/8" x G1/4", Incl 9 (Qty 1)

2шт.
