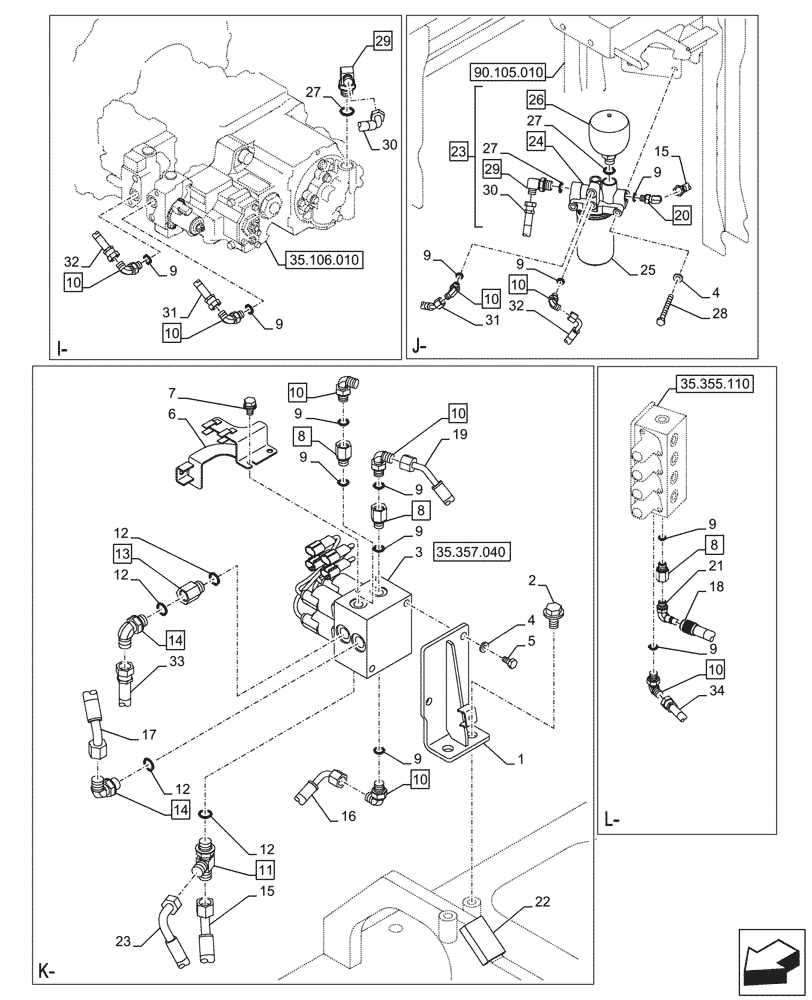

Запчасти Case CX145D SR LC W/BLADE (35.357.030) - PILOT VALVE, CONTROL VALVE LINE (35) - HYDRAULIC SYSTEMS

1

KMJ22670

BRACKET

1шт.

2

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

3

KHJ15450

SOLENOID VALVE

ASSY

1шт.

4

150409A1

WASHER

2шт.

5

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

2шт.

6

KMJ22900

BRACKET

1шт.

7

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

2шт.

8

KHJ13640

STUD

ASSY, G1/4", Incl 9 (Qty 1)

3шт.

9

150960A1

O-RING,10.8mm ID x 2.4mm Width

12шт.

10

KHJ28580

ELBOW

ASSY, G1/4" x G1/4", Incl 9 (Qty 1)

6шт.

11

164107A1

TEE,3/8" ORB x 3/8" - 19 NPT x 3/8" - 19 NPT

ASSY, G3/8" x G3/8" x G3/8", Incl 12 (Qty 1)

1шт.

12

150031A1

O-RING,10mm ID x 24mm OD

4шт.

13

KHJ13790

STUD

ASSY, G3/8" x G3/8", Incl 12 (Qty 1)

1шт.

14

KHJ28590

ELBOW

ASSY, G3/8" x G3/8", Incl 12 (Qty 1)

2шт.

15

KHJ32070

HYDRAULIC HOSE

9mm ID x 2600mm

1шт.

16

KHJ2097

HOSE

6mm ID x 1750mm, from Swing Motor to Solenoid Valve

1шт.

17

KHJ21000

HOSE

9mm ID x 560mm, from Sump Tank to Solneoid Valve

1шт.

18

KHJ38820

HYDRAULIC HOSE

9mm ID x 1200mm

1шт.

19

KHJ38610

HYDRAULIC HOSE

6mm ID x 1400mm, from Control Valve to Solenoid Valve

1шт.

20

KHJ28710

ELBOW

ASSY, G1/4" x G3/8", Incl 9 (Qty 1)

1шт.

21

KHJ38620

ELBOW

1шт.

22

KMJ22970

CUSHION

1шт.

23

KHJ17710

FILTER ASSY

ASSY, Incl 24 - 27

1шт.

24

KHJ17720

FILTER HEAD

ASSY, Incl 25

1шт.

25

KHJ17730

HYDRAULIC OIL FILTER

1шт.

26

KHJ2359

ACCUMULATOR

ASSY, Incl 27 (Qty 1)

1шт.

27

150539A1

O-RING

1шт.

28

814-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8

2шт.

29

157935A1

ELBOW

ASSY, G1/2" x G3/8", Incl 27 (Qty 1)

2шт.

30

KHJ38900

HYDRAULIC HOSE

9mm ID x 330mm

1шт.

31

KHJ38630

HOSE

6mm ID x 1200mm

1шт.

32

KHJ38640

HOSE

6mm ID x 1100mm

1шт.

33

KHJ14260

HOSE

9mm ID x 1900mm, from Manifold to Solenoid Valve

1шт.

34

KHJ2310

HOSE

6mm ID x 1350mm, from Manifold to Sump Tank

1шт.
