(35.357.020) - PILOT VALVE, CONTROL VALVE LINE

Запчасти Case CX145D SR LC W/BLADE (35.357.020) - PILOT VALVE, CONTROL VALVE LINE (35) - HYDRAULIC SYSTEMS

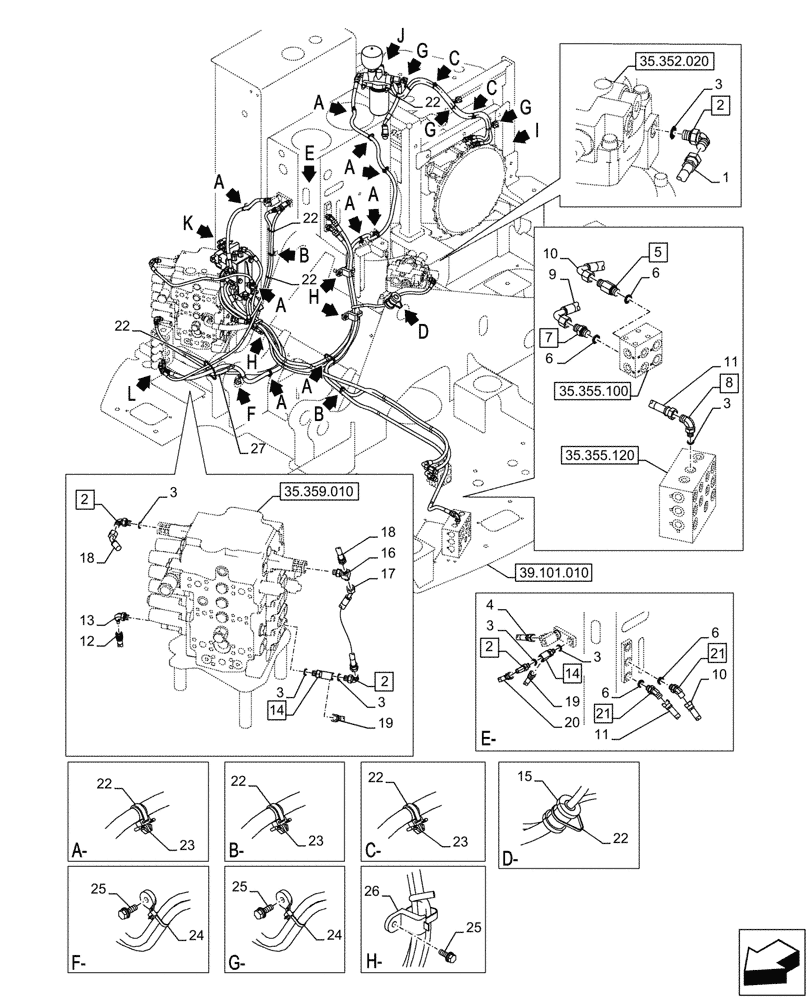

Схема запчастей Case CX145D SR LC W/BLADE - (35.357.020) - PILOT VALVE, CONTROL VALVE LINE (35) - HYDRAULIC SYSTEMS
35.352.020
22
23
19
4
9
25
15
14
25
3
18
27
10
6
22
22
3
3
24
23
24
7
18
6
6
6
22
22
3
3
22
22
14
17
1
2
5
21
23
21
20
19
25
22
3
2
11
11
2
2
3
12
16
10
13
8
26
35.355.100
35.355.120
35.359.010
39.101.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ2097

HOSE

1шт.

2

KHJ28580

ELBOW

ASSY, G1/4" x G1/4", Incl 3 (Qty 1)

4шт.

3

150960A1

O-RING,10.8mm ID x 2.4mm Width

6шт.

4

KHJ21000

HOSE

1шт.

5

159226A1

ADAPTER

ASSY, G3/8" x G3/8", Incl 6 (Qty 1)

1шт.

6

150031A1

O-RING,10mm ID x 24mm OD

4шт.

7

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ASSY, G3/8" x G3/8", Incl 6 (Qty 1)

1шт.

8

KHJ28710

ELBOW

ASSY, G1/4" x G3/8", Incl 3 (Qty 1)

1шт.

9

KHJ14260

HOSE

9mm ID x 1900mm, from Manifold to Solenoid Valve

1шт.

10

KHJ11020

HYDRAULIC HOSE

9mm ID x 2050mm

1шт.

11

KHJ2383

HOSE

9mm ID x 2350mm

1шт.

12

KHJ38610

HYDRAULIC HOSE

1шт.

13

KHJ38230

ELBOW

1шт.

14

KHJ2773

TEE

ASSY, G1/4" x G1/4" x G1/4", Incl 3 (Qty 1)

2шт.

15

KHJ2021

HOSE CLAMP

1шт.

16

167321A1

TEE

1шт.

17

KHJ25160

HOSE

6mm ID x 230mm

1шт.

18

KHJ37140

HOSE

6mm ID x 660mm

1шт.

19

KHJ19260

HOSE

6mm ID x 800mm

1шт.

20

KHJ2310

HOSE

6mm ID x 1350mm, from Manifold to Sump Tank

1шт.

21

KHJ28640

ELBOW

ASSY, G3/8" x G3/8", Incl 6 (Qty 1)

2шт.

22

150496A1

MOUNTING CLIP

10шт.

23

KHR10220

MOUNTING CLIP

9шт.

24

KHR2584

CLAMP

4шт.

25

KHJ1215

BOLT,Spcl

6шт.

26

KHR2581

CLAMP

3шт.

27

KMJ3056

GASKET

1шт.
