(35.355.150) - VAR - 461558 - JOYSTICK, HYDRAULIC LINE, CONTROL VALVE, CONTROL PATTERN SELECTION

Запчасти Case CX145D SR LC W/BLADE (35.355.150) - VAR - 461558 - JOYSTICK, HYDRAULIC LINE, CONTROL VALVE, CONTROL PATTERN SELECTION (35) - HYDRAULIC SYSTEMS

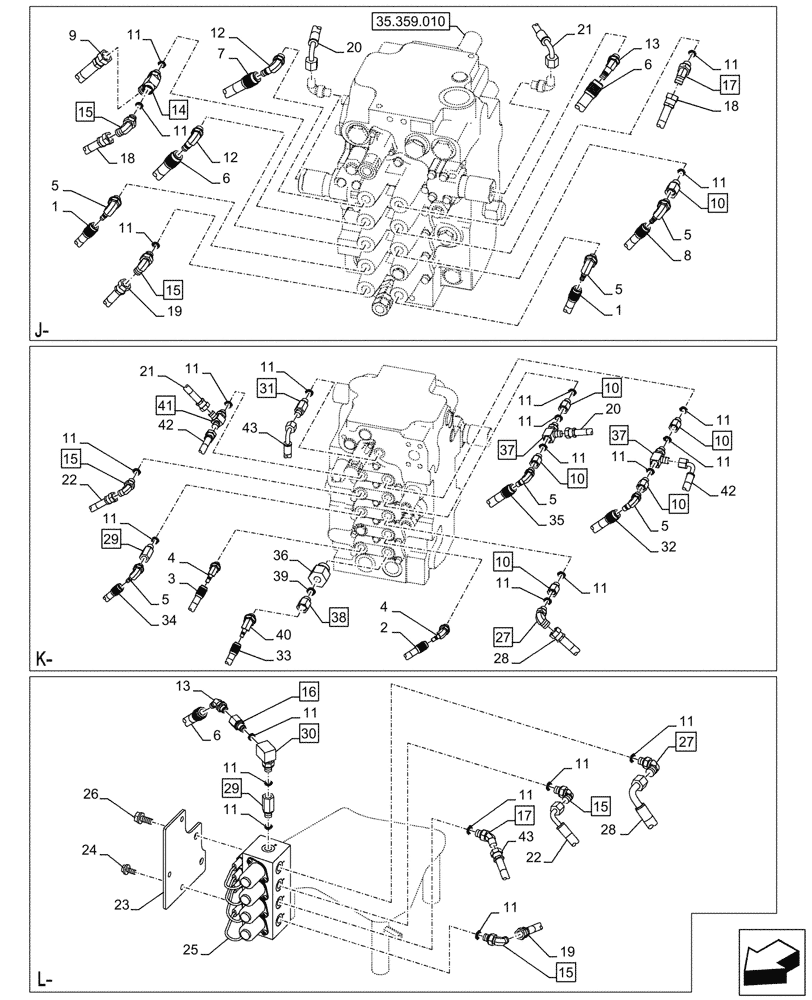

Схема запчастей Case CX145D SR LC W/BLADE - (35.355.150) - VAR - 461558 - JOYSTICK, HYDRAULIC LINE, CONTROL VALVE, CONTROL PATTERN SELECTION (35) - HYDRAULIC SYSTEMS
35.359.010
20
18
11
11
15
18
20
5
7
11
37
11
26
8
10
11
11
28
11
11
11
39
12
30
3
37
9
19
27
6
15
11
17
29
10
1
43
27
10
1
10
42
34
4
16
5
21
11
25
19
11
15
11
36
17
15
5
11
11
22
10
6
24
42
5
35
13
11
23
33
38
11
43
11
4
15
31
11
11
12
11
14
22
28
32
11
6
41
2
10
40
5
21
5
13
11
11
29
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ38730

HYDRAULIC HOSE

6m ID x 2450mm, from Remote Control Valve to Manifold

1шт.

2

KHJ38770

HYDRAULIC HOSE

6mm ID x 2050mm, from Remote Control Valve to Manifold

1шт.

3

KHJ38740

HYDRAULIC HOSE

6mm ID x 1900mm, from Remote Control Valve to Manifold

1шт.

4

KHJ38260

ELBOW

2шт.

5

KHJ38230

ELBOW

6шт.

6

KHJ38120

HYDRAULIC HOSE

9mm ID x 2650mm, from Valve Selector to Control Valve

3шт.

7

KHJ38600

HYDRAULIC HOSE

9mm ID x 2650mm, from Valve Cushion to Control Valve

1шт.

8

KHJ38170

HYDRAULIC HOSE

6mm ID 2500mm , from Valve Cushion to Control Valve

1шт.

9

KHJ38830

HYDRAULIC HOSE

9mm ID x 2600mm, from Valve Cushion to Control Valve

1шт.

10

KHJ13640

STUD

ASSY, G1/4", Incl 11 (Qty 1)

6шт.

11

150960A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

12

KHJ38620

ELBOW

2шт.

13

KHJ38890

ELBOW

2шт.

14

KHJ11560

TEE

ASSY, G1/4" x G3/8" x G1/4", Incl 11 (Qty 1)

1шт.

15

KHJ28580

ELBOW

ASSY, G1/4" x G1/4", Incl 11 (Qty 1)

5шт.

16

KHJ25100

STUD

ASSY, G1/4", Incl 11 (Qty 1)

1шт.

17

KHJ28630

ELBOW

ASSY, G1/4" x G1/4", Incl 11 (Qty 1)

2шт.

18

KHJ2190

HOSE

6mm ID x 240mm

2шт.

19

KHJ2240

HOSE

6mm ID x 450mm

1шт.

20

KHJ37220

HOSE

6mm ID x 450mm

1шт.

21

KHJ2179

HOSE

6mm ID x 450mm

1шт.

22

KHJ2085

HOSE

6mm ID x 600mm

1шт.

23

KMJ23020

BRACKET

1шт.

24

166052A1

BOLT

1шт.

25

KHJ36540

VALVE

1шт.

26

166350A1

BOLT

3шт.

27

KHJ28710

ELBOW

ASSY, G1/4" x G3/8", Incl 11 (Qty 1)

2шт.

28

KHJ33790

HOSE

9mm ID x 800mm

1шт.

29

162525A1

STUD

ASSY, G1/4" x G1/4", Incl 11 (Qty 1)

2шт.

30

KHJ0719

ELBOW

ASSY, G1/4" x G1/4", Incl 11 (Qty 1)

1шт.

31

162554A1

FITTING

ASSY, G1/4" x G1/4", Incl 11 (Qty 1)

1шт.

32

KHJ38850

HYDRAULIC HOSE

9mm ID x 2200mm, from Cushion Valve to Control Valve

1шт.

33

KHJ38860

HYDRAULIC HOSE

6mm ID x 1900mm, from Valve Cushion to Control Valve

1шт.

34

KHJ38870

HYDRAULIC HOSE

6mm ID x 2050mm, from Valve Cushion to Control Valve

1шт.

35

KHJ38840

HYDRAULIC HOSE

9mm ID x 2100mm, from Valve Cushion to Control Valve

1шт.

36

168733A1

ADAPTER

1шт.

37

KHJ2773

TEE

ASSY, G1/4" x G1/4" x G1/4", Incl 11 (Qty 1)

2шт.

38

KHJ13790

STUD

ASSY, G3/8" x G3/8", Incl 39

1шт.

39

150031A1

O-RING,10mm ID x 24mm OD

1шт.

40

KHJ38280

ELBOW

1шт.

41

159497A1

TEE

ASSY, G1/4" x G1/4" x G1/4", Incl 11 (Qty 1)

1шт.

42

KHJ20460

FLEXIBLE HOSE

6mm ID x 300mm

1шт.

43

KHJ28410

HYDRAULIC HOSE

6mm ID x 750mm

1шт.
