(35.355.140) - VAR - 461558 - JOYSTICK, HYDRAULIC LINE, CONTROL VALVE, CONTROL PATTERN SELECTION

Запчасти Case CX145D SR LC W/BLADE (35.355.140) - VAR - 461558 - JOYSTICK, HYDRAULIC LINE, CONTROL VALVE, CONTROL PATTERN SELECTION (35) - HYDRAULIC SYSTEMS

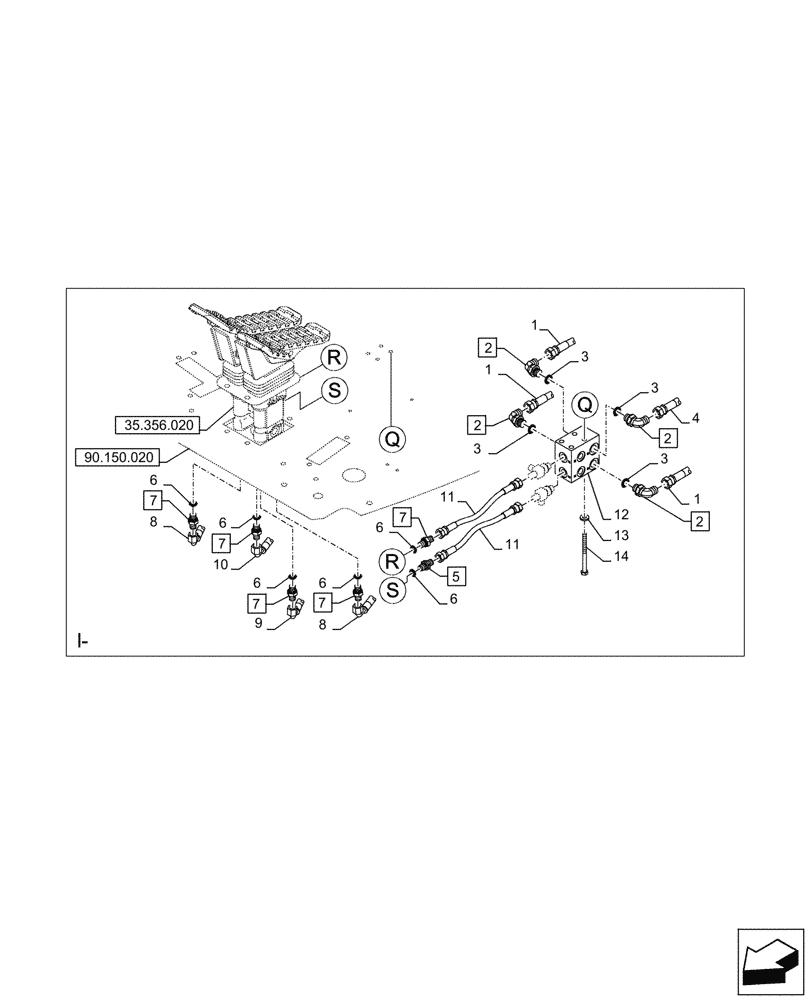

Схема запчастей Case CX145D SR LC W/BLADE - (35.355.140) - VAR - 461558 - JOYSTICK, HYDRAULIC LINE, CONTROL VALVE, CONTROL PATTERN SELECTION (35) - HYDRAULIC SYSTEMS
90.150.020
7
6
7
3
2
4
6
2
9
7
11
8
6
1
1
3
3
14
1
12
6
6
5
11
10
2
3
8
7
2
13
7
6
35.356.020
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ2272

HOSE ASSY.

9mm ID x 1550mm, from Remote Control Valve to Manifold

3шт.

2

KHJ28590

ELBOW

ASSY, G3/8" x G3/8", Incl 3 (Qty 1)

4шт.

3

150031A1

O-RING,10mm ID x 24mm OD

4шт.

4

KHJ2100

FLEXIBLE HOSE

9mm ID x 1500mm, from Remote Control Valve to Manifold

1шт.

5

161841A1

HYD CONNECTOR

ASSY, G1/4" x G1/4", Incl 6 (Qty 1)

1шт.

6

150960A1

O-RING,10.8mm ID x 2.4mm Width

6шт.

7

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, G1/4" x G1/4", Incl 6 (Qty 1)

5шт.

8

KHJ38730

HYDRAULIC HOSE

6m ID x 2450mm, from Remote Control Valve to Manifold

2шт.

9

KHJ38770

HYDRAULIC HOSE

6mm ID x 2050mm, from Remote Control Valve to Manifold

1шт.

10

KHJ38740

HYDRAULIC HOSE

6mm ID x 1900mm, from Remote Control Valve to Manifold

1шт.

11

KHJ36110

HOSE

6mm ID x 260mm

2шт.

12

KRJ5903

MANIFOLD

1шт.

13

153081A1

WASHER

4шт.

14

828-8100

BOLT,Hex, M8 x 1.25 x 100mm, Cl 10.9

4шт.
