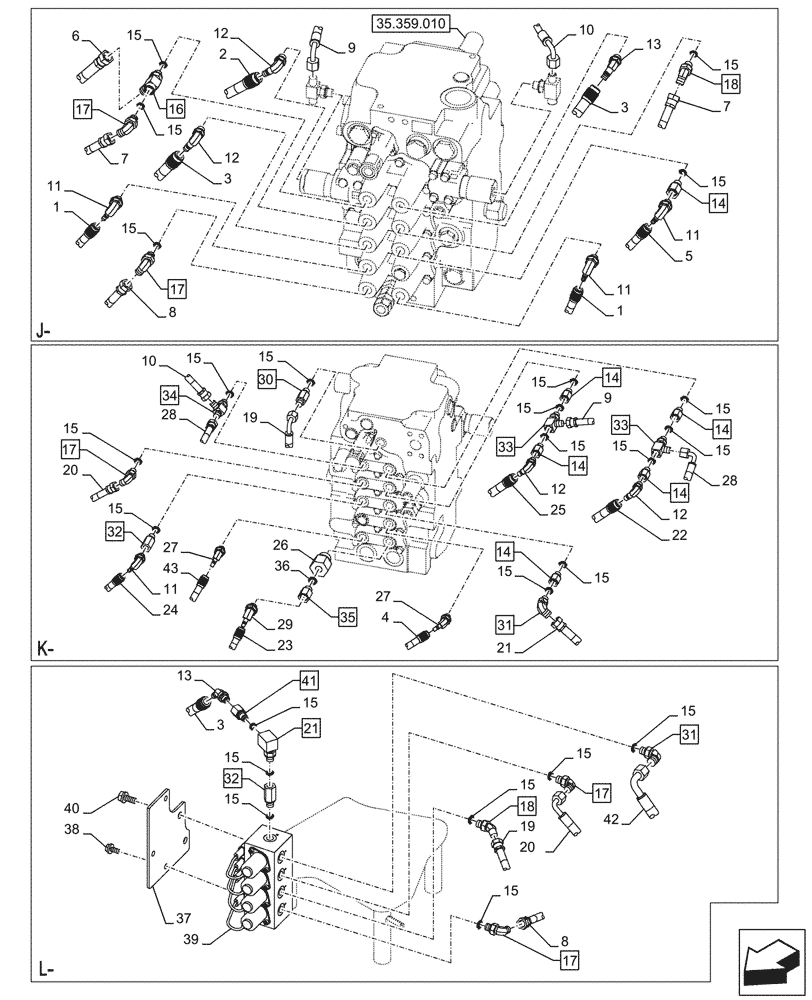

Запчасти Case CX145D SR LC W/BLADE (35.355.110) - JOYSTICK, HYDRAULIC LINE, CONTROL VALVE (35) - HYDRAULIC SYSTEMS

1

KHJ38730

HYDRAULIC HOSE

6mm ID x 2450mm, from Remote Control Valve to Control Valve

1шт.

2

KHJ38600

HYDRAULIC HOSE

9mm ID x 2650mm

1шт.

3

KHJ38120

HYDRAULIC HOSE

9mm ID x 2650mm

2шт.

4

KHJ38770

HYDRAULIC HOSE

6mm ID x 2050mm, from Remote Control Valve to Control Valve

1шт.

5

KHJ38170

HYDRAULIC HOSE

6mm ID x 2500mm

1шт.

6

KHJ38830

HYDRAULIC HOSE

6mm ID x 2600mm

1шт.

7

KHJ2190

HOSE

6mm ID x 420mm

1шт.

8

KHJ2240

HOSE

6mm ID x 450mm

1шт.

9

KHJ37220

HOSE

6mm ID x 450mm

1шт.

10

KHJ2179

HOSE

6mm ID x 450mm

1шт.

11

KHJ38230

ELBOW

4шт.

12

KHJ38620

ELBOW

4шт.

13

KHJ38890

ELBOW

2шт.

14

KHJ13640

STUD

ASSY, G1/4", Incl 15 (Qty 1)

6шт.

15

150960A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

16

KHJ11560

TEE

ASSY, G1/4" x G3/8" x G1/4", Incl 15 (Qty 1)

1шт.

17

KHJ28580

ELBOW

ASSY, G1/4"x G1/4", Incl 15 (Qty 1)

5шт.

18

KHJ28630

ELBOW

ASSY, G1/4"x G1/4", Incl 15 (Qty 1)

2шт.

19

KHJ28410

HYDRAULIC HOSE

6mm ID 750mm

1шт.

20

KHJ2085

HOSE

6mm ID x 600mm

1шт.

21

KHJ0719

ELBOW

ASSY, G1/4"x G1/4", Incl 15 (Qty 1)

3шт.

22

KHJ38850

HYDRAULIC HOSE

9mm ID x 2200mm, from Cushion Valve to Control Valve

1шт.

23

KHJ38860

HYDRAULIC HOSE

6mm ID x 1900mm, from Cushion Valvel to Control Valve

1шт.

24

KHJ38870

HYDRAULIC HOSE

6mm ID x 2050mm, from Cushion Valve to Control Valve

1шт.

25

KHJ38840

HYDRAULIC HOSE

9mm ID x 2100,mm, from Cushion Valve to Control Valve

1шт.

26

168733A1

ADAPTER

1шт.

27

KHJ38260

ELBOW

2шт.

28

KHJ20460

FLEXIBLE HOSE

6mm ID x 300mm

1шт.

29

KHJ38280

ELBOW

1шт.

30

162554A1

FITTING

ASSY, G1/4"x G1/4", Incl 15 (Qty 1)

1шт.

31

KHJ28710

ELBOW

ASSY, G1/4"x G3/8", Incl 15 (Qty 1)

2шт.

32

162525A1

STUD

ASSY, G1/4"x G1/4", Incl 15 (Qty 1)

2шт.

33

KHJ2773

TEE

ASSY, G1/4", Incl 15 (Qty 1)

2шт.

34

159497A1

TEE

ASSY, G1/4"x G1/4" x G1*4", Incl 15 (Qty 1)

1шт.

35

KHJ13790

STUD

ASSY, G3/8" x G3/8", Incl 36

1шт.

36

150031A1

O-RING,10mm ID x 24mm OD

1шт.

37

KMJ23020

BRACKET

1шт.

38

166052A1

BOLT

1шт.

39

KHJ36540

VALVE

1шт.

40

166350A1

BOLT

3шт.

41

KHJ25100

STUD

ASSY, G1/4", Incl 15 (Qty 1)

1шт.

42

KHJ33790

HOSE

9mm ID x 800mm

1шт.

43

KHJ38740

HYDRAULIC HOSE

6mm ID x 1900mm, from Remote Control Valve to Control Valve

1шт.
