(35.355.100) - JOYSTICK, HYDRAULIC LINE, CONTROL VALVE

Запчасти Case CX145D SR LC W/BLADE (35.355.100) - JOYSTICK, HYDRAULIC LINE, CONTROL VALVE (35) - HYDRAULIC SYSTEMS

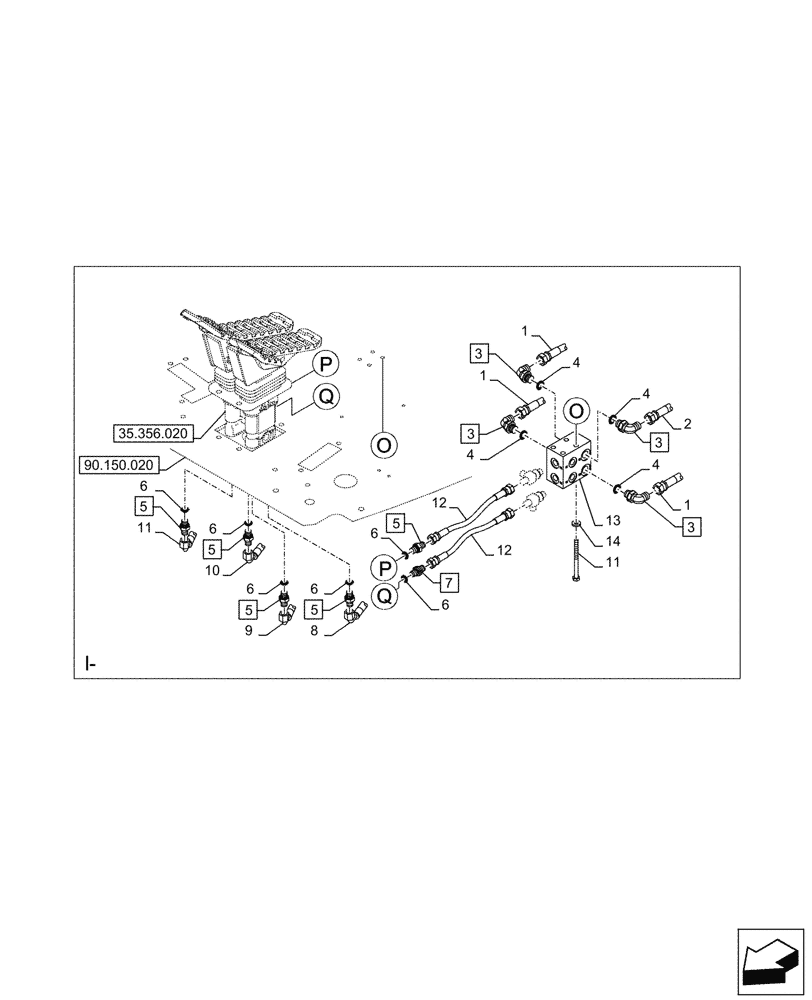

Схема запчастей Case CX145D SR LC W/BLADE - (35.355.100) - JOYSTICK, HYDRAULIC LINE, CONTROL VALVE (35) - HYDRAULIC SYSTEMS
90.150.020
4
6
4
5
4
1
11
1
6
6
12
5
3
12
1
6
4
14
8
7
6
13
2
6
5
11
3
9
3
10
5
5
3
35.356.020
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ2272

HOSE ASSY.

9mm ID x 1550mm, from Remote Control Valve to Manifold

2шт.

2

KHJ2100

FLEXIBLE HOSE

9mm ID x 1500mm, from Remote Control Valve to Manifold

1шт.

3

KHJ28590

ELBOW

ASSY, G3/8" x G3/8", Incl 4

4шт.

4

150031A1

O-RING,10mm ID x 24mm OD

4шт.

5

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, G1/4" x G1/4", Incl 6 (Qty 1)

5шт.

6

150960A1

O-RING,10.8mm ID x 2.4mm Width

6шт.

7

161841A1

HYD CONNECTOR

ASSY, G1/4" x G1/4", Incl 6 (Qty 1)

1шт.

8

KHJ38730

HYDRAULIC HOSE

6mm ID x 2450mm, from Remote Control Valve to Control Valve

1шт.

9

KHJ38770

HYDRAULIC HOSE

6mm ID x 2050mm, from Remote Control Valve to Control Valve

1шт.

10

KHJ38740

HYDRAULIC HOSE

6mm ID x 1900mm, from Remote Control Valve to Control Valve

1шт.

11

828-8100

BOLT,Hex, M8 x 1.25 x 100mm, Cl 10.9

M8 x 100mm

4шт.

12

KHJ36110

HOSE

6mm ID x 260mm

2шт.

13

KRJ5903

MANIFOLD

1шт.

14

153081A1

WASHER

M8

4шт.
