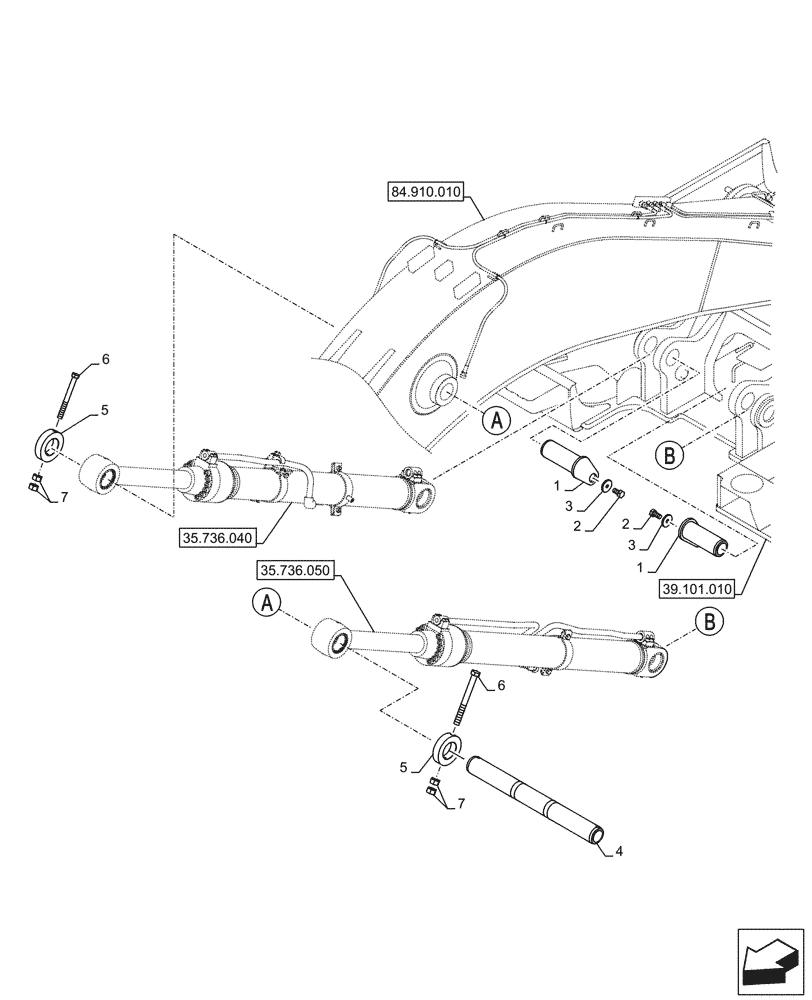

Запчасти Case CX145D SR LC (84.910.020) - VAR - 481858 - BOOM, CYLINDER, PIN (84) - BOOMS, DIPPERS & BUCKETS

1

KNV13450

PIN

2шт.

2

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

M12 x 25mm

2шт.

3

157141A1

WASHER

M12

2шт.

4

169079A1

PIN

1шт.

5

KNV1247

RING, LOCKING

2шт.

6

514-1038

BOLT,Hex, M16 x 1.5 x 160mm, Cl 10.9

M16 x 1.5 x 160mm

2шт.

7

829-13416

NUT,M16 x 1.5, Cl 10

M16 x 1.5

4шт.
