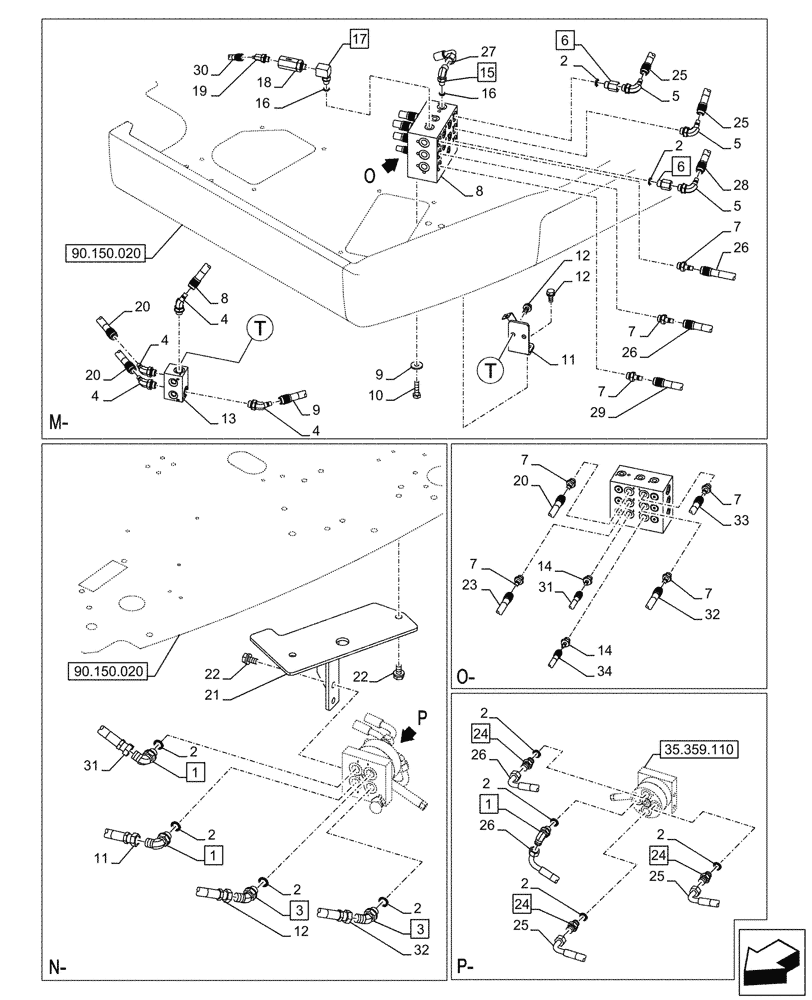

Запчасти Case CX145D SR LC (35.355.160) - VAR - 461558 - JOYSTICK, HYDRAULIC LINE, CONTROL VALVE, CONTROL PATTERN SELECTION (35) - HYDRAULIC SYSTEMS
№
Артикул
Название
Примечание
Количество
1
KHJ28590
ELBOW
ASSY, G3/8" x G3/8", Incl 2 (Qty 1)
3шт.
2
150031A1
O-RING,10mm ID x 24mm OD
10шт.
3
KHJ28640
ELBOW
ASSY, G3/8" x G3/8", Incl 2 (Qty 1)
2шт.
4
KHJ38270
ELBOW
5шт.
5
KHJ38240
ELBOW
3шт.
6
KHJ13790
STUD
ASSY, G3/8" x G3/8", Incl 2 (Qty 1)
2шт.
7
KHJ38210
ADAPTER
7шт.
8
KMJ19820
VALVE
1шт.
9
151977A1
WASHER
3шт.
11
KMJ22960
BRACKET
1шт.
12
166052A1
BOLT
4шт.
13
KMJ21080
MANIFOLD
1шт.
14
KHJ38220
ADAPTER
2шт.
15
KHJ28710
ELBOW
ASSY, G1/4" x G3/8", Incl 16 (Qty 1)
1шт.
16
150960A1
O-RING,10.8mm ID x 2.4mm Width
2шт.
17
KHJ0719
ELBOW
ASSY, G1/4" x G1/4", Incl 16 (Qty 1)
1шт.
18
KHJ10790
FILTER SCREEN
1шт.
19
KHJ38260
ELBOW
1шт.
20
KHJ38120
HYDRAULIC HOSE
9mm ID x 2650mm, from Valve Selector to Control Valve
2шт.
21
KMJ22720
BRACKET
1шт.
22
166351A1
BOLT,Sems, M10 x 20mm
4шт.
23
KHJ38840
HYDRAULIC HOSE
9mm ID x 2100mm, from Valve Cushion to Control Valve
1шт.
24
152128A1
HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT
ASSY, G3/8" x G3/8", Incl 2 (Qty 1)
3шт.
25
KHJ38910
HYDRAULIC HOSE
9mm ID x 400mm
2шт.
26
KHJ38920
HYDRAULIC HOSE
9mm ID x 650mm
2шт.
27
KHJ38600
HYDRAULIC HOSE
9mm ID x 2650mm, from Valve Cushion to Control Valve
1шт.
28
KHJ38570
HYDRAULIC HOSE
9mm ID x 1800mm, from Remote Control Valve to Cushion Valve
1шт.
29
KHJ38540
HYDRAULIC HOSE
9mm ID x 2050mm, from Remote Control Valve to Cushion Valve
1шт.
30
KHJ38860
HYDRAULIC HOSE
6mm ID x 1900mm, from Valve Cushion to Control Valve
1шт.
31
KHJ38170
HYDRAULIC HOSE
6mm ID 2500mm , from Valve Cushion to Control Valve
1шт.
32
KHJ38830
HYDRAULIC HOSE
9mm ID x 2600mm, from Valve Cushion to Control Valve
1шт.
33
KHJ38850
HYDRAULIC HOSE
9mm ID x 2200mm, from Cushion Valve to Control Valve
1шт.
34
KHJ38870
HYDRAULIC HOSE
6mm ID x 2050mm, from Valve Cushion to Control Valve
1шт.
Выбрано товаров: 34
